Products Categories
Featured Products
01

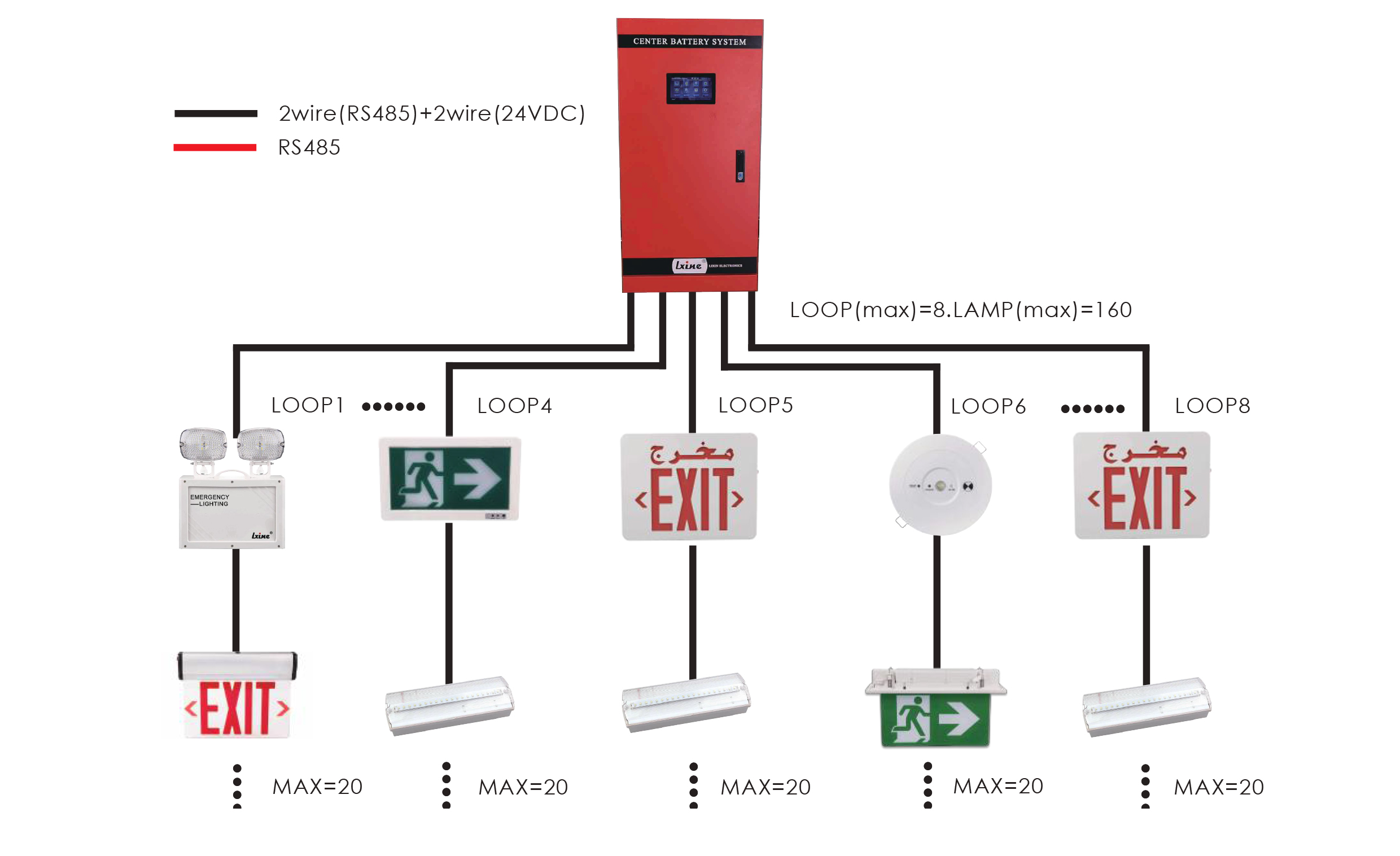

CENTRAL BATTERY SYSTEM EXAMPLE1

2023-09-13
Parts Description Features The LX-CB24 series consists of 3 models of Addressable central battery systems for emergency illumination. They are produced in accordance with the current North American norms UL924.  Depending on the model, they contain 4 to 8 illumination circuits (zones). Each illumination circuit (zone) can support up to 20 points(addressed luminaries)that can be programmed individually to operate in maintained or non-maintained mode. Each point provides information about its lamp and connection status to the panel. A 24VDC voltage is provided by internal power supply unit to the illumination circuits,when the mains power is active. In case of mains power interruption,the system is provided with 24VDC from the batteries.
view detail
01

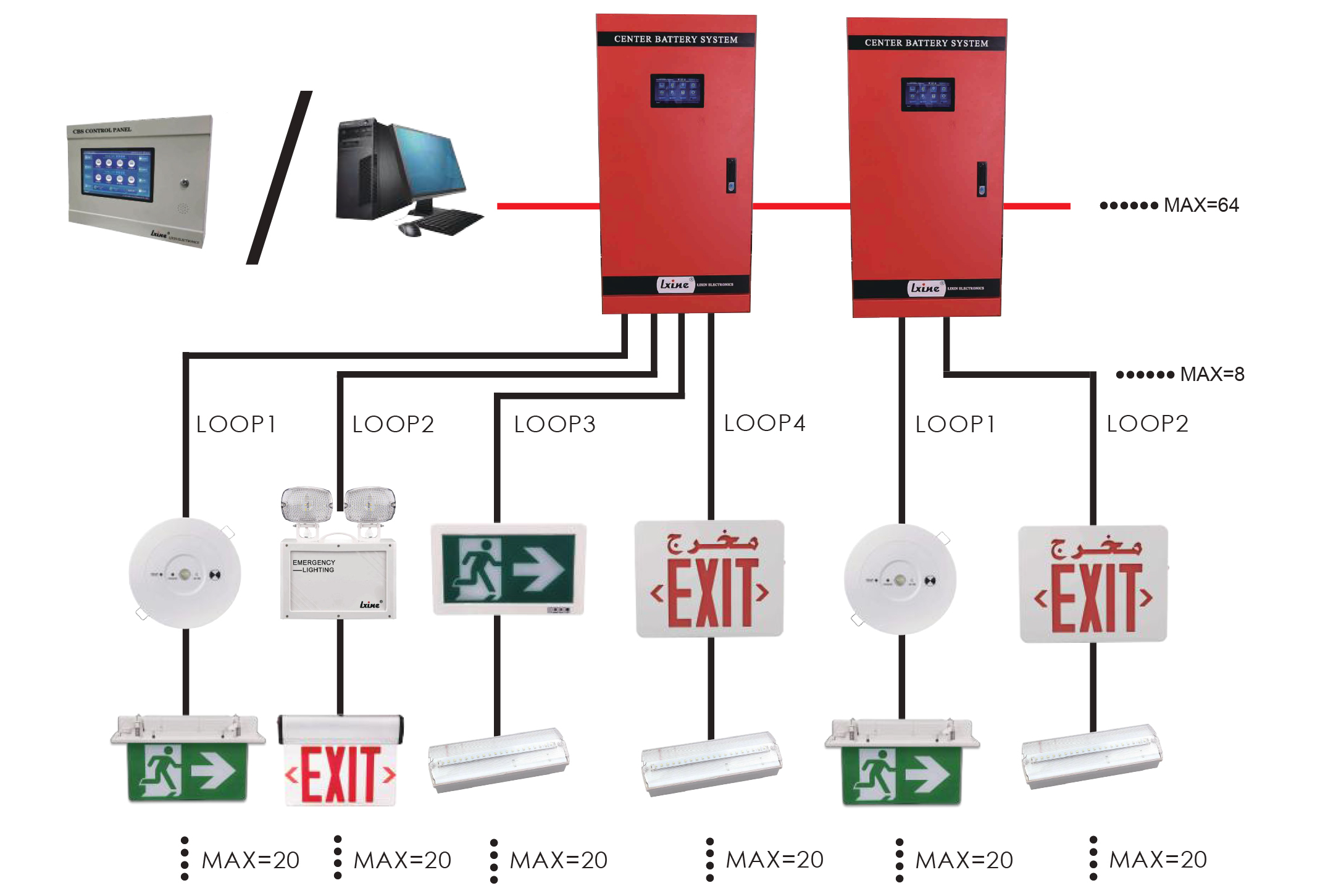

CENTRAL BATTERY SYSTEM EXAMPLE2

2023-09-13
Parts Description Features The LX-CB24 series consists of 3 models of Addressable central battery systems for emergency illumination. They are produced in accordance with the current North American norms UL924.  Depending on the model, they contain 4 to 8 illumination circuits (zones). Each illumination circuit (zone) can support up to 20 points(addressed luminaries)that can be programmed individually to operate in maintained or non-maintained mode. Each point provides information about its lamp and connection status to the panel. A 24VDC voltage is provided by internal power supply unit to the illumination circuits,when the mains power is active. In case of mains power interruption,the system is provided with 24VDC from the batteries.
view detail
01

CENTRAL BATTERY

2023-09-13

1. The Central Battery System has a 7-inch Android screen, offering excellent man-machine interaction experience.

2. Integrated ModBUS protocol to communicate with luminaires,a CBS control panel or a Computer.

3. Controlled by sound and light, the Central Battery System automatically conducts real-time and efficient testing and inspection of operating states and faults of emergency lights. Events will be recorded and history can be retrieved.

4. Built-in clock and calendar,system and luminaires status display at any time.

5. Timed automatic testing, which can test lights emergency functions according to the set time period.

6. Timed battery maintenance, which can charge and discharge batteries according to the set time period so as to prolong the battery life.

7. Connection of up to 4 phase detection interfaces.

8. Four system state output relays: Fault relay,Fire relay,Operational relay,Mains fault relay.

9. The emergency state will be triggered when external fire signals are received by the Central Battery System.

view detail
01

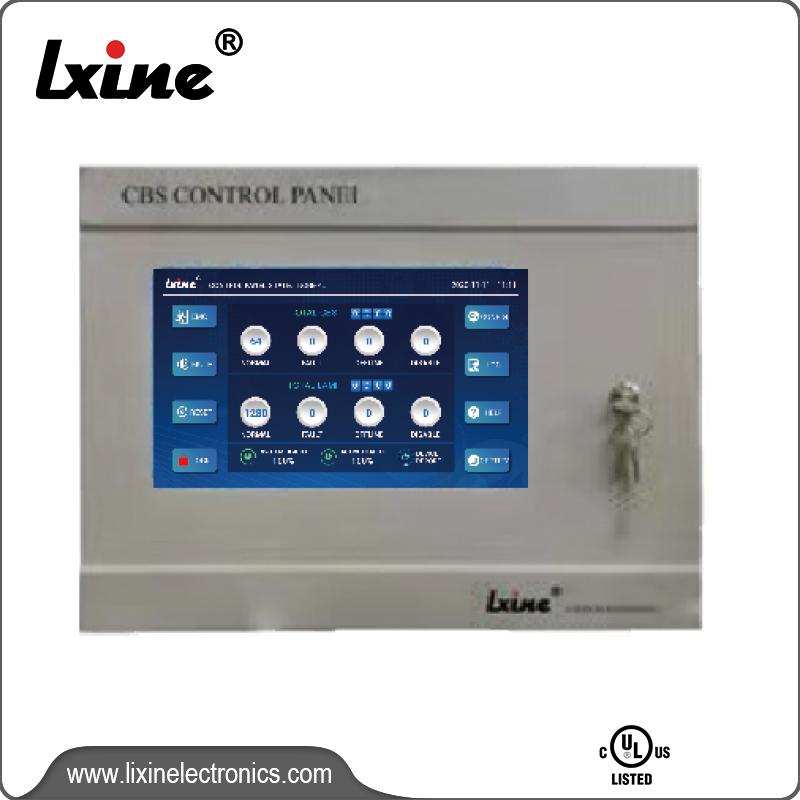

CONTRAL PANEL

2023-09-13

1. The control panel has a 10-inch Android screen, offering excellent man-machine interaction experience.

2.Non- olatile  memory to store all events and tests results for   at   least  2  years.

3.Registration of system configuration parameters and events on an SD card.

4. Integrated ModBUS protocol to communicate with Central Battery Systems, Up to 64 Central Battery Systems can be connected simultaneously.

5. Built-in clock and calendar,system and luminaires status display at any time.

6. Three system state output relays:Fault relay,Fire relay,Operational relay.

7. The emergency state will be triggered when external fire signals are received by the control Panel.

view detail
