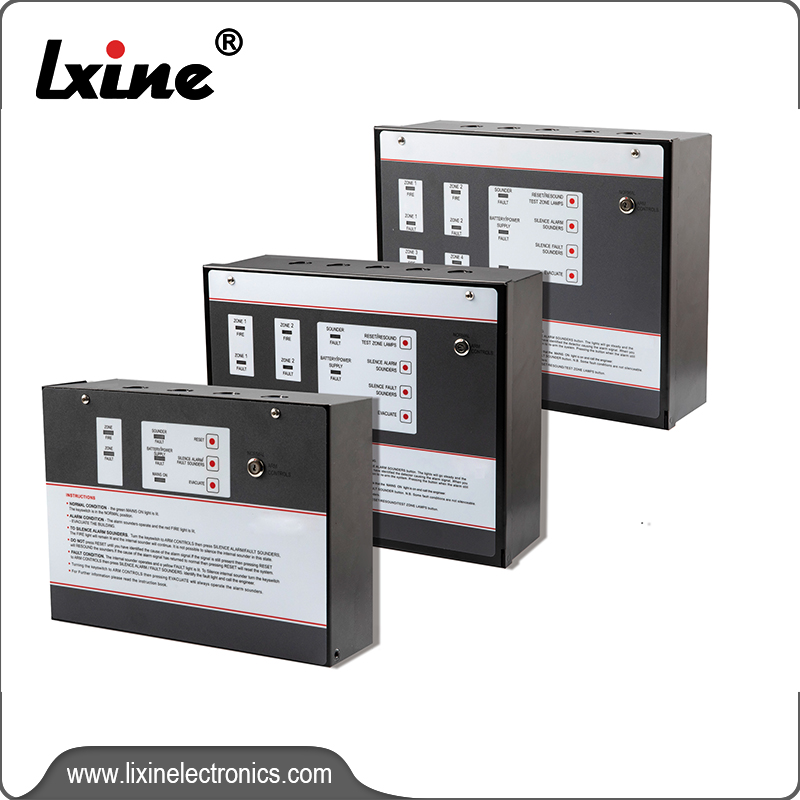

CONVENTIONAL FIRE ALARM CONTROL PANELS LX-EFC802
2021-07-22
Model #: LX-EFC802-1 1 zone —————LX-EFC802-2 2 zone —————LX-EFC802-4 4 zone • Input Voltage: 220V - 230VAC 50/60Hz • Battery: Lead-acid 1.4AH/12V * 2pcs • Built-in battery charger • External pushbuttons keyswitch activated • Internal power supply 24VDC • Auxiliary output 24VDC • External LED indicators • Mains supply monitored for failure • Battery charger monitored for failure • Batteries monitored for disconnection/failure • Automatic loading and testing of battery • Line fault monitored for open circuit • Line fault monitored for short circuit • 20pcs max. number of smoke/heat detectors per zone • No limit numbers of manual call points per zone • End of line resistor(supplied) for sounder circuit • Evacuate (alarm resound) • Operating temperature -10℃ to +40℃ • Humidity 5% to 95%RH(non-condensing) • Color: Black or White • Panel size: 273*200*77mm(1zone) / 310*250*96mm(2&4zone)
view
detail
01

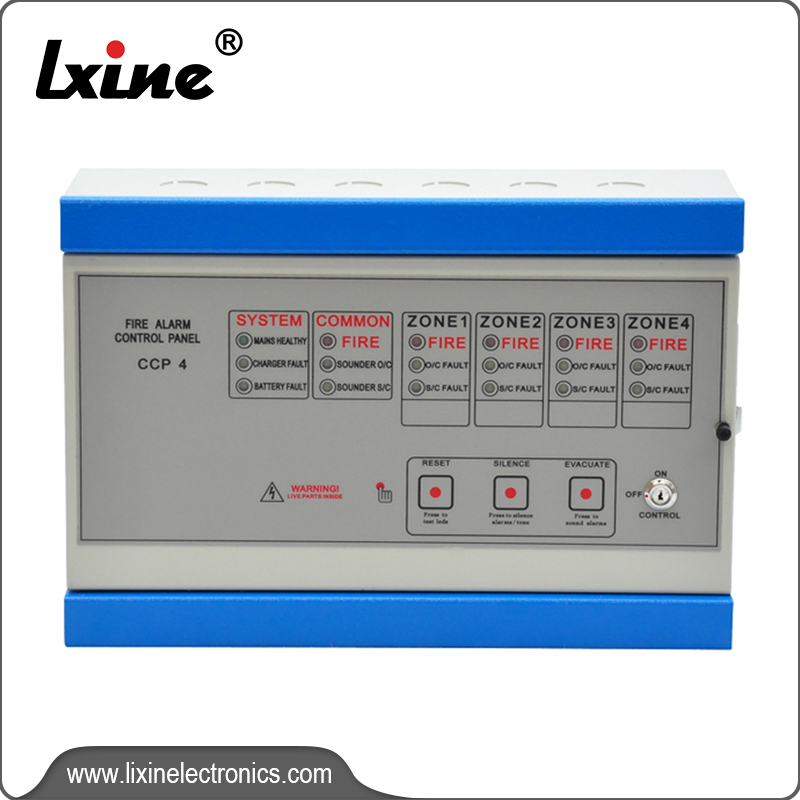

Fire alarm control panel LX-801-4
2021-04-28
CONVENTIONAL FIRE ALARM PANEL,4 ZONES
This control panel can be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system to detect and warn people
through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated
automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure,
battery fault or disconnected,alarm output wiring fault.
*Input voltage:240VAC+/-10% 50/60HZ
*Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply
*Charging voltage protection: 1.6Ah glass fuse
*Sounder output: 24V nominal EOL 10K resistor
* Auxiliary contacts: 30VDC, 1A max. NC/NO
*Main supply protection: glass fuse
*Sounder protection: 2 x 500mA glass fuse
*Reverse battery protection: charger glass fuse
*Zone EOL: 5.6K resistor
*Color: ivory,blue,black
*Zoned visual red alarm and yellow trouble indicators
*Continuous signal during alarm
*Low / no power and battery detection
*Automatic loading and testing of battery
*Battery lead reversal protection
*Evacuate (alarm resound)
*LED test
view
detail
01

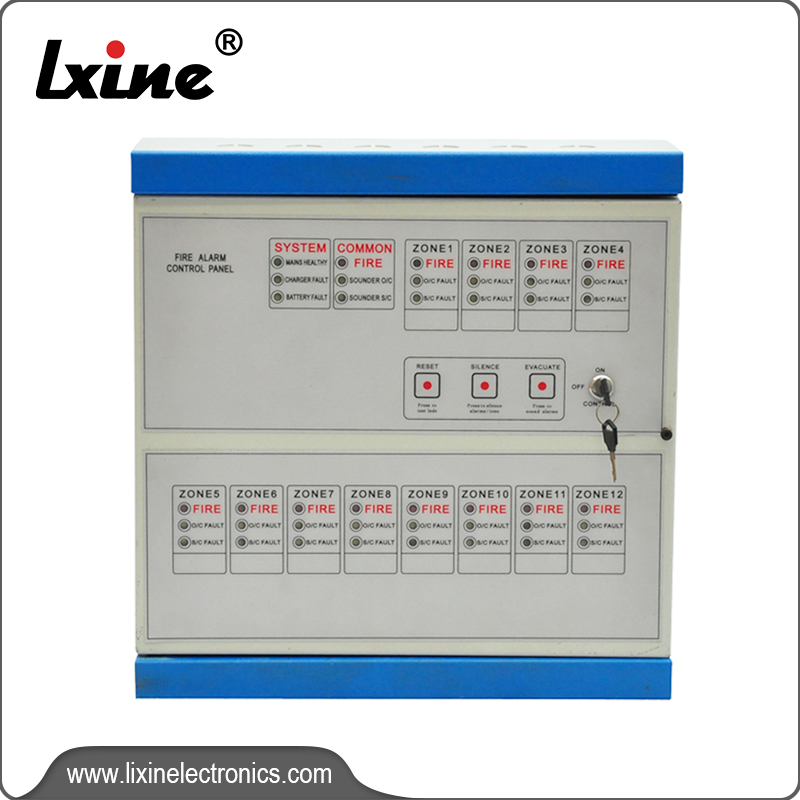

Fire alarm control panel 12 zones LX-801-12
2021-04-28
This control panel can be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system to detect and warn people
through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated
automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure,
battery fault or disconnected,alarm output wiring fault.
*Input voltage:240VAC+/-10% 50/60HZ
*Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply
*Charging voltage protection: 1.6Ah glass fuse
*Sounder output: 24V nominal EOL 10K resistor
* Auxiliary contacts: 30VDC, 1A max. NC/NO
*Main supply protection: glass fuse
*Sounder protection: 2 x 500mA glass fuse
*Reverse battery protection: charger glass fuse
*Zone EOL: 5.6K resistor
*Color: ivory,blue,black
*Zoned visual red alarm and yellow trouble indicators
*Continuous signal during alarm
*Low / no power and battery detection
*Automatic loading and testing of battery
*Battery lead reversal protection
*Evacuate (alarm resound)
*LED test
view
detail
01

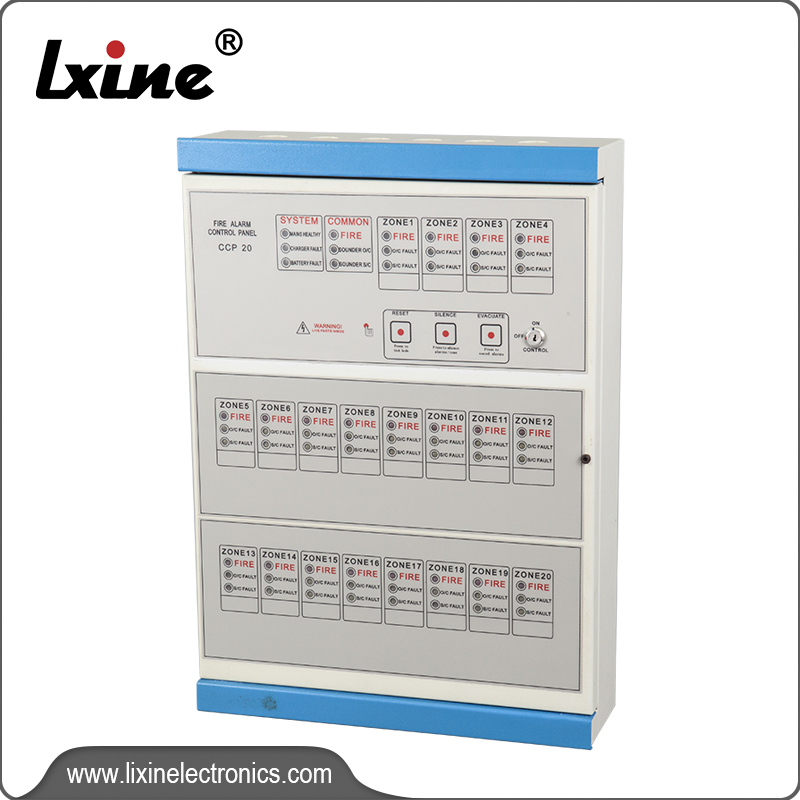

20 Zones Fire alarm control panel with backup battery LX-...
2021-04-28
This control panelcan be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system to detect and warn people
through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated
automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure,
battery fault or disconnected,alarm output wiring fault.
*Input voltage:240VAC+/-10% 50/60HZ
*Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply
*Charging voltage protection: 1.6Ah glass fuse
*Sounder output: 24V nominal EOL 10K resistor
* Auxiliary contacts: 30VDC, 1A max. NC/NO
*Main supply protection: glass fuse
*Sounder protection: 2 x 500mA glass fuse
*Reverse battery protection: charger glass fuse
*Zone EOL: 5.6K resistor
*Color: ivory,blue,black
*Zoned visual red alarm and yellow trouble indicators
*Continuous signal during alarm
*Low / no power and battery detection
*Automatic loading and testing of battery
*Battery lead reversal protection
*Evacuate (alarm resound)
*LED test
view
detail
01

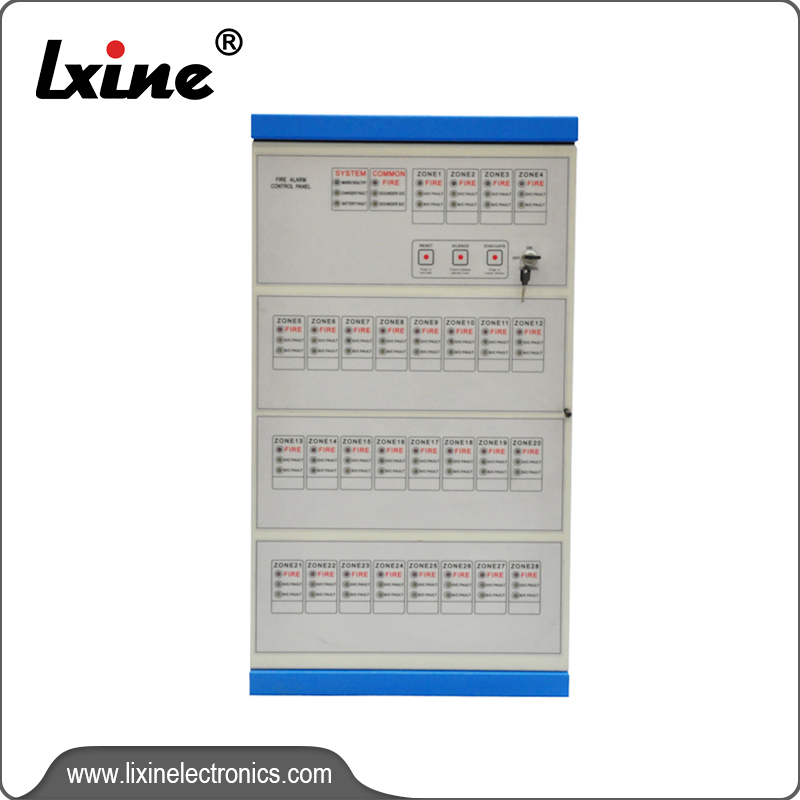

28 Zones fire alarm control panel with backup battery LX-...
2021-07-22
This control panelcan be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system to detect and warn people
through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated
automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure,
battery fault or disconnected,alarm output wiring fault.
*Input voltage:240VAC+/-10% 50/60HZ
*Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply
*Charging voltage protection: 1.6Ah glass fuse
*Sounder output: 24V nominal EOL 10K resistor
* Auxiliary contacts: 30VDC, 1A max. NC/NO
*Main supply protection: glass fuse
*Sounder protection: 2 x 500mA glass fuse
*Reverse battery protection: charger glass fuse
*Zone EOL: 5.6K resistor
*Color: ivory,blue,black
*Zoned visual red alarm and yellow trouble indicators
*Continuous signal during alarm
*Low / no power and battery detection
*Automatic loading and testing of battery
*Battery lead reversal protection
*Evacuate (alarm resound)
*LED test
