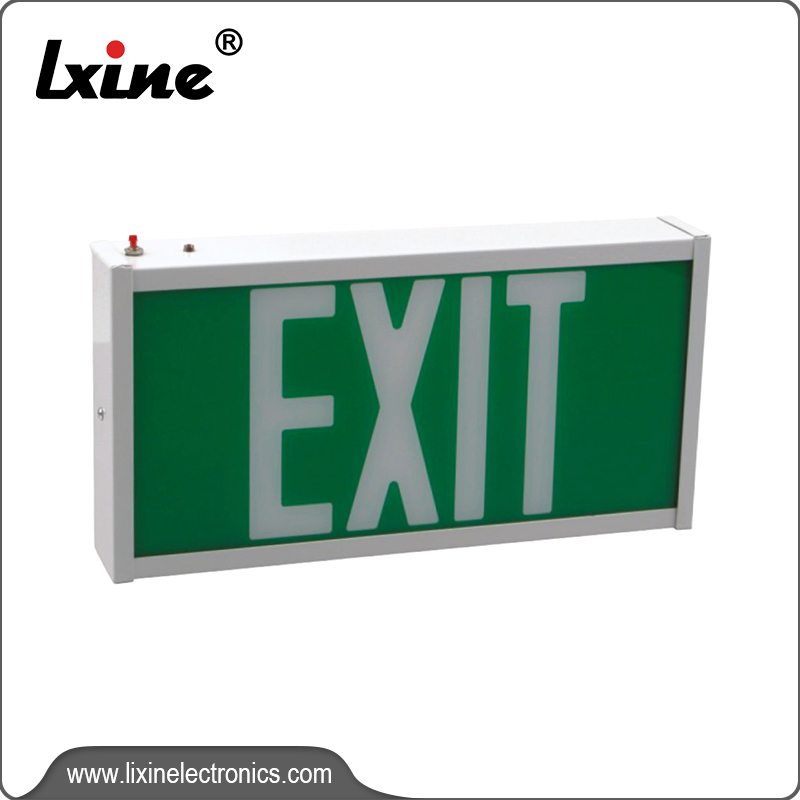

New exit sign led emergency light LX-712AT
2021-04-30
Emergency exit sign light with self-test function
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
The biggest advantage is that this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
The other advantage is that dual color LED lamps indicate different status, details as below:
Green color ON / Ready
Blinking: Testing
Red color (Service Alert),Service Alert LED Code (Red color LED lamp indicator)
| ● | One blink ON/pause (4 seconds ) | Battery is not connected |
| ●● | Two blink ON/pause (4 seconds ) | battery voltage is too low(<4.2V) |
| ●●● | Three blink ON/pause(4 seconds ) | Charger board fault |
| ●●●● | Four blink ON/pause(4 seconds ) | Transformer fault |
| ●●●●●●● | Seven blink ON/pause(4 seconds ) | EXIT LED strip fault |
*Aluminum alloy housing with acrylic panel,single configuration
*20PCS LEDs inside housing with white color light
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection
01

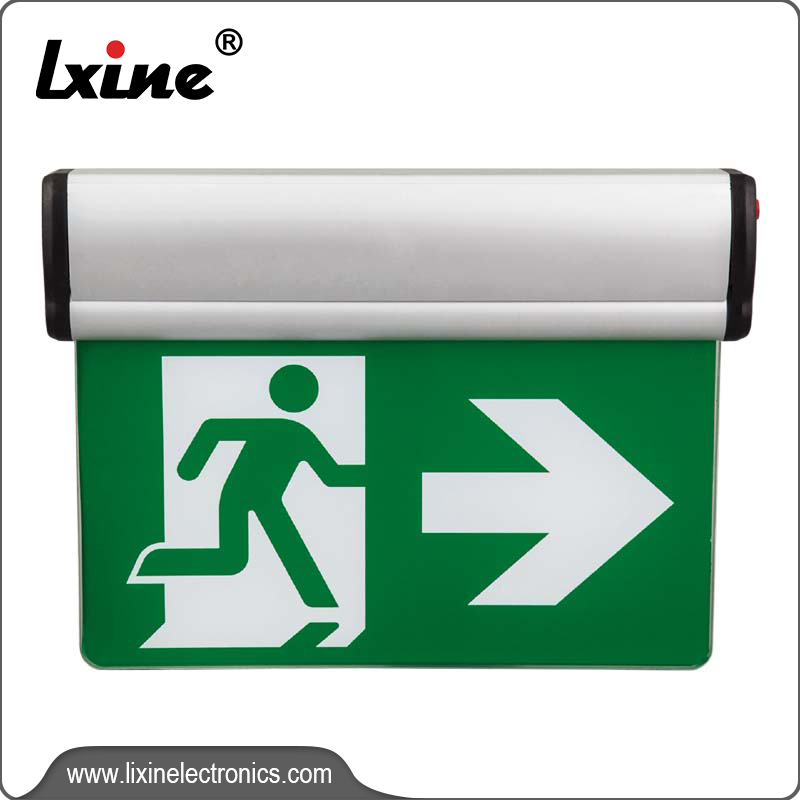

220V-240V AC exit sign emergency lights LX-709AT
2021-04-30
Indoor use emergency exit sign light
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
*14PCS SMD2835 LEDs inside housing with white color light
Advantage: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Dual color LED lamp indicator shows the following status:
⑴ Green color ON / Ready
Blinking: Testing
⑵ Red color (Service Alert),Service Alert LED Code (Red color LED lamp indicator)
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection
*Ceiling mounting,back mounting and side mounting availabe
view
detail
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
*14PCS SMD2835 LEDs inside housing with white color light
Advantage: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Dual color LED lamp indicator shows the following status:
⑴ Green color ON / Ready
Blinking: Testing
⑵ Red color (Service Alert),Service Alert LED Code (Red color LED lamp indicator)
| ● | One blink ON/pause (4 seconds ) | Battery is not connected |
| ●● | Two blink ON/pause (4 seconds ) | battery voltage is too low(<4.2V) |
| ●●● | Three blink ON/pause(4 seconds ) | Charger board fault |
| ●●●● | Four blink ON/pause(4 seconds ) | Transformer fault |
| ●●●●●●● | Seven blink ON/pause(4 seconds ) | EXIT LED strip fault |
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection
*Ceiling mounting,back mounting and side mounting availabe
01

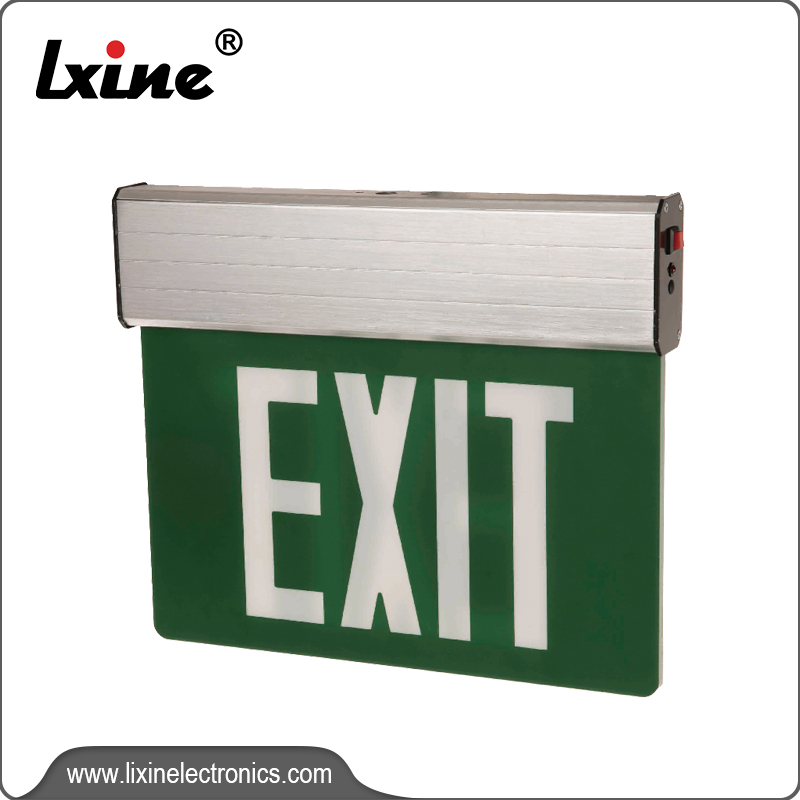

Rechargeable exit sign emergency lights LX-740GAT
2021-04-30
LED Emergency exit sign light
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
*Aluminum alloy shell with PMMA panel,11 kinds of panel pictograms optional:EXIT,running man,running man with right arrow,running man with up arrow,running man with down arrow,EXIT with running man and right arrow,EXIT with running man and up arrow, EXIT with running man and down arrow,EXIT in english and abric with running man and right arrow,EXIT in english and abric with running man and up arrow,EXIT in english and abric with running man and down arrow
*12PCS F5 LEDs inside shell with white color light
The biggest advantage is that this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection
*There are 3 kinds of installation method:
Ceiling mounting,back mounting, side mounting
view
detail
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
*Aluminum alloy shell with PMMA panel,11 kinds of panel pictograms optional:EXIT,running man,running man with right arrow,running man with up arrow,running man with down arrow,EXIT with running man and right arrow,EXIT with running man and up arrow, EXIT with running man and down arrow,EXIT in english and abric with running man and right arrow,EXIT in english and abric with running man and up arrow,EXIT in english and abric with running man and down arrow
*12PCS F5 LEDs inside shell with white color light
The biggest advantage is that this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection
*There are 3 kinds of installation method:
Ceiling mounting,back mounting, side mounting
01
CE listed emergency exit lighting with Self-diagnositc f...
2021-04-30
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
*14PCS SMD2835 LEDs inside housing with white color light
Advantage: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Dual color LED lamp indicator shows the following status:
⑴ Green color ON / Ready
Blinking: Testing
⑵ Red color (Service Alert),Service Alert LED Code (Red color LED lamp indicator)
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides min. 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time after 3 hours discharge, battery overcharge and discharge protection
view
detail
*Rated Power:3W
*14PCS SMD2835 LEDs inside housing with white color light
Advantage: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Dual color LED lamp indicator shows the following status:
⑴ Green color ON / Ready
Blinking: Testing
⑵ Red color (Service Alert),Service Alert LED Code (Red color LED lamp indicator)
| ● | One blink ON/pause (4 seconds ) | Battery is not connected |
| ●● | Two blink ON/pause (4 seconds ) | battery voltage istoolow(<4.2V) |
| ●●● | Three blink ON/pause(4 seconds ) | Charger board fault |
| ●●●● | Four blink ON/pause(4 seconds ) | Transformer fault |
| ●●●●●●● | Seven blink ON/pause(4 seconds ) | EXIT LED strip fault |
*Extra test button, press for manual test
*Built-in NI-MH rechargeable battery provides min. 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time after 3 hours discharge, battery overcharge and discharge protection
01
Exit sign emergency lights with SELF-DIAGNOSTIC function ...
2021-07-09
*Input Voltage:AC220-240V 50/60HZ
*Rated Power:3W
*14PCS SMD2835 LEDs inside housing with white color light
*Extra test button, press for manual test
*4 kinds of graphic optional:running man,running man with right arrow,running man with down arrow,running man with left arrow
Advantage: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Built-in NI-MH rechargeable battery provides min. 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time after 3 hours discharge, battery overcharge and discharge protection
*CE approval
*Wall surface mounting and wall flush mounting available
view
detail
*Rated Power:3W
*14PCS SMD2835 LEDs inside housing with white color light
*Extra test button, press for manual test
*4 kinds of graphic optional:running man,running man with right arrow,running man with down arrow,running man with left arrow
Advantage: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:
As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.
Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.
*Built-in NI-MH rechargeable battery provides min. 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time after 3 hours discharge, battery overcharge and discharge protection
*CE approval
*Wall surface mounting and wall flush mounting available
