3100 MIRCOM style–5156
METAL FIRE ALARM STATION MS-700 SERIES Features
• Single Stage or Dual Stage models
• Key resettable
• Terminal connectors
• Gold plated SPST contacts
• Optional auxiliary contacts
• High-gloss red enamel fifi nish
• Plastic breakrod
• Mounts on standard single gang box, Mircom’s BB-700 surface metal backbox or BB-700WP weather proof backbox
• Available in English and Bilingual versions
Description
The MS-700 Series Manual Stations are available in many different confifi gurations as either single or dual-action devices.

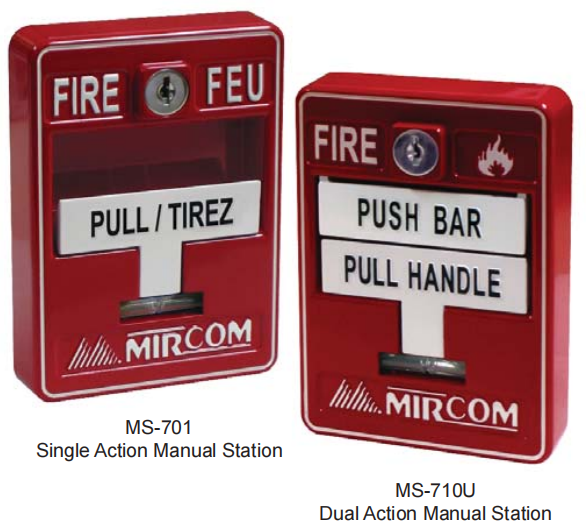

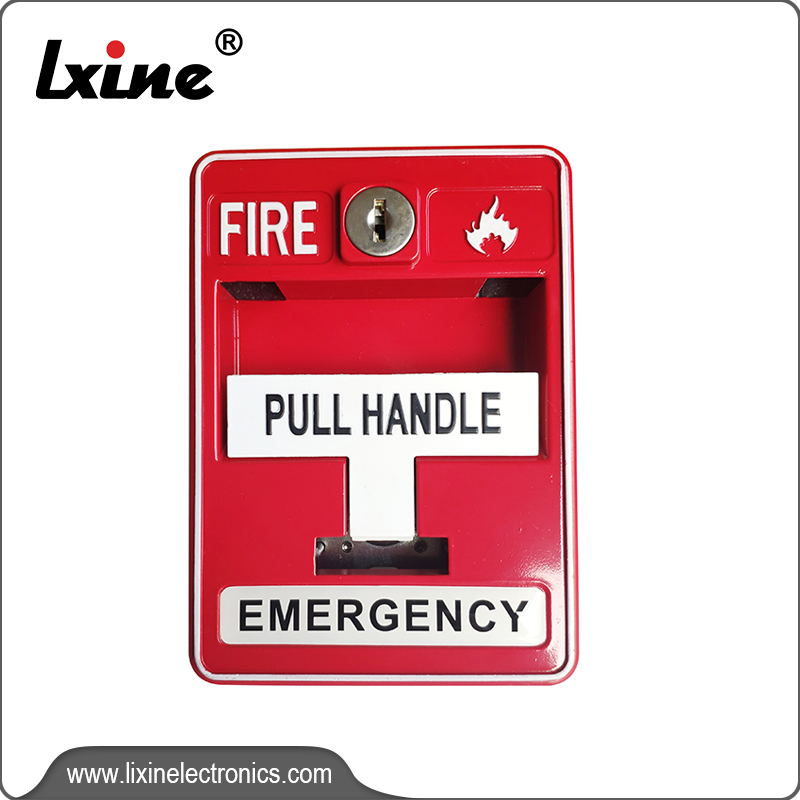

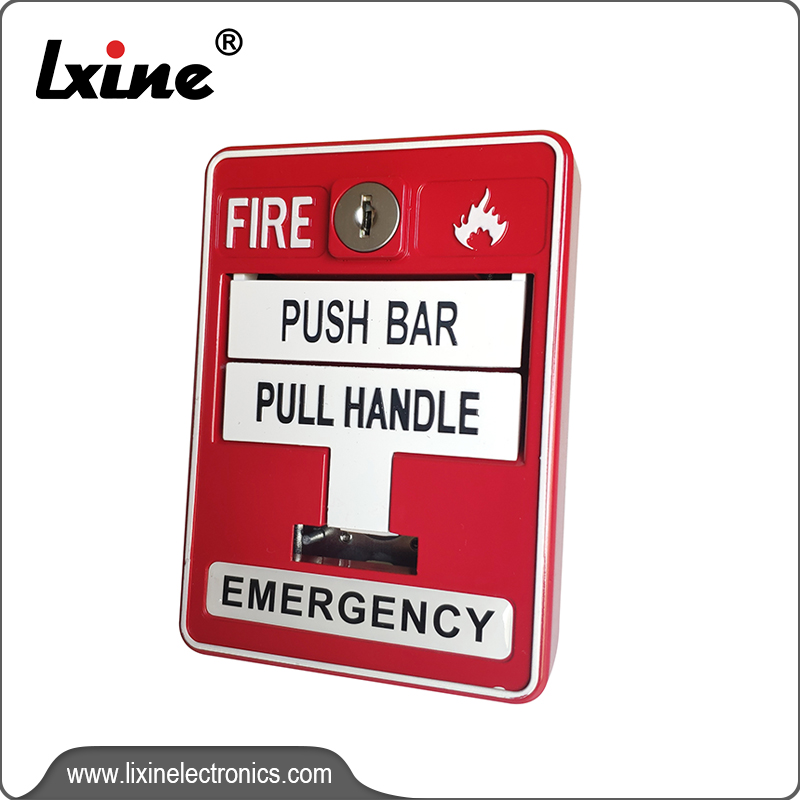

The MS-701 is a single action, single stage manual station. Model MS-710 is a single stage, dual action manual station. The MS-702 (two stage) is similar to the MS- 701 (single stage) except it contains an additional General Alarm (G.A.) N.O. switch. For safety reasons, the G.A. switch is only accessible after the handle has been pulled. A special key is supplied with each unit.
All models are available with key resets, terminal connectors, SPST gold contacts and CAT-30 lock and keys. The units mount on a standard single gang backbox, Mircom’s BB-700 surface metal backbox or BB-700WP weather proof backbox.
The MS-700U Series Manual Stations are listed for outdoor applications when used with the BB-700WP.
Operation
The MS-702 (two stage version) also provides a key switch which is accessible after the handle has been pulled. Operation of the key switch, when connected to a separate general alarm circuit, will initiate the 2nd stage of a two stage alarm signalling system.
Specifications
The manual station shall be Mircom’s MS-700 Series. Operating instructions shall be in raised English or English and French lettering and the unit shall be constructed of high quality die-cast metal and fifi nished in red enamel paint to provide quick identififi cation.
Pulling the handle shall initiate immediate operation of the alarm detection circuit. In addition, those stations installed in a two stage system shall come equipped with an internal key switch designed to operate the 2nd stage alarm initiating circuit. All manual fifi re alarm stations shall be installed to comply with the Canadian Electrical Code (CSA 22.1) and CAN/ULC-S524-01 Standard for Installation of Fire Alarm Systems. Final acceptance is subject to the local authority having jurisdiction.
Switch Rating: 1 Amp @ 30 VDC, 0.1 Amp @ 125 VAC
Manual Station Dimensions: 4.9” H x 3.5” W x 2.0” D
Colour: Red with raised white letters, white manual bar with raised black letters.

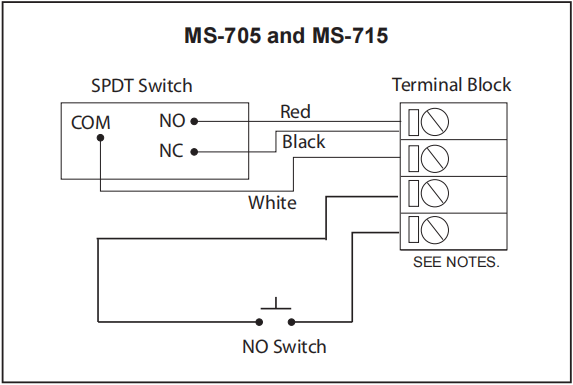

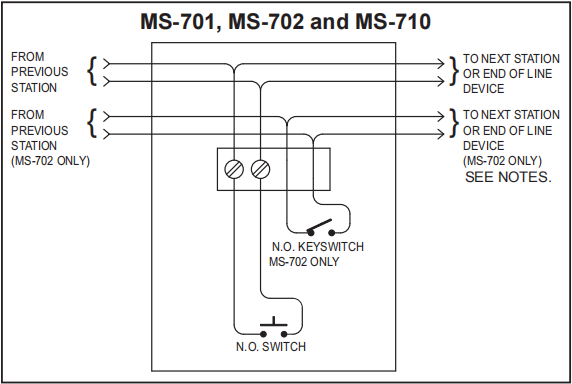

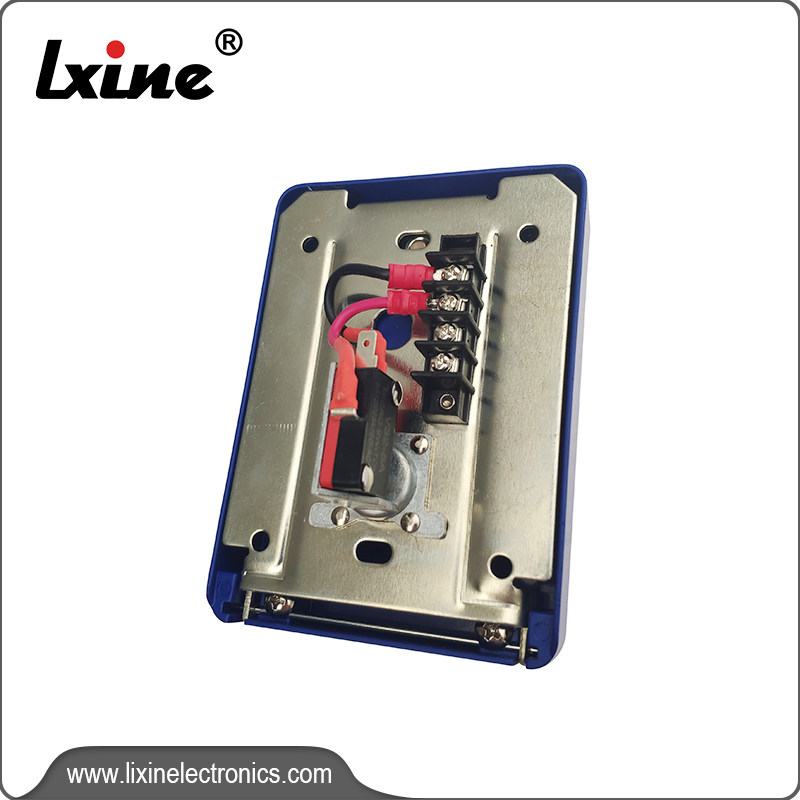

Typical Wiring Diagrams
NOTES
• Wire as shown so that supervision of connections is maintained
• Mount station to 2” x 4” x 2¼” outlet box
• Maximum size: No. 12 AWG
• For Normally Open operation, cut the NC wire
• For Normally Closed operation, cut the NO wire
• Switches shown in the Station Closed position

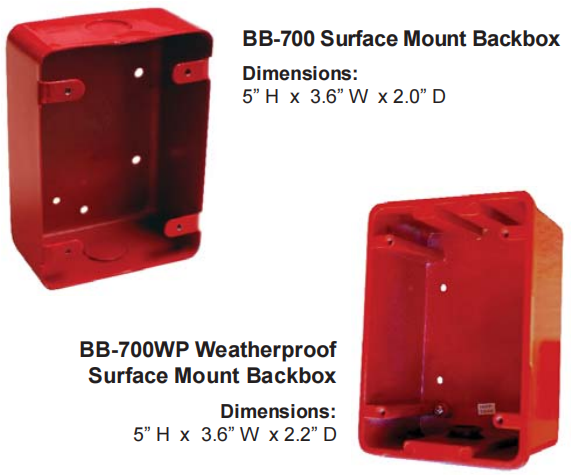

Surface Mount Backboxes
Ordering Information
MS-701: Single Stage Single Action Manual Station (Bilingual)
MS-702: Dual Stage Single Action Manual Station (Bilingual)
MS-705: Single Stage Single Action Manual Station c/w one additional Form “C” (SPDT) Contact (Bilingual)
MS-710: Single Stage Dual Action Manual Station (Bilingual)
MS-715: Single Stage Dual Action Manual Station c/w one additional Form “C” (SPDT) Contact (Bilingual)
Note: Add suffifi x “U” for English only models.
MS-707: Single Stage Single Action Manual Station c/w 2 Form “C” Contacts
MS-708: Dual Stage Single Action Manual Station c/w 2 Form “C” Contacts and Key Switch
BB-700: Series 700 Interior Surface Mount Backbox, Red Finish
BB-700: WP Series 700 Weatherproof Surface Mount Backbox, Red Finish
