3100 MIRCOM style–5165
EMERGENCY MANUAL STATIONS MS-700U SERIES
• Key resettable
• Terminal connectors
• Gold plated SPDT contacts
• High-gloss enamel in Blue and Yellow
• Normally Open or Normally Closed Alarm Contacts
• Meets ADA 5 lb. maximum manual-force
Features

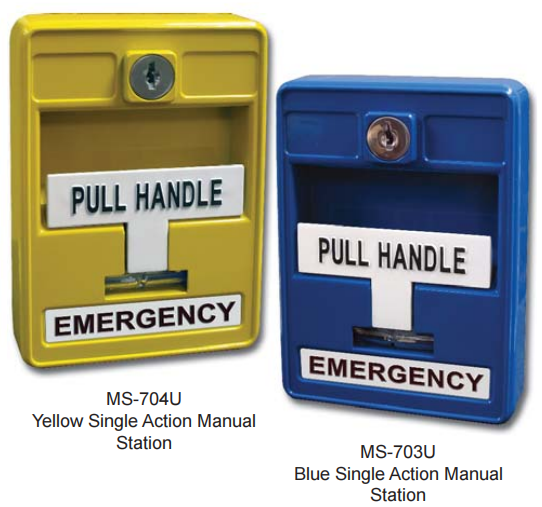

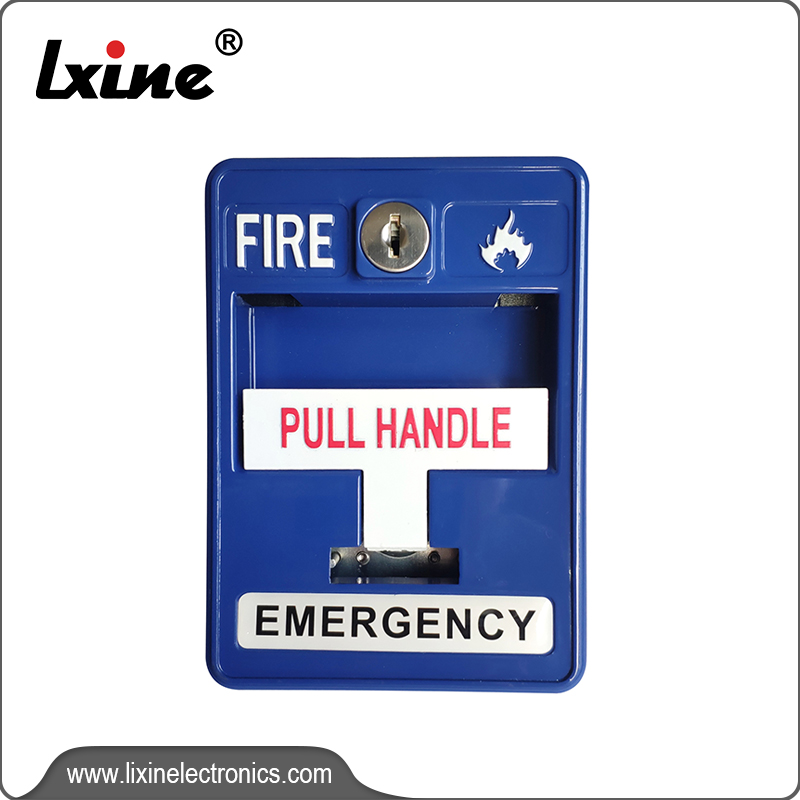

Mircom’s MS-700U Emergency Manual Stations consist of two models. The MS-703U and MS-704U are single action manual stations. The MS-703U is fifi nished in a Blue enamel and the MS-704U is fifi nished in a Yellow enamel.

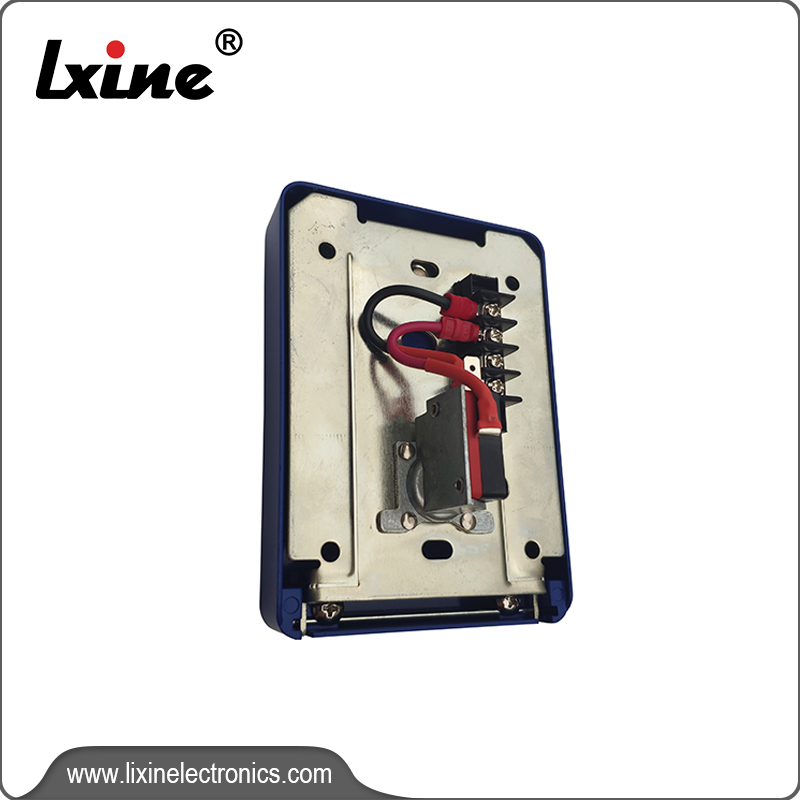

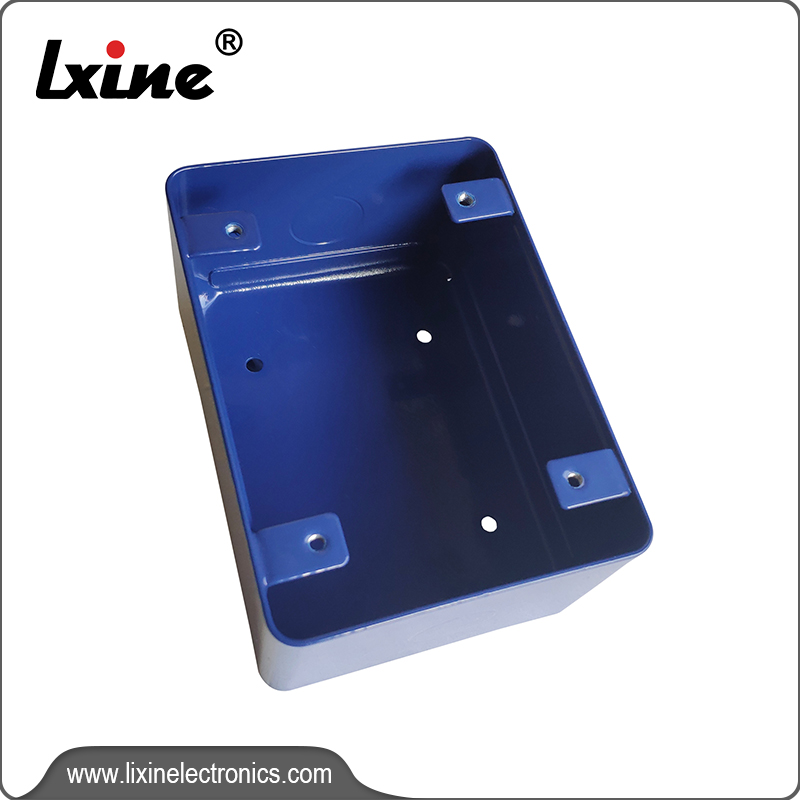

Both models are available with key resets, CAT-30 lock and keys, SPDT contacts and terminal strip connections. The contacts are gold plated to avoid the risk of corrosion. The MS-700U Emergency Manual Stations mount on a standard single gang backbox.
Description

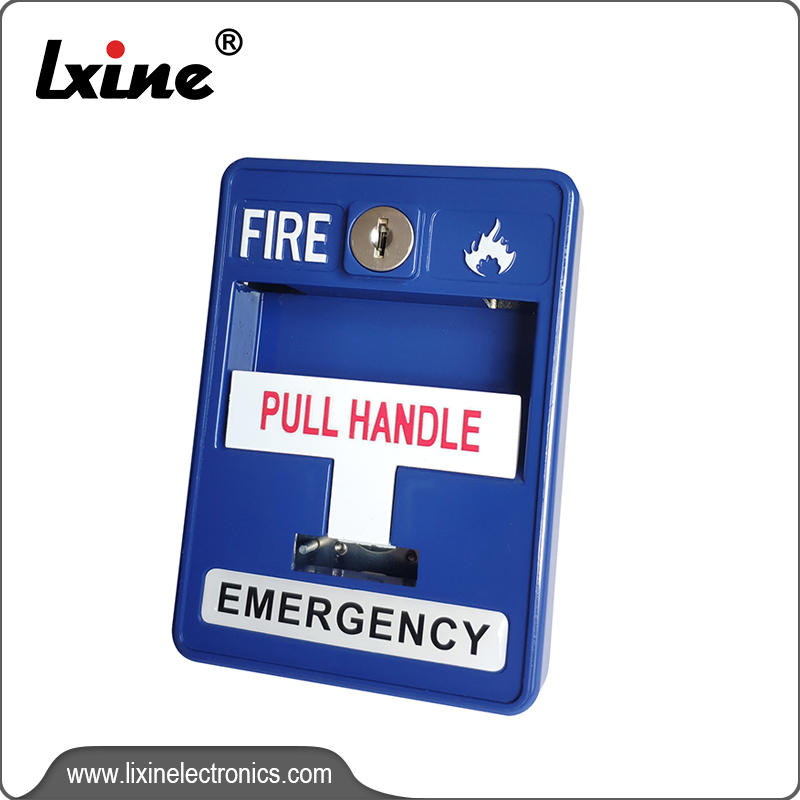

The MS-700U Single Action Emergency Manual Stations are operated by pulling down the handle marked “PULL HANDLE” on the front of the station.
The MS-700U Series Emergency Manual Stations are reset by opening the station with the key, placing the handle in the normal upright position and re- locking the station.
Operation
Switch Rating: 1 Amp @ 30 VDC, 0.1 Amp @ 125 VAC
Manual Station Dimensions: 4.9” H x 3.5” W x 2.0” D
Colors: Blue or Yellow with raised white letters.
White manual bar with raised black letters.
Specifications
Switch Rating: 1 Amp @ 30 VDC, 0.1 Amp @ 125 VAC
Manual Station Dimensions: 4.9” H x 3.5” W x 2.0” D
Colors: Blue or Yellow with raised white letters.
White manual bar with raised black letters.

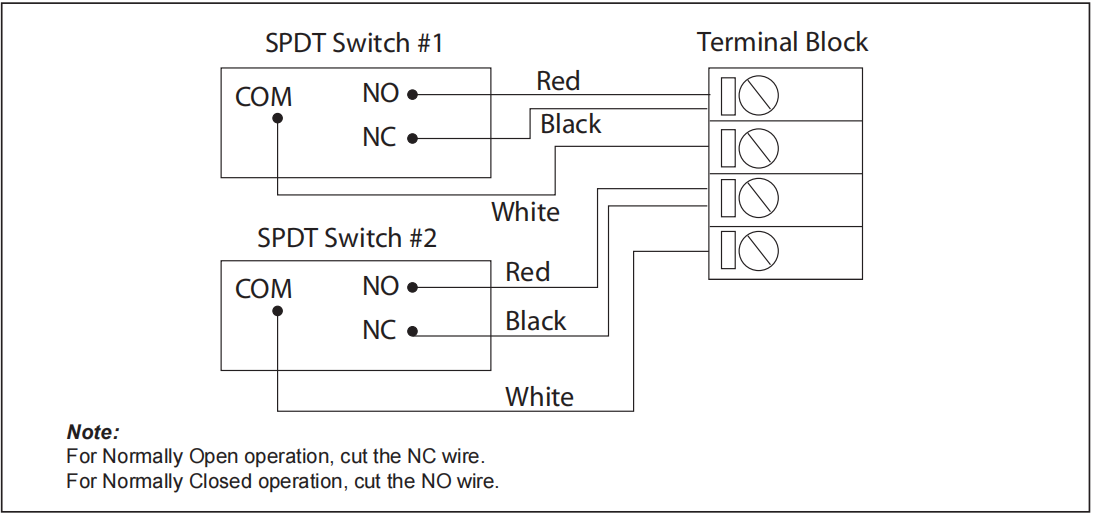

Typical Wiring Diagram
Ordering Information
|
Model
|
Description
|
|
MS-703U
|
Blue Single Action Emergency Manual Station c/w 2 Form “C” Contacts
|
|
MS-704U
|
Yellow Single Action Emergency Manual Station c/w 2 Form “C” Contacts
|
