Short Description:

This control panelcan be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system  to detect and warn people

 through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated

 automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure,

battery fault or disconnected,alarm output wiring fault.

*Input voltage:240VAC+/-10% 50/60HZ

*Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply

*Charging voltage protection: 1.6Ah glass fuse

*Sounder output: 24V nominal EOL 10K resistor

* Auxiliary contacts: 30VDC, 1A max. NC/NO

*Main supply protection: glass fuse

*Sounder protection: 2 x 500mA glass fuse

*Reverse battery protection: charger glass fuse

*Zone EOL: 5.6K resistor

*Color: ivory,blue,black

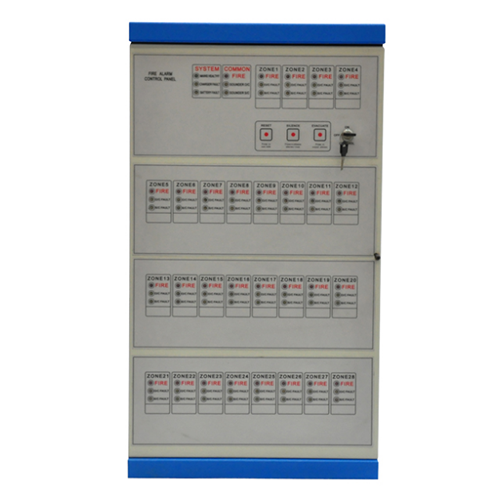

*Zoned visual red alarm and yellow trouble indicators

*Continuous signal during alarm

*Low / no power and battery detection

*Automatic loading and testing of battery

*Battery lead reversal protection

*Evacuate (alarm resound)

*LED test
