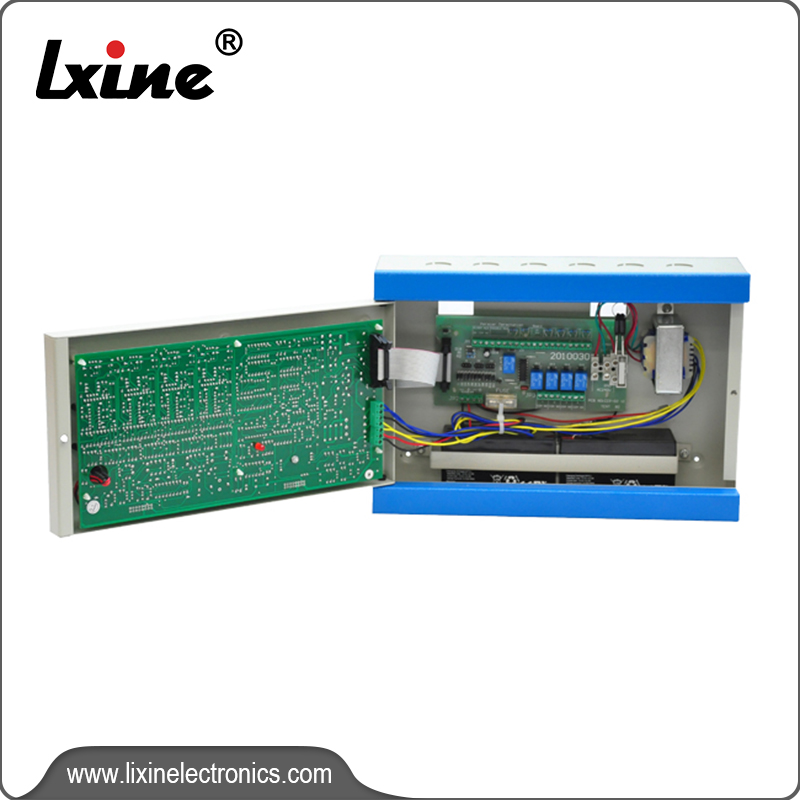

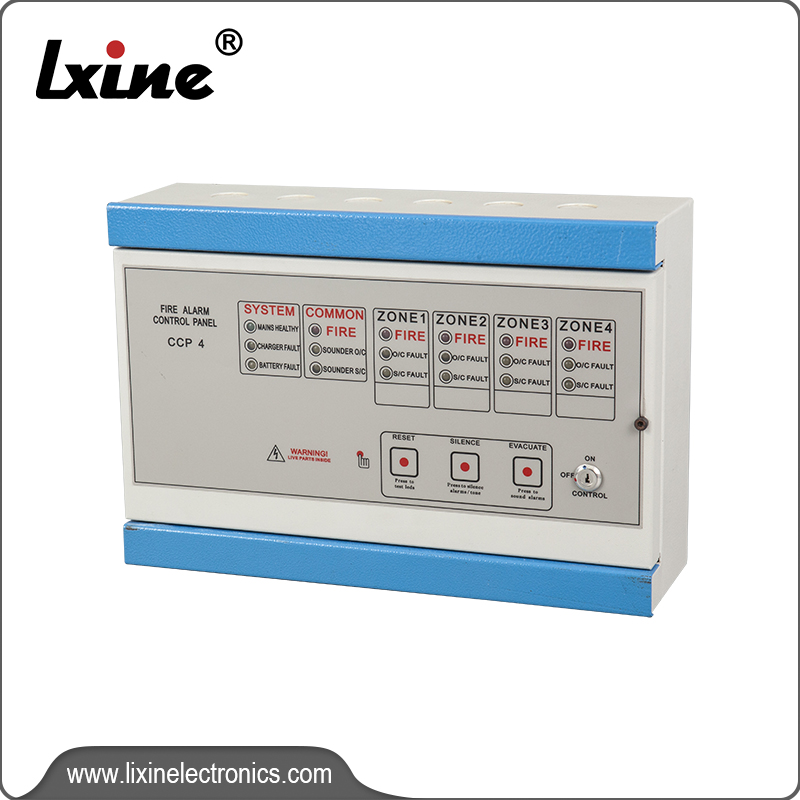

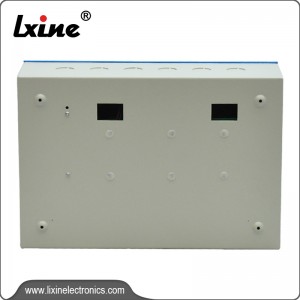

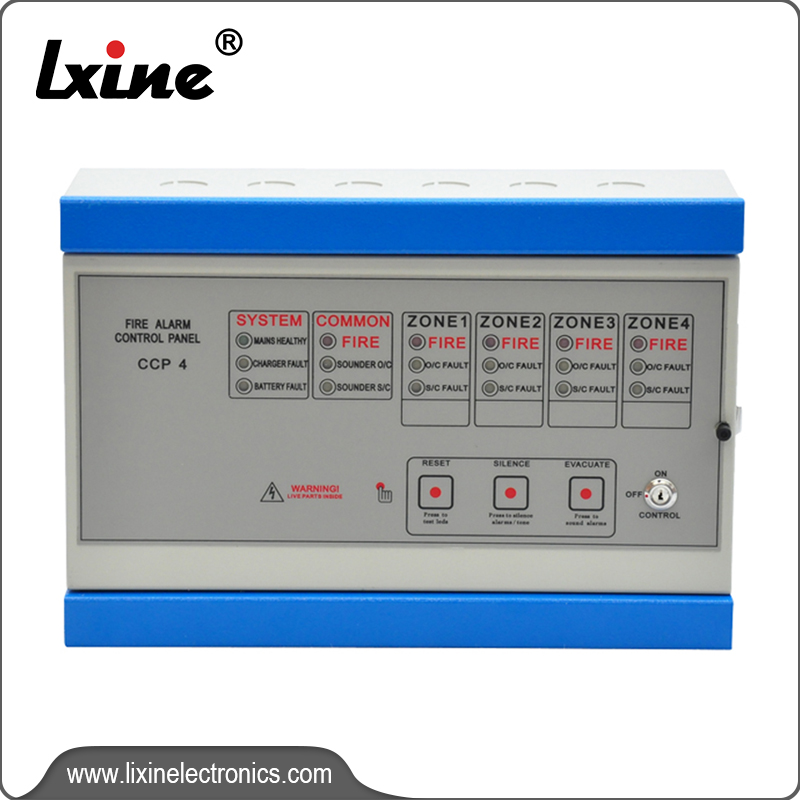

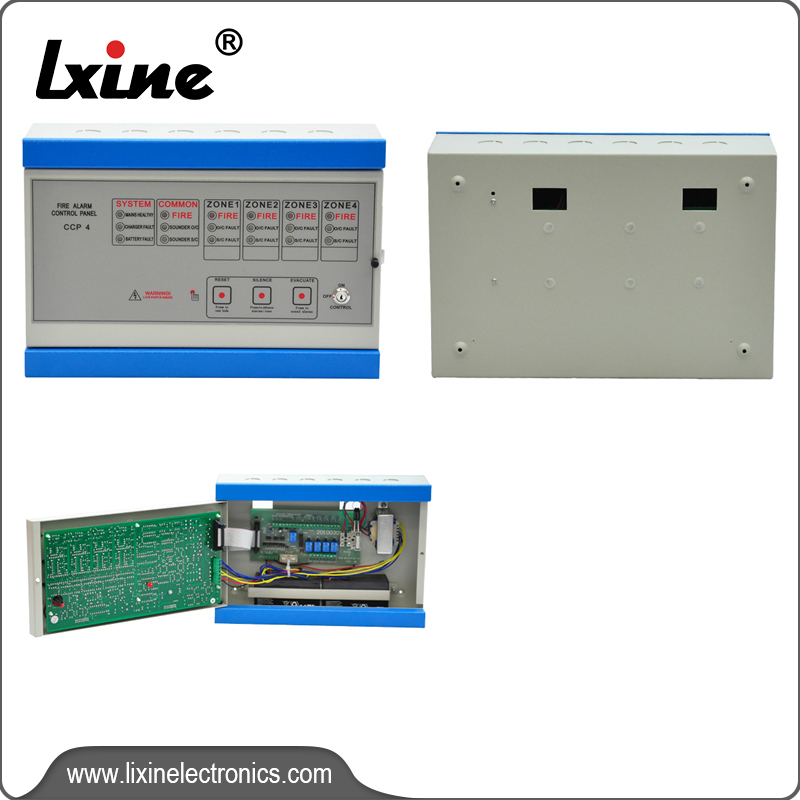

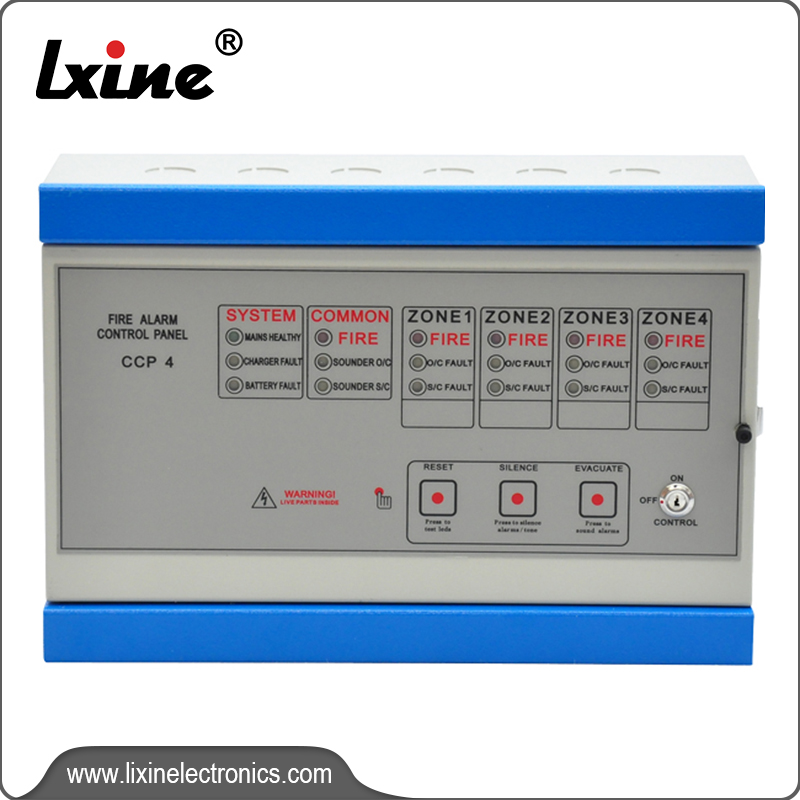

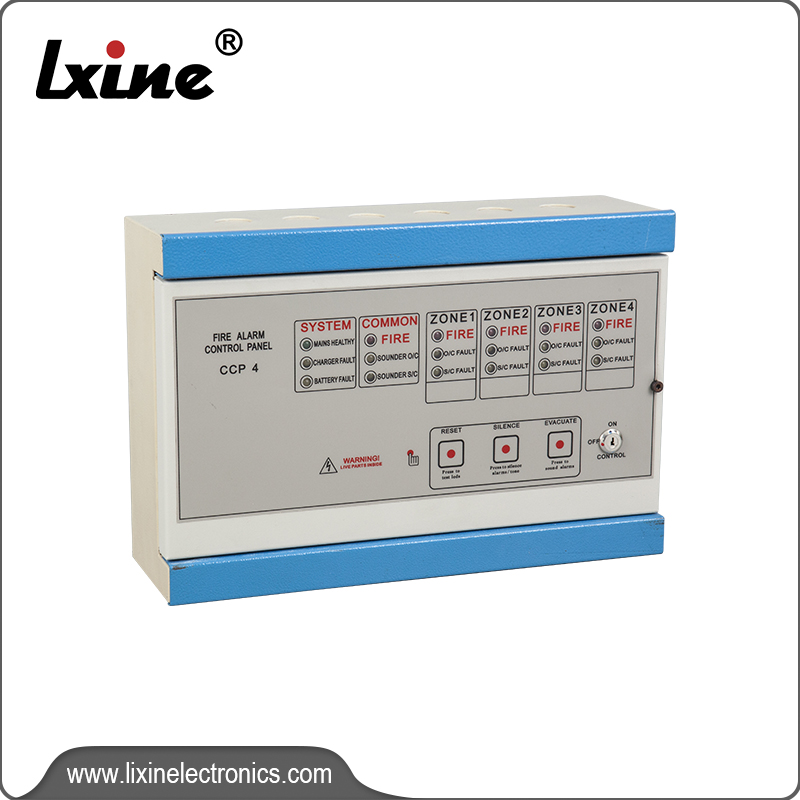

Fire alarm control panel LX-801-4
Short Description:
CONVENTIONAL FIRE ALARM PANEL,4 ZONES
This control panel can be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system to detect and warn people
through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated
automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure,
battery fault or disconnected,alarm output wiring fault.
*Input voltage:240VAC+/-10% 50/60HZ
*Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply
*Charging voltage protection: 1.6Ah glass fuse
*Sounder output: 24V nominal EOL 10K resistor
* Auxiliary contacts: 30VDC, 1A max. NC/NO
*Main supply protection: glass fuse
*Sounder protection: 2 x 500mA glass fuse
*Reverse battery protection: charger glass fuse
*Zone EOL: 5.6K resistor
*Color: ivory,blue,black
*Zoned visual red alarm and yellow trouble indicators
*Continuous signal during alarm
*Low / no power and battery detection
*Automatic loading and testing of battery
*Battery lead reversal protection
*Evacuate (alarm resound)
*LED test
Packing Data
| Model: | LX-801-4 | MOQ： | 50PCS |
| lead time： | Regular 25working days since deposit is received |
Payment： | T/T |
| Brand Name： | LXINE | Price Term： | FOB /CNF /CIF |
| Sample Lead Time： | 5 working days after sample cost arrival | Guarantee： | 5 years for UL listed lights 1 years for battery |
| Certification: | UL |
Packing Data
| Item No. | QTY/CTN | CARTON SIZE | QTY/20GP |
| LX-801-4 | 4pcs | 36x30.5x51cm | 200pcs |
Specifications
1. Input voltage:240VAC±10% / 50/60Hz
2. Battery: 24VDC
3. Charging voltage protection: 1.6Ah glass fuse
4. Sounder output: 24V nominal EOL 10K resistor
5. Auxiliary contacts: 30VDC,1A max. NC/NO
6. Main supply protection: glass fuse
7. Sounder protection: 2x500mA glass fuse
8. Reverse battery protection: charger glass fuse
9. Zone EOL: 5.6K resistor
10. Zoned visual red alarm and yellow trouble indicators
11. Continuous signal during alarm
12. Built-in battery charger
13. Low / no power and battery detection
14. Automatic loading and testing of battery
15. Evacuate ( alarm resound)
16. LED test
17. Product size: 30 x20 x9.6cm
