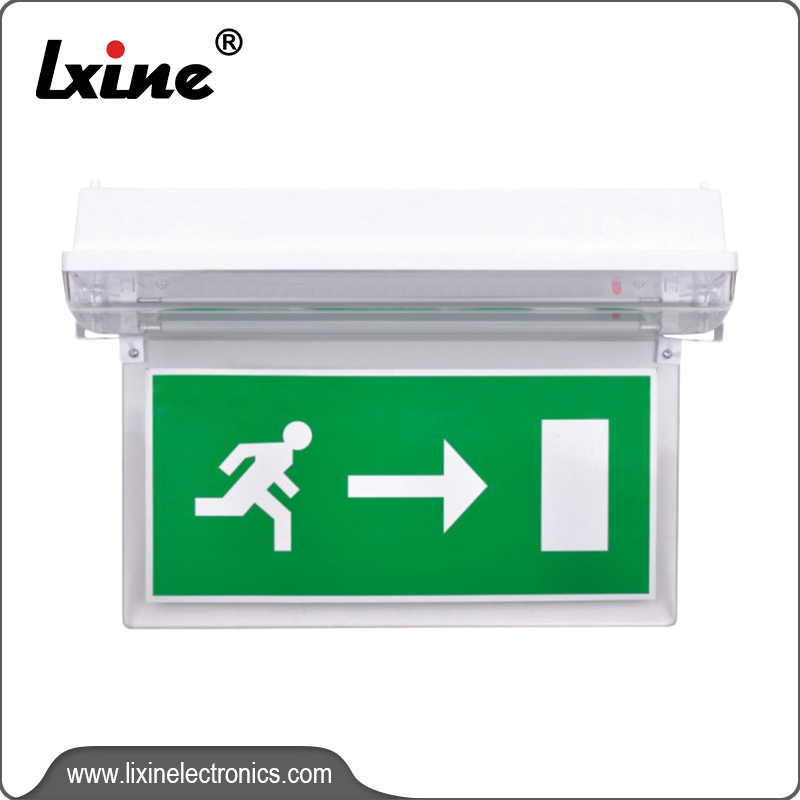

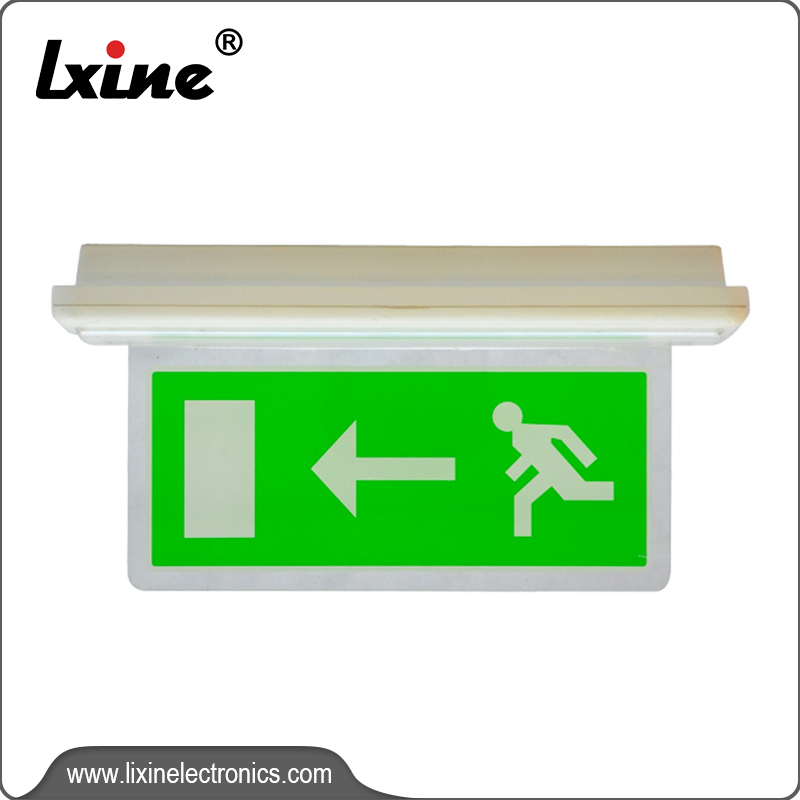

Exit sign for 3 hours emergency duration LX-717

Exit sign for 3 hours emergency duration LX-717 Featured Image
  • Exit sign for 3 hours emergency duration LX-717
  • Exit sign for 3 hours emergency duration LX-717

Short Description:

*Input voltage: AC220V/DC3.6V

*AC Power:4W

*Light source: 1x8W T5 fluorescent tube

*Size: 35.6x15x19cm

*ABS base and acrylic panel

*Ceiling mounting



*Built-in nickel cadmium battery provides 3 hours backup power in the event of a power outage:3.6V 1.5Ah, it is rechargeable battery with battery overcharge and discharge protection, 24 hours charging time after 3 hours discharge.

*Packaging:1pc with one page manual into a white box, 10pcs/outer carton


Product Detail

Product Tags

Regular Info

Model: LX-717 MOQ： 500PCS
lead time： Regular 25working days
since deposit is received		 Payment： T/T
Brand Name： LXINE Price Term： FOB /CNF /CIF
Sample Lead Time： 5 working days after sample cost arrival Guarantee： 2 years under normal operation
Certification: N/A

Packing Data

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration		 Material Lumen Color
LX-717 AC220V+-10%
&DC3.6V		 Fiourescent
tube 1*8w		 4w Ni-Cd
3.6v 1.5Ah		 ≥3Hours Fire retardant
ABS base+PC Cover		 >8cd/m² Green



Technical Parameters

Ceiling mounting

Fire retardant ABS base and Acrylic panel

Running Man/Exit/customized graphic are available.

24 hours charging time after 3 hours discharge

Product Size: 35.6x15x19cm

Working temperature: -5℃-45℃

Working humidity：＜90%

Used in Commercial/Residental areas
