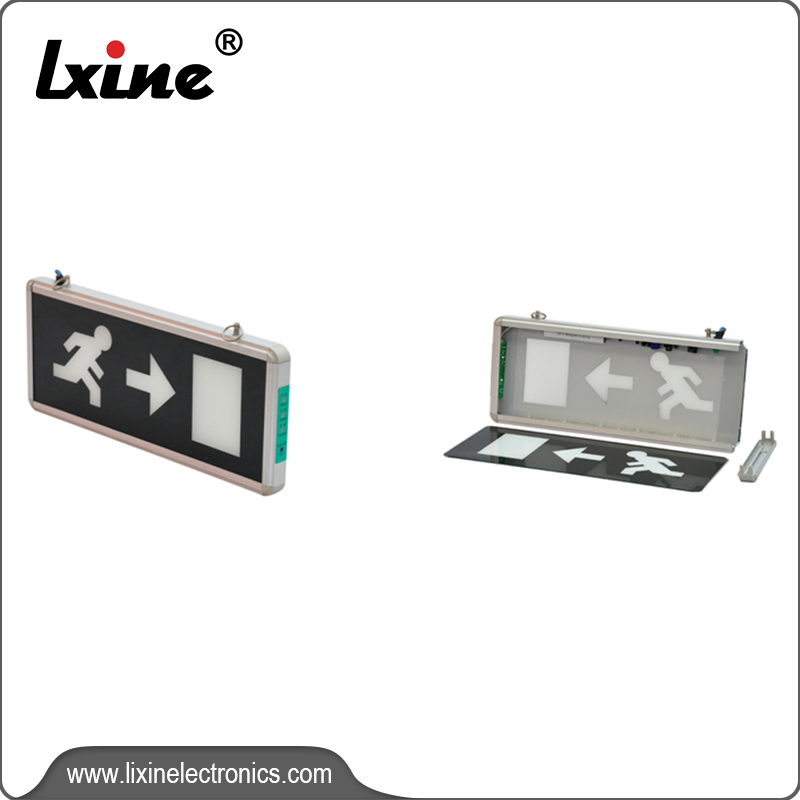

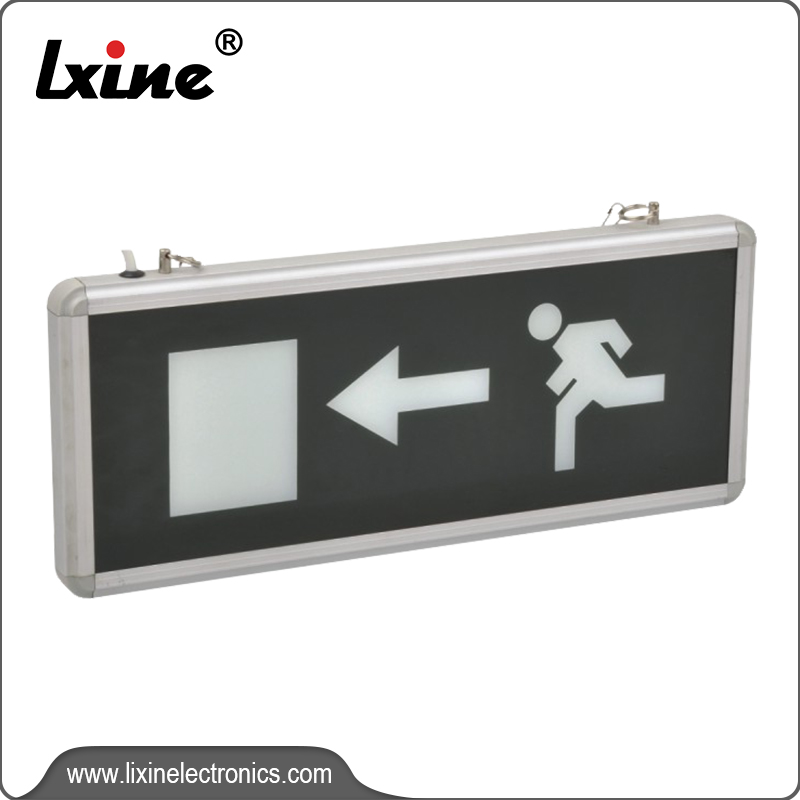

Exit sign light for 3 hours emergency duration LX-714

Exit sign light for 3 hours emergency duration LX-714 Featured Image
  • Exit sign light for 3 hours emergency duration LX-714
  • Exit sign light for 3 hours emergency duration LX-714

Short Description:

*Input voltage:AC220V-240V 50/60HZ

*AC Power:2W

*Light source: 6pcs leds

*Size: 36×16.2×2.5cm



*Built-in nickel cadmium battery provides 3 hours backup power in the event of a power outage:3.6V 350mAh, it is rechargeable battery with battery overcharge and discharge protection, 24 hours charging time after 3 hours discharge.

*Pictograms on panel:running man with arrow,                       running man and down arrow with EMERGENCY EXIT

*Packaging:1pc with one page manual into a white box, 10pcs/outer carton


Product Detail

Product Tags

Regular Info

Model: LX-714 MOQ： 500PCS
lead time： Regular 25working days
since deposit is received		 Payment： T/T
Brand Name： LXINE Price Term： FOB /CNF /CIF
Sample Lead Time： 5 working days after sample cost arrival Guarantee： 2 years under normal operation
Certification: N/A



Packing Data

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration		 Material Lumen Color
LX-714-1 AC220V+-10% Halogen
6v/5w*2		 2.5W Ni-Cd
3.6v 350mAH		 ≥3Hours Aluminium Alloy
+glass panel		 >8cd/m² Green

Technical Parameters

LED Type, Double faces.

Aluminium Alloy Housing

Running Man/Exit/customized graphic are available.

24 hours charging time after 3 hours discharge.

Product Size: 36x16.2x2.5cm

Working temperature: -5℃-45℃

Working humidity：＜90%

Used in Commercial/Residental areas
