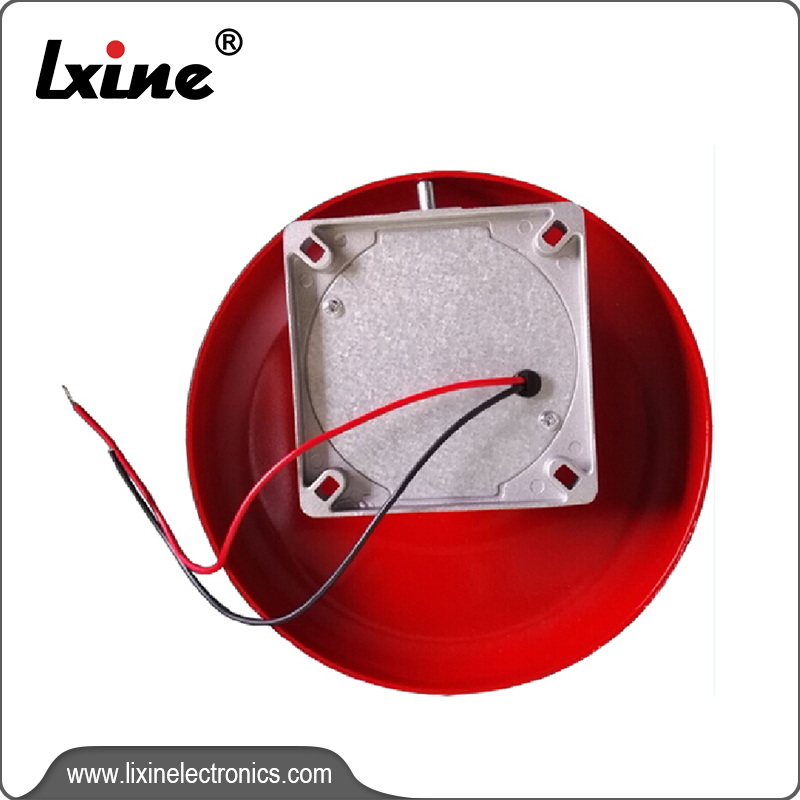

Fire alarm bell 8” size for fire alarm system LX-907-8”AC/DC

Short Description:

This fire alarm bell can be connected with main controller.When the main controller receives signal of a fire, the fire alarm bell will sound continuous alarm to remind people escape from the fire. The fire alarm can work as a stand-alone bell connecting to AC power. It is in 8 inch middle size with minimum decibel up to 97db/1m.Because of its powerful alarm function, the fire alarm ring is suitable for installation at home, school,hotel,office,restaurant,etc.

*Size:dia.200mm(8 inch)
*Operating voltage: 2 kinds of voltage optional as below:

For connecting to 220V AC main power, it is a magnetic style fire alarm bell and can work as a bell independently.

For 24V DC voltage,it is a motorised style fire alarm bell which connects with fire alarm system.

We should make sure which voltage and application we need before ordering,because internal construction of fire alarm bell is different.



* Operating current:

≤100mA for magnetic fire alarm bell using 220V AC voltage

≤50mA for motorised fire alarm bell using 24V DC voltage

*Sound level: >97dB


Product Detail

Product Tags

Regular Info

Model: LX-907-8''AC/DC MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: Regular 2 years guarantee
 under normal operation



Packing Data

Item No. QTY/CTN CARTON SIZE QTY/20GP
LX-907-8 12pcs 45x45x22.5 6480pcs



Technical Parameters

Operating voltage:

LX-907-8”AC: 220VAC Stand-alone use

LX-907-8”DC: 24VDC Connect with fire alarm system

Operating current:

≤100mA (LX-907-8”AC)

≤50mA (LX-907-8”DC)

Sound level: >97dB

Product size: φ20*6.5CM
