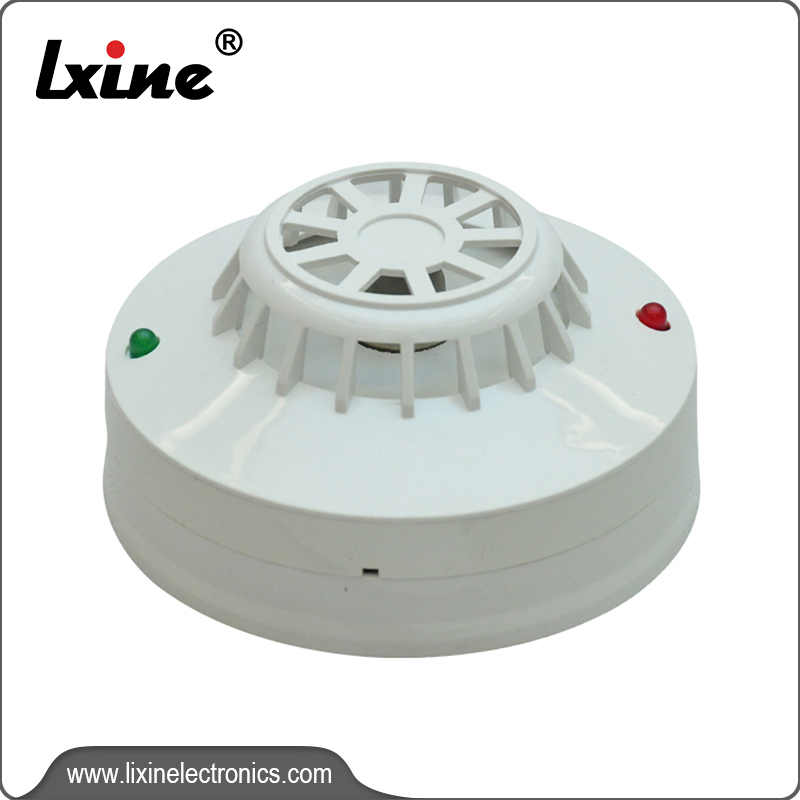

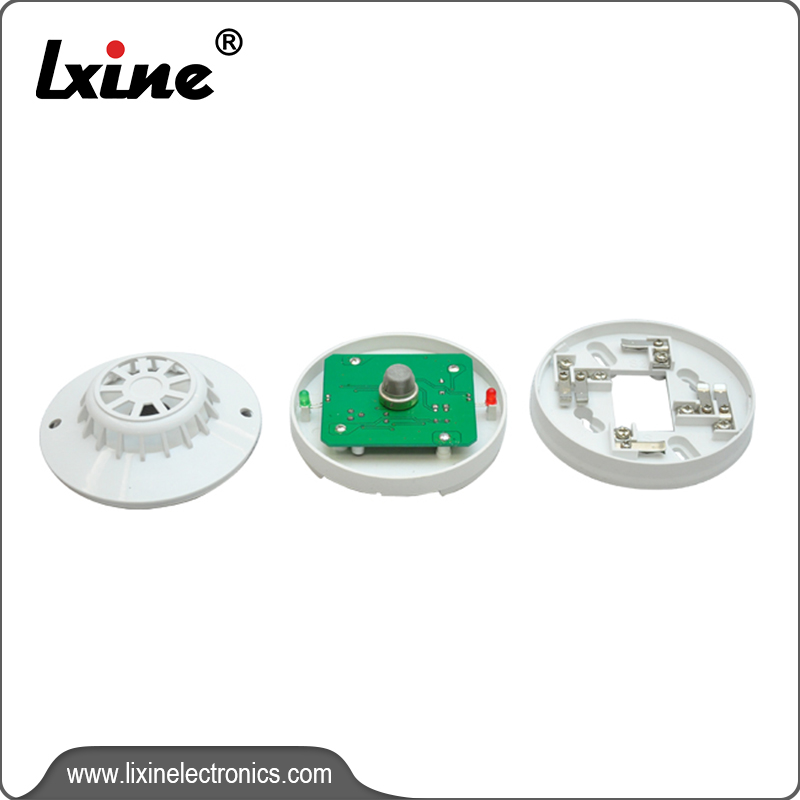

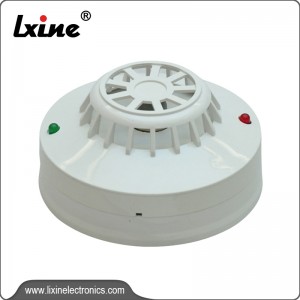

Conventional gas detector LX-213L
Short Description:
Non-Addressable gas detector，applicable to 4 wire
non-addressable fire detection control and indicating equipment,
it will alarm through light /sound when the combustible gas leaks.
*Working voltage:16VDC~32VDC
*Power consumption: 1.7W
*Sensitivity : 10%LEL
*Alarm sonority：≥85bd
*Working humidity: ≤95%RH
*Operating temperature:-10℃ to +50℃
* Built-in signal relay
*Regular packing is each gas detector is packed into a neutral white box, 100pcs/master carton
Status indication :
When green light flash, sensor warm-up ;
When green light on, sensor turn into the working status ;
When red light flash, buzzer tweet by pulse, means it detects the combustible gas,and alarm through light/sound.

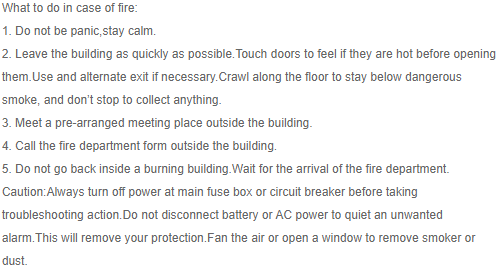

Practice fire safety:
Expose everyone to the sound of the fire alarm in daily life and explain what the sound means and how to operate the fire alarm button if a fire occurs.Discuss in advance two exits from each room and an escape route to the outside from each exit.Teach them to crawl along the floor to stay below dangerous smoke,fumes and gases.Determine a safe meeting place in advance for all members outside the building.
Regular Info
| Model: | LX-213L | MOQ： | 500PCS |
| lead time： | Regular 25working days since deposit is received | Payment： | T/T |
| Brand Name： | LXINE | Price Term： | FOB /CNF /CIF |
| Sample Lead Time： | 5 working days after sample cost arrival | Guarantee： | Regular 2 years guarantee under normal operation |
Packing Data
| Item No. | QTY/CTN | CARTON SIZE | QTY/20GP |
| LX-213L | 100pcs | 45.5x32x57.5CM | 33600pcs |
Technical Parameters
1. Power consumption: 1.7W
2. Alarm sonority: ≥85dB
3. Sensitivity: 10% LEL
4. Working temperature: -10℃--+50℃
5. Working humidity: ≤95%RH
6. Can connect to the system
7. Product size: 10.9x10.9 x5.2cm
