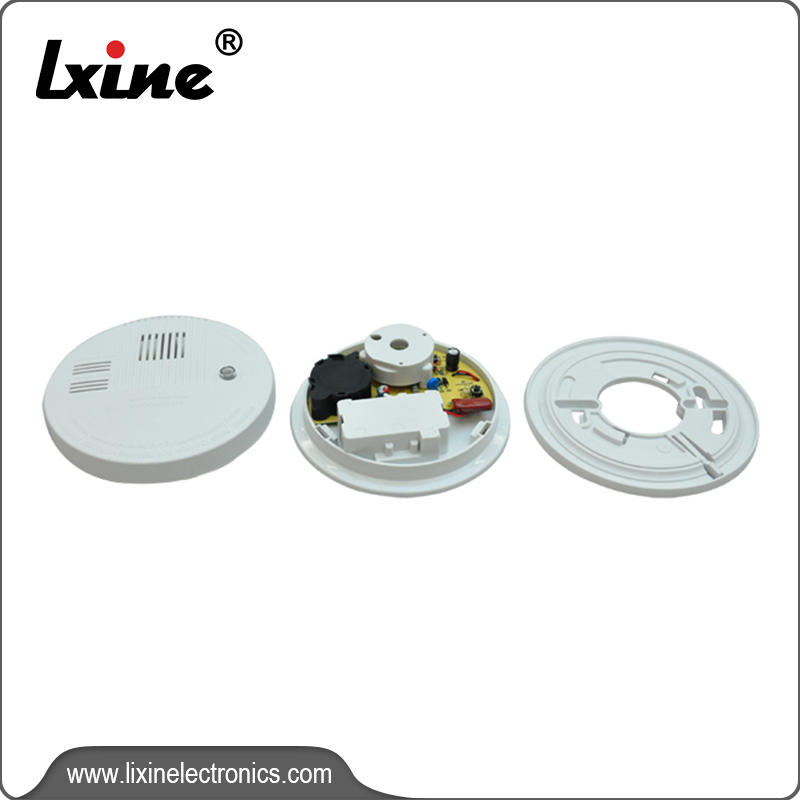

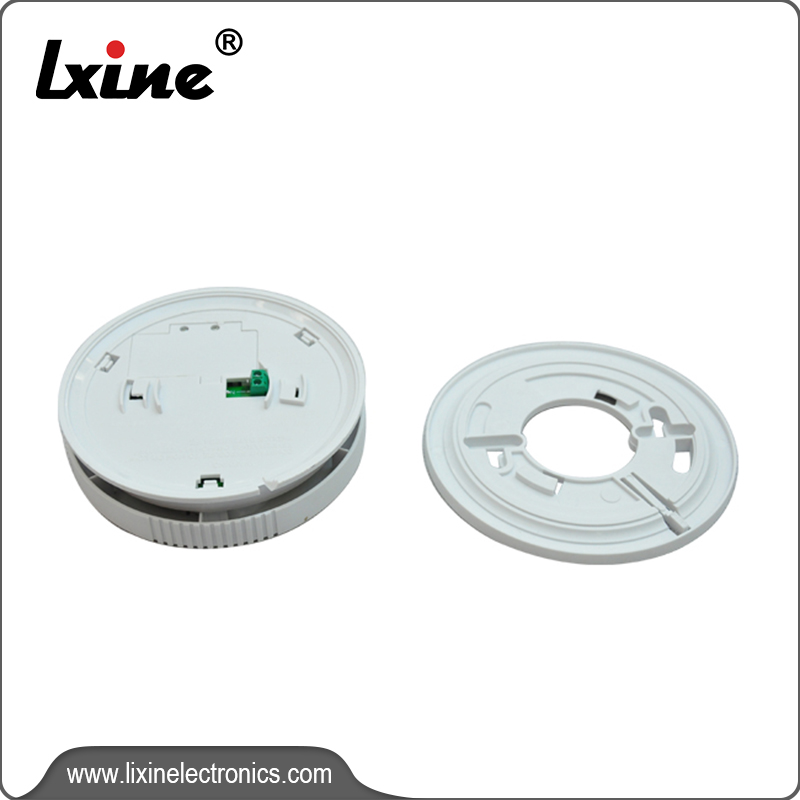

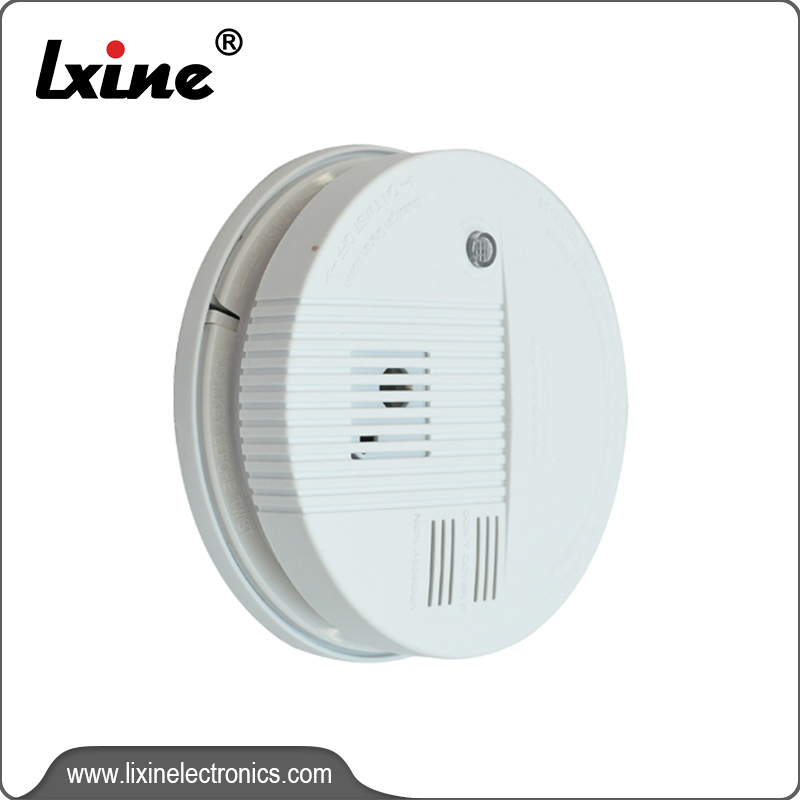

Hot selling photoelectric smoke detector with battery LX-224AC/DC

Short Description:

This smoke detector adopts photoelectric detector.Photoelectric technology is more sensitive than ionization technology at detecting large particles.

* Model LX-224AC/DC can be connected with mains power(110-220V AC). The smoke detector has a built-in 9V battery as backup power.

It can work normally in the event of a power outage.

*The smoke detector is power saving.Static current is less than 100uA.Alarm current is 12mA.But alarm sonority is higher than 85db at 3meters distance.

*Test: It is important to test the detector weekly to make sure it is working properly.

1.Press and hold the test button on the cover until the alarm sounds.If it doesn’t alarm,make sure the unit is receiving power and test it again.If it still does not alarm,replace it immediately or check the battery.

2.The light flashes once every 30 seconds in normal state, the light flashes once every 0.5 second while it alarms.

3.If the alarm makes low”chirp” sounds every about 30 seconds,it tells you to exchange battery.


Product Detail

Product Tags

Regular Info

Model: LX-224AC/DC MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: Regular 2 years guarantee
under normal operation



Packing Data

Item No. QTY/CTN CARTON SIZE QTY/20GP
LX-224AC DC 60pcs 56x42.5x26 46000



Technical Parameters

1. Power supply: 9VDC or 110--220VAC

2. Static current: < 10μA

3. Alarm current: 12mA

4. Alarm sonority: ≥85dB (3m)
5. Working temperature: -5℃--+40℃

6. Working humidity: <95%RH

7. Product size: 13.2x13.2x4.1cm
