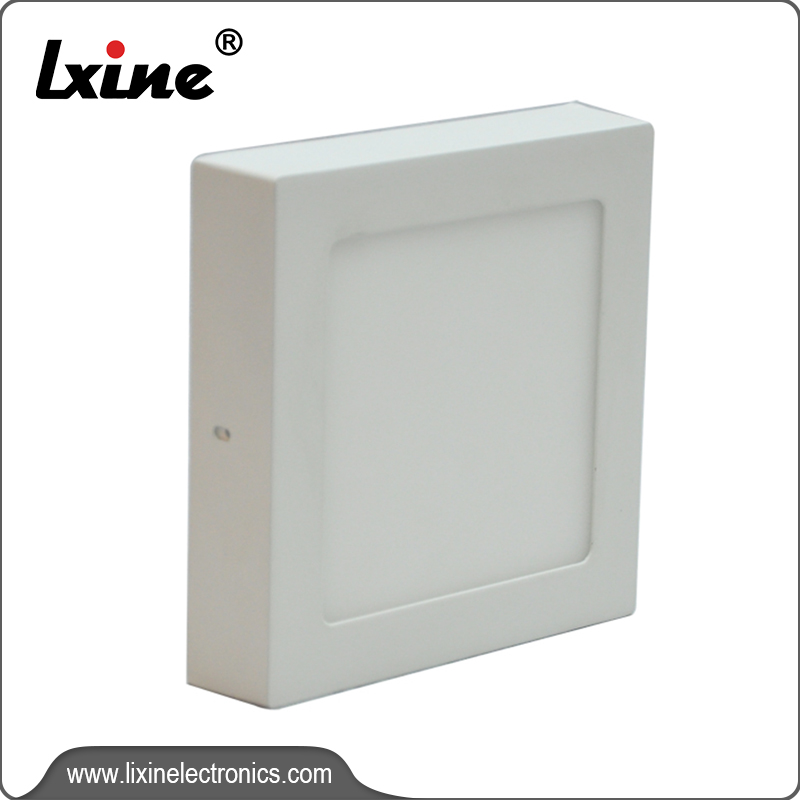

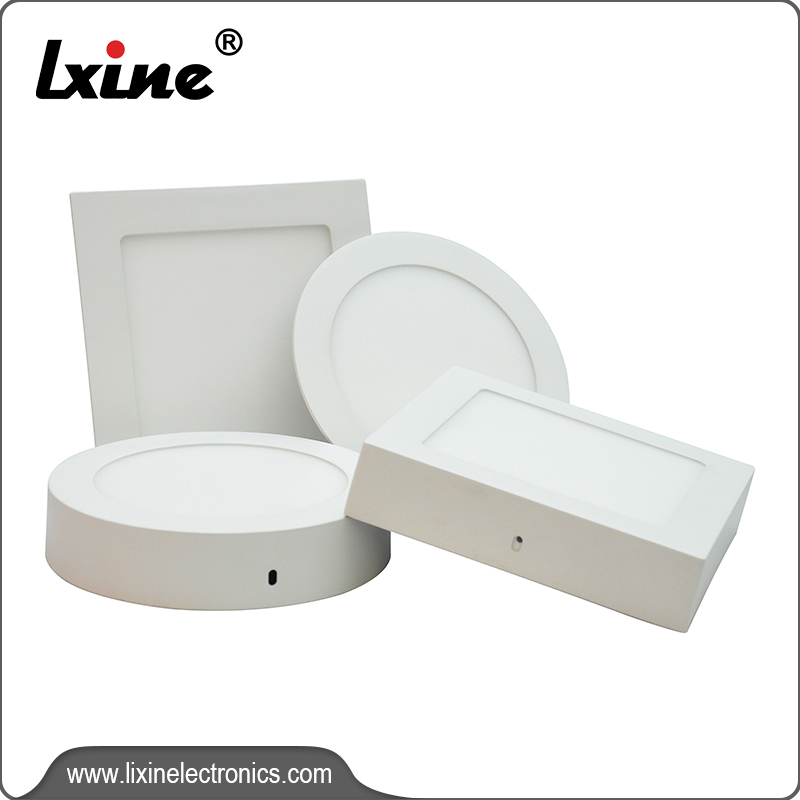

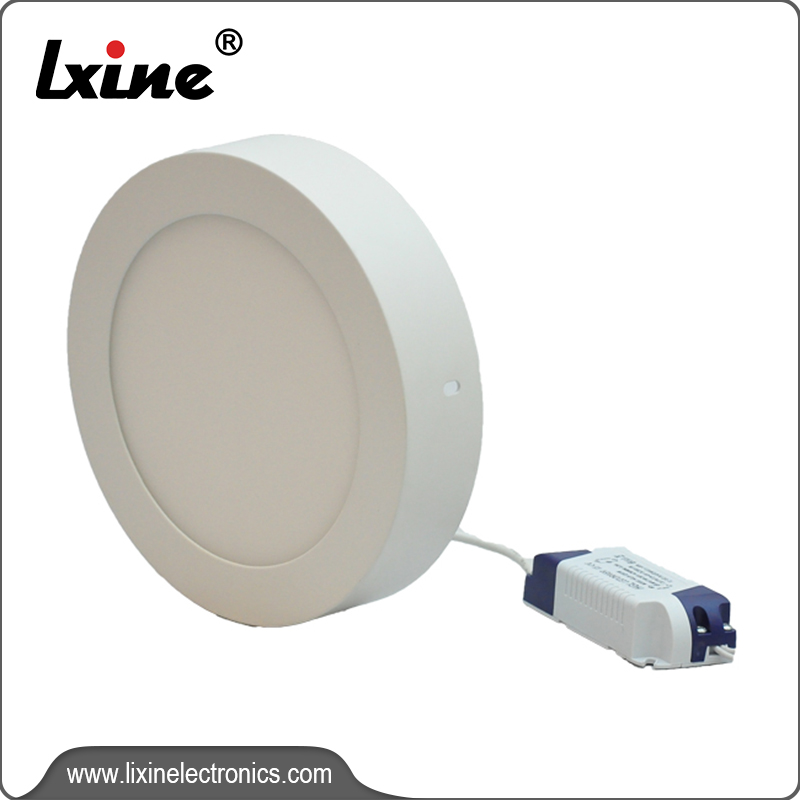

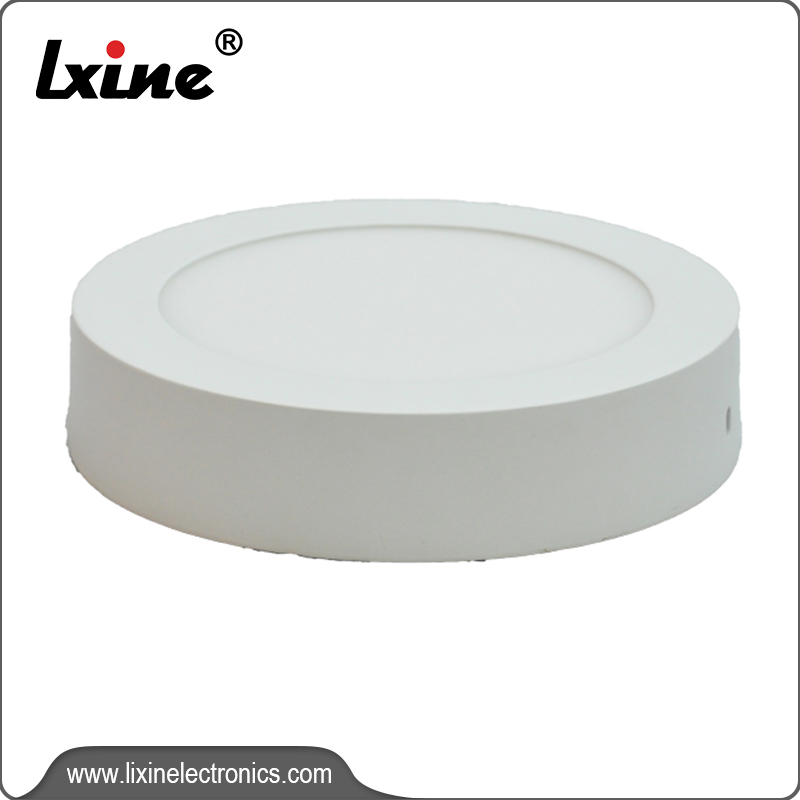

Led panel downlight LX-P02
Features
· Beautiful and clean appearance, easy installation
· High quality light guide plate and diffusion plate, ensure the light uniform and soft
· Superior die casting aluminum makes good heat dissipation, no heavy metals and harmful gas, environmental friendly
· Adopting outside power supply with wide input voltage, no flicker, no glare, no radiation

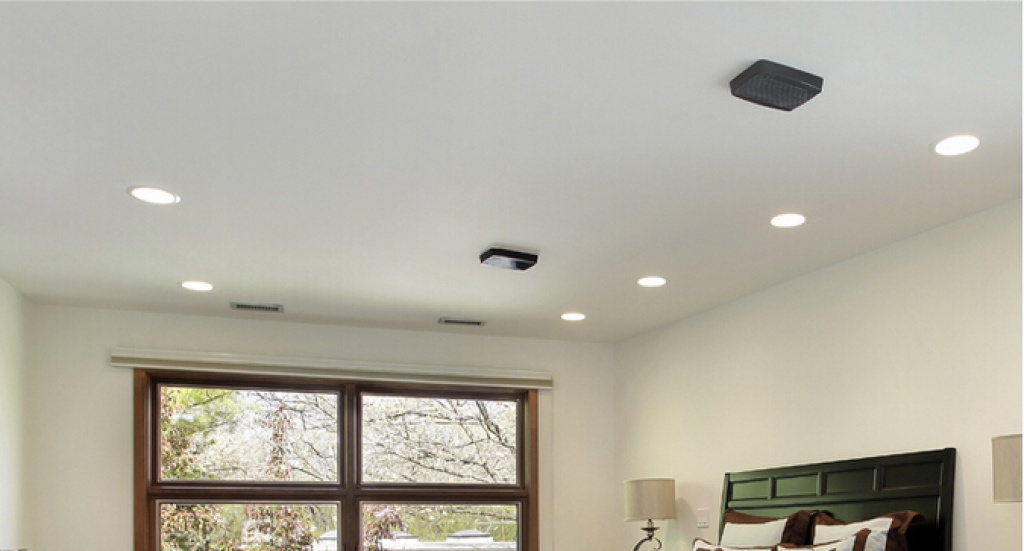

Application
1. Commercial and exhibition locations
2. Hotel, shopping mall
3. Conference/meeting room
4. Factory, office, residence
5. School, hospital and other public places
Product Parameter
| ITEM NO. | Installation method | SPEC. | Voltatge | CCT | DRIVER | Lumen | Ra | Color | size&installation | L | W | H | PCS/CTN |

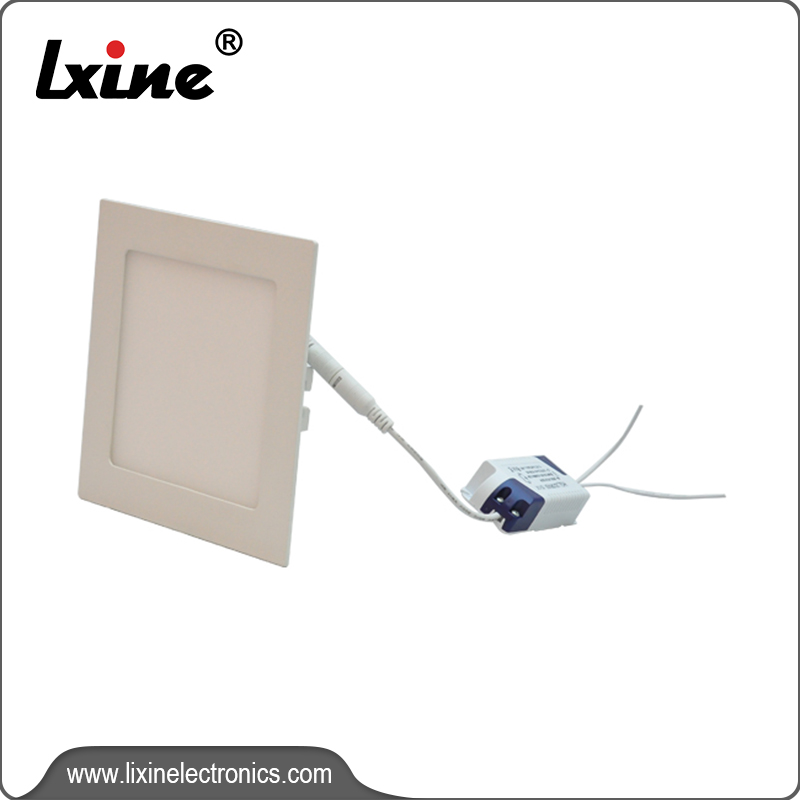

| PL01 | Recessed | 3W | 85-265V | 3000-6000K | IC Isolated | 60LM/W | 80 | White | 85X75X20mm | 52.5 | 33 | 29 | 100 |
| 4W | 85-265V | 3000-6000K | IC Isolated | 60LM/W | 80 | White | 105X95X20mm | 54 | 28 | 38 | 100 | ||
| 6W | 85-265V | 3000-6000K | IC Isolated | 60LM/W | 80 | White | 120X110X20mm | 54 | 28 | 38 | 100 | ||
| 9W | 85-265V | 3000-6000K | IC Isolated | 65LM/W | 80 | White | 147X138X20mm | 56 | 31 | 45 | 60 | ||
| 12W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 170X168X20mm | 56 | 31 | 45 | 60 | ||
| 15W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 200X188X20mm | 65 | 29.5 | 48 | 40 | ||
| 18W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 225X208X20mm | 65 | 29.5 | 48 | 40 | ||
| 24W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 300X288X20mm | 72 | 32 | 36 | 20 | ||

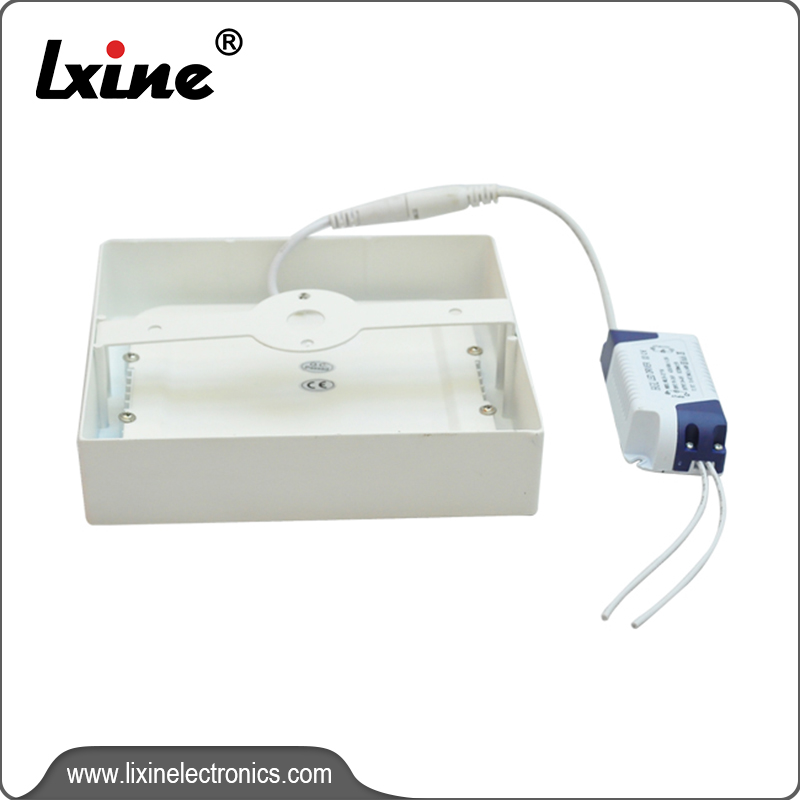

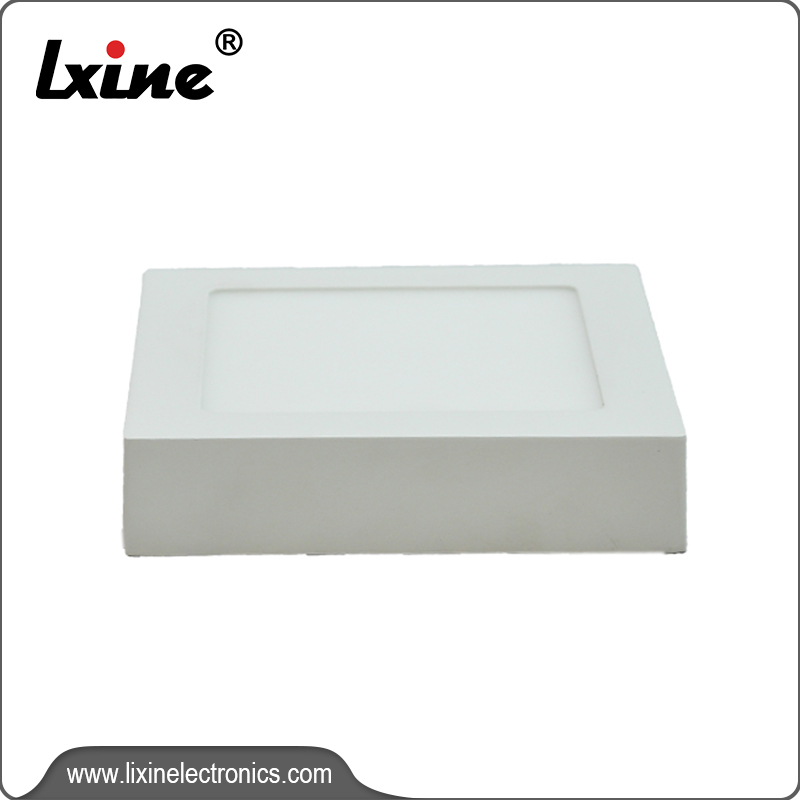

| PL02 | Surface | 6W | 85-265V | 3000-6000K | IC Isolated | 60LM/W | 80 | White | 120X120X36mm | 46.5 | 28 | 26.5 | 40 |
| 12W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 170X170X36mm | 61 | 23.5 | 39.5 | 30 | ||
| 18W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 225X225X36mm | 49 | 23.5 | 47 | 20 | ||
| 24W | 85-265V | 3000-6000K | IC Isolated | 70-80LM/W | 80 | White | 300X300X36mm | 66 | 24.5 | 67 | 20 |
