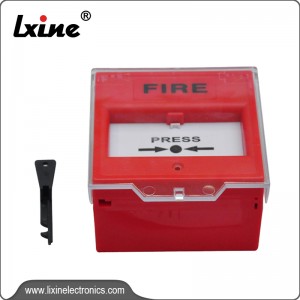

Conventional manual fire alarm button LX-501

Short Description:

This fire alarm button is connected with fire alarm system.When the button is activated by hand in the event of a fire, fire alarm bell connected with fire alarm system will sound an alarm.

*Voltage range:12V-50V DC

* Maximum allowable current:3A

* Working temp: -10℃-+65℃

*Working humidity: 10﹪-90﹪RH

*Durable plastic case and elegant style, built-in ABS plastic panel with printing”PRESS HERE” is reusable.

Security:with the emergency alarm button,you can bring enough safety to you and your family in the event of an emergency,and also inform  firefighters to rescue timely.


Product Detail

Product Tags

Regular Info

Model: LX-501 MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: Regular 2 years guarantee
 under normal operation



Packing Data

QTY/CTN CARTON SIZE QTY/20GP
100pcs 50x32x45.5CM 36100pcs

Technical Parameters

1. Voltage range: 12V--50VDC

2. Operating current: 3A

3. Operating temperature: -10℃ -- +65℃

4. Working humidity range: 10%--90% RH

5. Product size: 10.4x9.2 x5.6cm

6. Installation: indoor or dry occasion

7. Push button panel material: plastic, can reuse

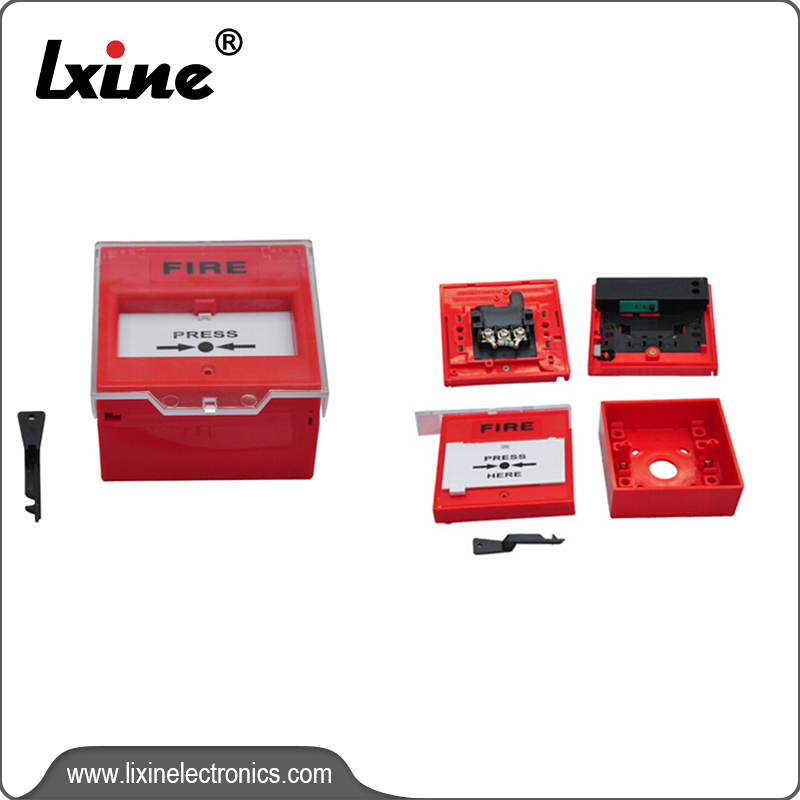

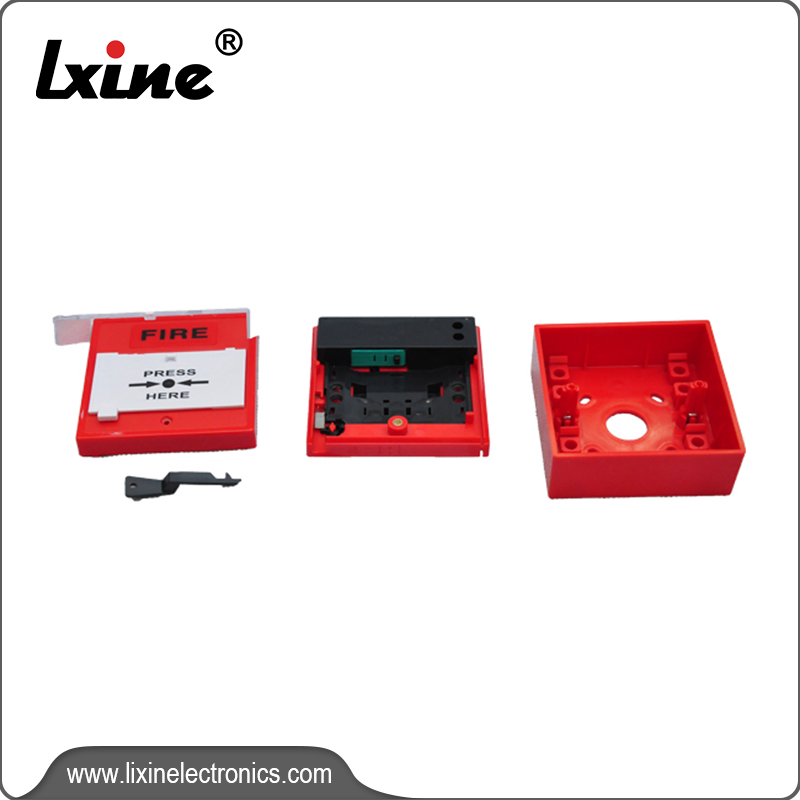

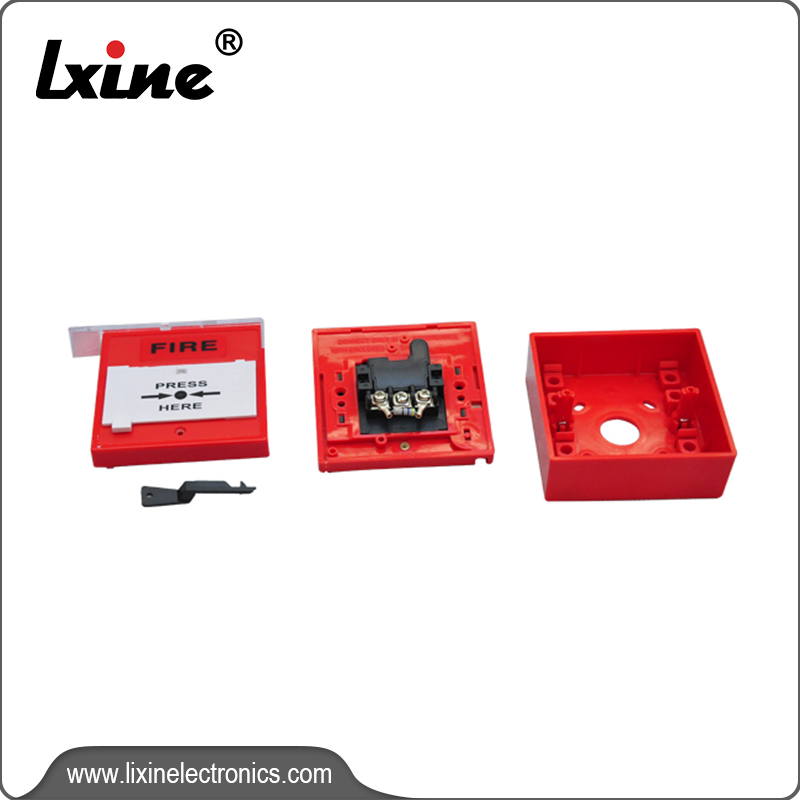

Parts Description

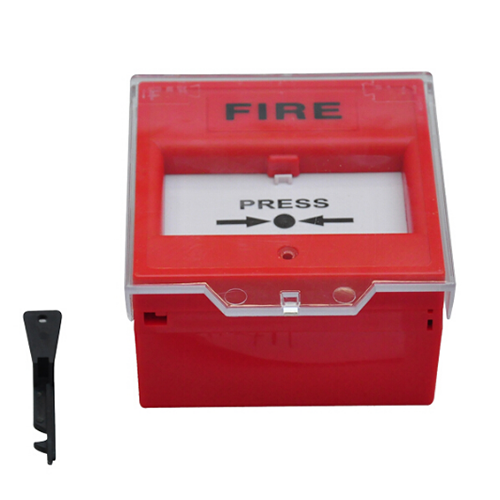

1

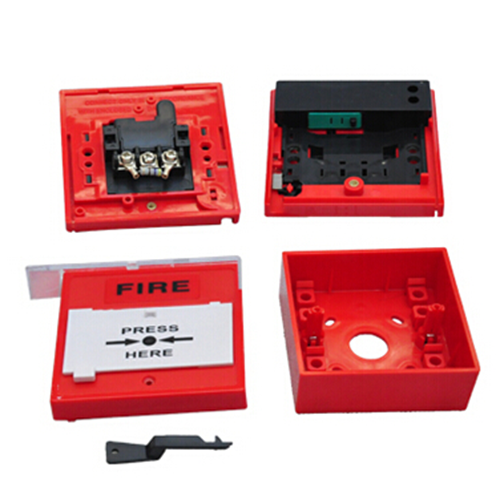

2
