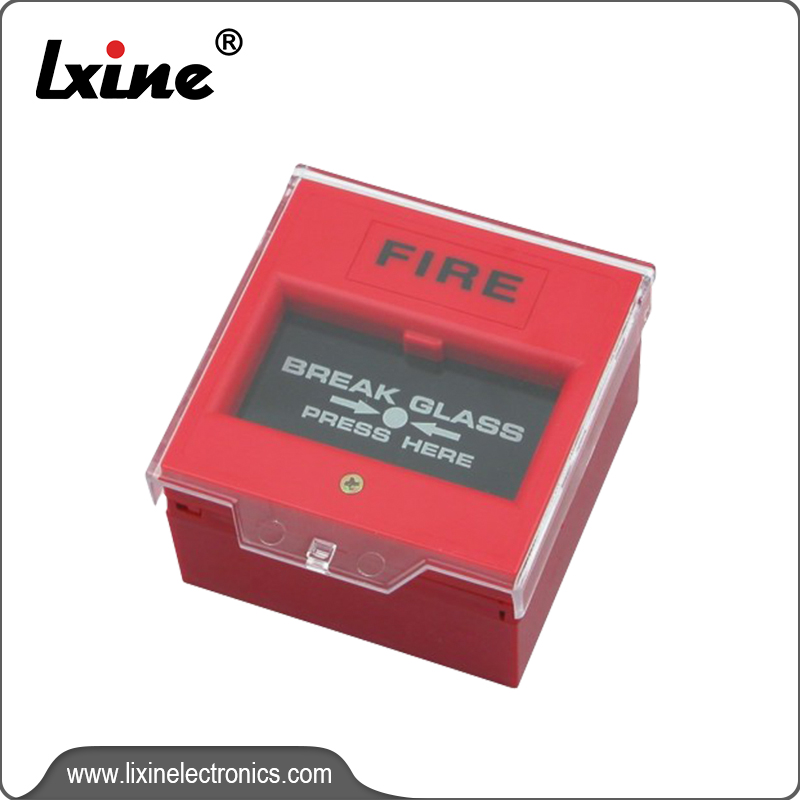

This fire alarm button is connected with main controller.When the button is activated by hand in the event of a fire, fire alarm bell connected with main controller will sound an alarm.

*Voltage:9V-24VDC

* static current: ≤10mA

* alarm current: ≤20mA

* Working temp: -5℃-+65℃

*Working humidity: 10﹪-90﹪RH

*Durable plastic case and elegant style, built-in glass panel for breaking when fire occurs



*Using method:in NO-alarm state green indicator flashing,

open the transparent cover,break the glass,the device is in alarm state and red indicator shining



Security:with the emergency alarm button,you can bring enough safety to you and your family in the event of an emergency,and also inform  firefighters to rescue timely.



Practice fire safety:

Expose everyone to the sound of the fire alarm in daily life and explain what the sound means and how to operate the fire alarm button if a fire occurs.Discuss in advance two exits from each room and an escape route to the outside from each exit.Teach them to crawl along the floor to stay below dangerous smoke,fumes and gases.Determine a safe meeting place in advance for all members outside the building.

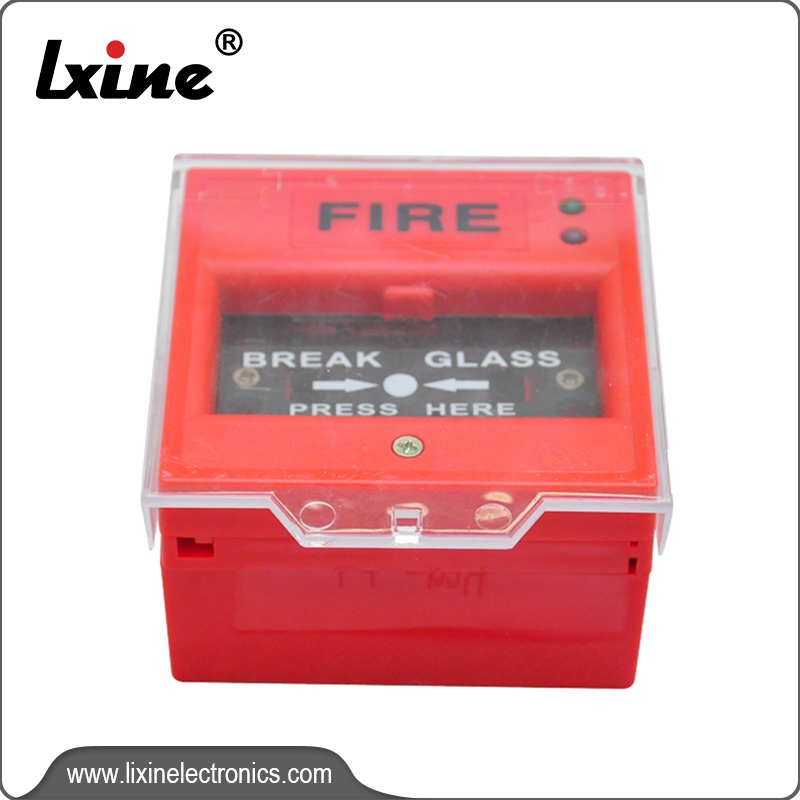

This  call point is connected with fire alarm control panel.When the button is activated by hand in the event of a fire, fire alarm bell connected with alarm control panel will sound an alarm.

*Voltage:9V-24VDC

* static current: ≤10mA

* alarm current: ≤20mA

* Working temp: -5℃-+65℃

*Working humidity: 10﹪-90﹪RH

*Durable plastic case and elegant style, built-in ABS panel with printing”PRESS HERE” guiding people how to use it. The alarm button is reusable becase of the plastic panel.

*Two color indicators :In NO-alarm state green indicator flashing,

When alarming state red indicator shining.



Security:with the emergency alarm button,you can bring enough safety to you and your family in the event of an emergency,and also inform  firefighters to rescue timely.

This fire alarm button is connected with fire alarm system.When the button is activated by hand in the event of a fire, fire alarm bell connected with fire alarm system will sound an alarm.

*Voltage range:12V-50V DC

* Maximum allowable current:3A

* Working temp: -10℃-+65℃

*Working humidity: 10﹪-90﹪RH

*Durable plastic case and elegant style, built-in ABS plastic panel with printing”PRESS HERE” is reusable.

Security:with the emergency alarm button,you can bring enough safety to you and your family in the event of an emergency,and also inform  firefighters to rescue timely.

This fire alarm button is connected with main controller.When the button is activated by hand in the event of a fire, fire alarm bell connected with main controller will sound an alarm.
*Voltage:12V-50V DC

* Operating current: 3A

* Working temp: -10℃-+65℃

*Working humidity: 10﹪-90﹪RH



*Using method:Break the panel glass immediately once finding a fire



Security:with the emergency alarm button,you can bring enough safety to you and your family in the event of an emergency,and also inform  firefighters to rescue timely.

This fire alarm button is connected with main controller.When the button is activated by hand in the event of a fire, fire alarm bell connected with main controller will sound an alarm.
*Voltage:12V-50V DC

* Operating current: 3A

* Working temp: -10℃-+65℃

*Working humidity: 10﹪-90﹪RH



*Using method:Break the panel glass immediately once finding a fire



Security:with the emergency alarm button,you can bring enough safety to you and your family in the event of an emergency,and also inform  firefighters to rescue timely.

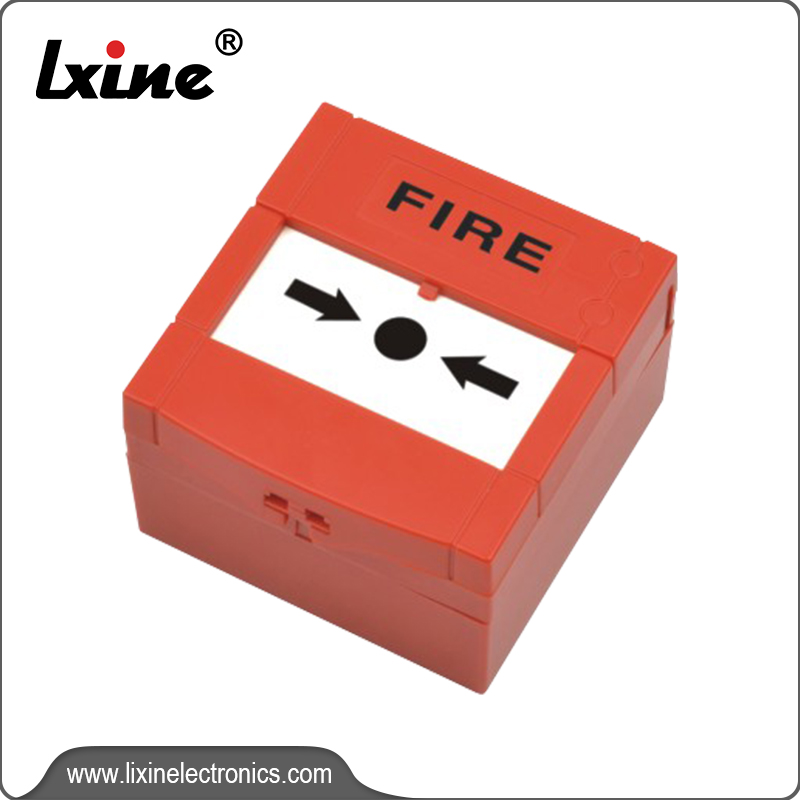

Technical Parameters 1. Voltage range: 9V--24VDC 2. Static current: ≤10mA 3. Alarm current: ≤20mA 4. Operating temperature: -5℃ -- +65℃ 5. Working humidity: 10%--90% RH 6. Product size: 10.4x9.2 x5.6cm 7. Installation: indoor or dry occasion 8. LED indicator: in no-alarm state,green indicator flashing,when alarming red indicator shining Packing Data Item No. QTY/CTN CARTON SIZE QTY/20GP LX-509 100pcs 51x33x46 36100pcs

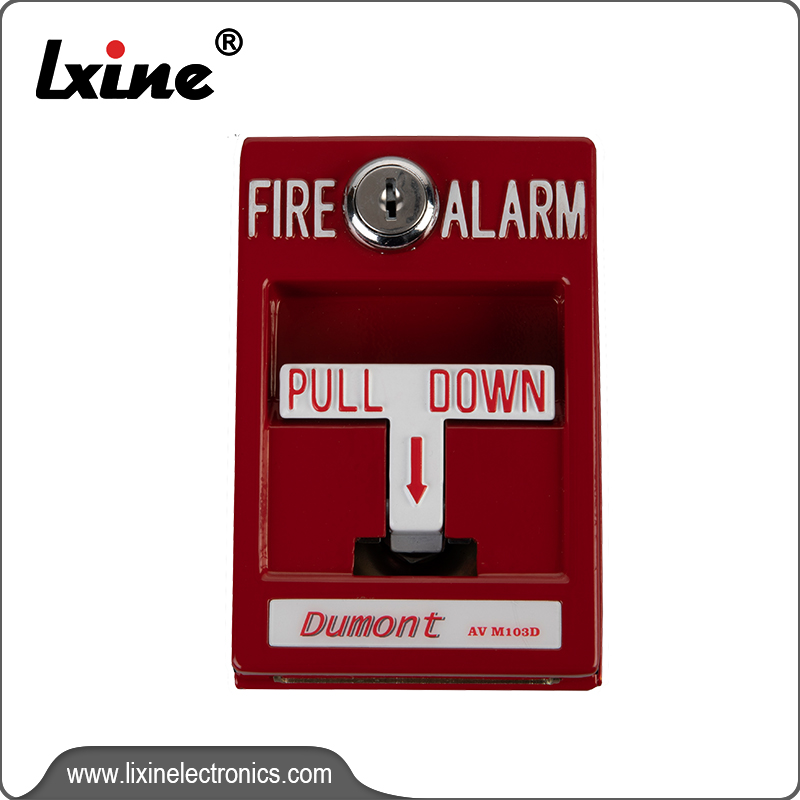

This pull station is is a manual alarm swtich which connects with fire alarm system.When pulling down the T handle in the event of a fire, fire alarm bell connecting with system will sound an alarm.
*Signal power:10Amps@120VAC

* Main material:Die-casting alloy panel+thicker steel plate+electronic components,electrostatic coating surface,base plate color zinc plating

*Color: Red+ white

* T-type operating handle,including tip glass rod

*Metal transmission structure, three-dimensional signs

*Single action and double action are available



*Application: This fire alarm pull station is suitable to be used in buildings, workshops and warehouses
