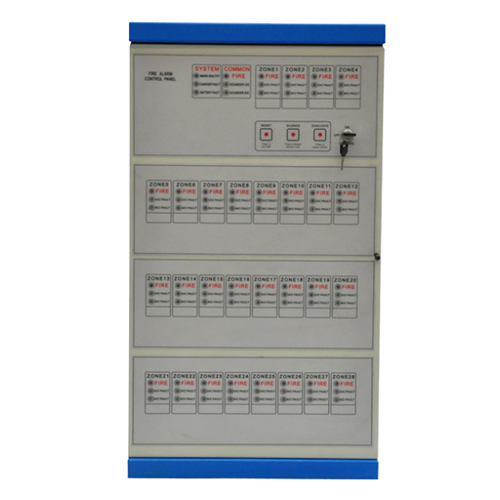

**Product Introduction: Conventional Fire Alarm Panel, 1-36 Zones**

*Short Description:*

A fire alarm system, also referred to as an automatic fire alarm system, is a crucial component in ensuring the safety of spaces. Comprising trigger devices, fire alarm devices, and auxiliary function devices, this system detects early signs of fire such as smoke, heat, and flames. The fire detector converts these physical quantities into electrical signals, which are then transmitted to the fire alarm controller. Simultaneously, the system provides information about the location and time of the fire, enabling timely response to minimize potential damages. This Conventional Fire Alarm Panel stands as a powerful tool in the ongoing battle against fires, serving to protect lives and property.



*Key Features:*



1. **Cost-Effective Solution:** These conventional panels offer a cost-effective solution for fire detection in installations of various sizes, providing options ranging from 1 to 36 zones.



2. **Versatile Connectivity:** The control panel seamlessly connects with a variety of conventional devices, including smoke detectors, heat detectors, manual call points, fire alarms, and fire alarm bells. Together, these devices form a cohesive system to detect and warn individuals through visual and audio appliances in the presence of smoke, fire, carbon monoxide, or other emergencies.



3. **Fault Detection:** The panel incorporates a buzzer that sounds in case of faults such as detector faults, zone wiring issues, AC mains failure, battery faults, or disconnection, as well as alarm output wiring faults.



*Specifications:*



- **Input Voltage:** 240VAC +/-10%, 50/60HZ

- **Built-in Battery:** 24VDC rechargeable lead-acid battery serving as a backup power supply

- **Charging Voltage Protection:** 1.6Ah glass fuse

- **Sounder Output:** 24V nominal EOL 10K resistor

- **Zoned Visual Indicators:** Red for alarm, Yellow for trouble

- **Continuous Signal during Alarm:** Ensures constant alertness

- **Low/No Power and Battery Detection:** Alerts users to power and battery status

- **Automatic Loading and Testing of Battery:** Streamlines maintenance processes

- **Battery Lead Reversal Protection:** Ensures battery safety

- **Evacuate (Alarm Resound):** Prompts immediate action

- **LED Test:** Facilitates system testing



*Product Size:*- 30*20*9.6cm / 31*32*9.6cm / 31*44*9.6cm / 31*44*9.6cm / 31*56*9.6cm



This Conventional Fire Alarm Panel is designed with precision and reliability to meet the safety needs of diverse installations, providing a comprehensive solution for effective fire detection.
