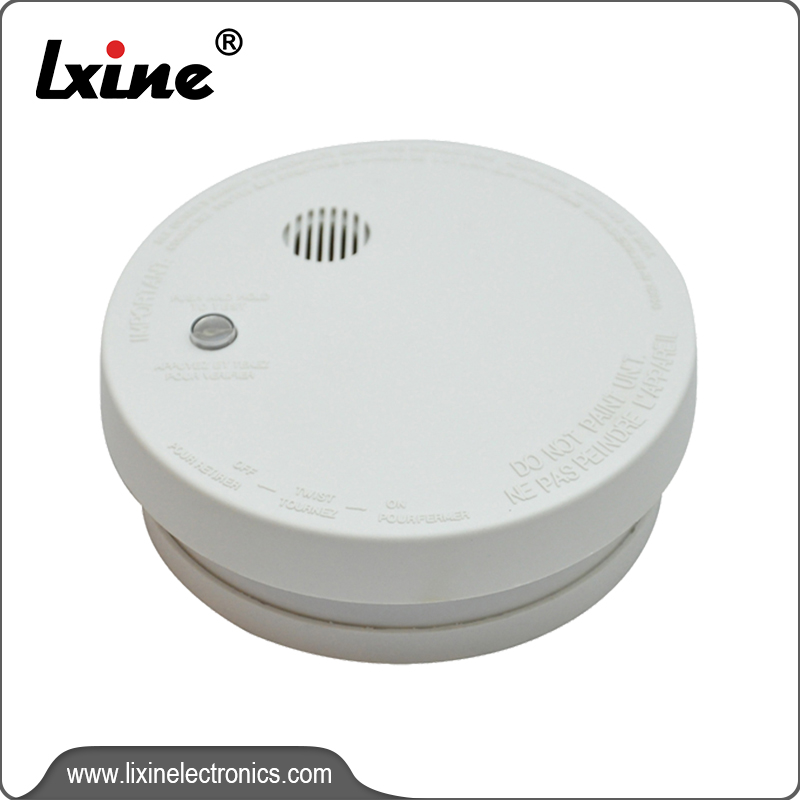

Photoelectric smoke detector with battery LX-223

Short Description:

* Model LX-223 is a stand alone smoke detector supplied by a 9V battery.



*Photoelectric sensor,high sensitivity

*Red led indicate alarm

*The smoke detector is power saving.Static current is less than 20uA.Alarm current is 10mA.But alarm sonority is higher than 85db at 3meters distance.



*Test: It is important to test the detector weekly to make sure it is working properly.Firmly press and hold the test button at least 5 seconds,the smoke alarm will sound 3 short beeps followed by a 2-second pause and then repeats.The alarm may sound up to a few seconds after releasing the button.


Product Detail

Product Tags

Regular Info

Model: LX-223 MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: Regular 2 years guarantee
under normal operation



Packing Data

Item No. QTY/CTN CARTON SIZE QTY/20GP
LX-223 100pcs 42x23x55 56000



Technical Parameters

1. Power supply: 9VDC

2. Static current: 20μA

3. Alarm current: 10mA

4. Alarm sonority: ≥85dB

5. Stakeout area: 20 centiare

6. Working temperature: -10℃--+45℃

7. Working humidity: <95%RH

8. Photoelectric sensor, LED indicator

9. Product size: 10.2x10.2x3.5cm

Technical Parameters

1. Power supply: 9VDC

2. Static current: 20μA

3. Alarm current: 10mA

4. Alarm sonority: ≥85dB

5. Stakeout area: 20 centiare

6. Working temperature: -10℃–+45℃

7. Working humidity: <95%RH

8. Photoelectric sensor, LED indicator

9. Product size: 10.2×10.2×3.5cm

Packing Data

Item No. QTY/CTN CARTON SIZE QTY/20GP
LX-223 100pcs 42x23x55 56000
