LED EMERGENCY light with self-test function

*Fire retardant ABS housing, safe material for fire protection

*Light source: SMD2835 2*84PCS LEDs with high illumination,

2 round heads are 360degrees adjustable

*Input Voltage: AC100V-240V 50/60HZ suitable for USA and middle east market

*AC Power: 15W

*Emergency Illumination: >1620lm.

*Built-in lead-acid battery provides at least 180minutes backup power in the event of a power outage:12V 7AH,it is rechargeable battery,maximum 24 hours for full recharging time,with battery overcharge and discharge protection

*Powerful self-test and self-diagnostic function: As soon as AC power is supplied to the emergency light ,the unit will automatically initiate a self-test and self-diagnostic test.Red led indicator Verifies battery failure (disconnection、shorted、voltage drops below than acceptable value), charger board failure, lamps failure,switching power supply failure at every 5 seconds.

*Except self-test function, the unit has a test button for manual test.

*Dimming option:When the luminaire is in emergency mode, with the test button, we can choose the illumination of 100%, 50%, 33% or turned off,either to increase autonomy time or not to consume the battery power unnecessarily. This option is canceled when the

network is restored.

*Degrees of cover protection: IP65

*Suitable for both commercial and warehouse areas

*1PC emergency light is packed into a white box or color box, customized packaging is available

What to do in case of fire:

1. Do not be panic,stay calm.

2. Leave the building as quickly as possible.Touch doors to feel if they are hot before opening them.Use and alternate exit if necessary.Crawl along the floor to stay below dangerous smoke, and don’t stop to collect anything.

3. Meet a pre-arranged meeting place outside the building.

4. Call the fire department form outside the building.

5. Do not go back inside a burning building.Wait for the arrival of the fire department.

Caution:Always turn off power at main fuse box or circuit breaker before taking troubleshooting action.Do not disconnect battery or AC power to quiet an unwanted alarm.This will remove your protection.Fan the air or open a window to remove smoker or dust.

EMERGENCY LIGHTS LED TYPE
*Traditional bulkhead emergency lamp
*Clear polycarbonate diffuser & fire retardant ABS base,safe material
*20pcs SMD LED lights

*Test button and charge indicator light
*Optional Voltage:120VAC and 277V AC for different electricity demand
*Rated Power:7W
*Nickel cadmium battery provides at least 180 minutes backup power in the event of a power outage:3.6V 4.5Ah,rechargable battery with overcharge and discharge protection ,24hours for full recharging time *UL approval emergency led light suitable for USA,middle east market
*Wall and ceiling mounting can be finished in minutes easily

*1PC LED emergency light is packed into a white box or color box, 10PCS/master carton,customized color box is available

WATERPROOF EMERGENCY LIGHT LED TYPE

*Traditional bulkhead emergency light

*Clear polycarbonate diffuser & fire retardant ABS base,safe material

*20pcs SMD LED lights

*Test switch and charge indicator light

*Optional Voltage:120VAC and 277V AC for different electricity demand

*Rated Power:7W

*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:3.6V 4.5Ah,rechargable battery and 24hours for full recharging time,with overcharge and discharge protection

*UL approval emergency led light suitable for USA,middle east market

*Wall and ceiling mountable,operates in damp,but not wet,and dry conditions

*1PC LED emergency light is packed into a white box or color box, 10PCS/master carton,customized color box is available

*Instruction when operating the emergency lighting:

1. The installation and maintenance of the emergency light must be operated by a professional man

2. The AC powder must be switched off before replacing the batteries and checking the LED lighting components.

2.Test the product regularly to make sure all the functions of it run normally.

 Practice fire safety:

Expose everyone to the sound of the fire alarm in daily life and explain what the sound means and how to operate the fire alarm button if a fire occurs.Discuss in advance two exits from each room and an escape route to the outside from each exit.Teach them to crawl along the floor to stay below dangerous smoke,fumes and gases.Determine a safe meeting place in advance for all members outside the building.

 What to do in case of fire:

1. Do not be panic,stay calm.

2. Leave the building as quickly as possible.Touch doors to feel if they are hot before opening them.Use and alternate exit if necessary.Crawl along the floor to stay below dangerous smoke, and don’t stop to collect anything.

3. Meet a pre-arranged meeting place outside the building.

4. Call the fire department form outside the building.

5. Do not go back inside a burning building.Wait for the arrival of the fire department.

Caution:Always turn off power at main fuse box or circuit breaker before taking troubleshooting action.Do not disconnect battery or AC power to quiet an unwanted alarm.This will remove your protection.Fan the air or open a window to remove smoker or dust.

DOUBLE HEADS EMERGENCY LIGHT LED TYPE

*Durable fire retardant ABS housing, safe material, white and black 2 colors optional

*Light source:2 led heads,3.2V/2W for each,360 degree adjustable

*Test button and charge indicator light

*Optional Voltage:120VAC and 277V AC for different electricity demand

*Rated Power:6W

*Lead-acid battery provides at least 3hours backup power in the event of a power outage:6V 4.5Ah,rechargeable battery and 24hours for full recharging time,with overcharge and discharge protection

*UL approval emergency led light suitable for USA,middle east market

*Wall and ceiling mountable,operates in damp,but not wet,and dry conditions

*1PC LED emergency light is packed into a white box or color box, 10PCS/master carton,customized color box is available

SAFETY  INSTRUCTIONS.

1. Review the diagrams thoroughly before beginning.If you feel you do not have electrical wiring experience,refer to a do-it-yourself wiring handbook or have your fixture installed by a qualified licensed electrician.
2. All electrical connections must be in accordance with local codes,ordinances,and the National Electric Code.If you are unfamiliar with methods of installing electrical wiring,secure the services of a qualified licensed electrician.
3. Before starting the installation,disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box .Turning the power off using the light switch is not sufficient to prevent electrical shock.
4. Do not use outdoors.
5. Do not let power supply cords touch hot surfaces.
6. Do not mount near gas or electric heaters.
7. Use caution when servicing batteries.Battery acid can cause burns to skin and eyes.If acid is spilled on skin or in eyes,flush acid with fresh water and contact a physician immediately.
8. Equipment should be mounted in location and at heights where it will not readily be subject to tampering by unauthorized personnel.
9. The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.
10. Do not use this equipment for other than intended use.
11. All servicing should be performed by qualified personnel only.
12. Allow battery to charge for 24 hours before first use.

DOUBLE HEADS EMERGENCY LIGHT LED TYPE

*Durable fire retardant ABS housing, safe material, white and black 2 colors optional

*Light source: adjustable 2 round heads with led ,3.2V/2W for each

*Test button and charge indicator light

*Optional Voltage:120VAC and 277V AC for different electricity demand

*Rated Power:8W

*Lead-acid battery provides at least 3hours backup power in the event of a power outage:6V 4.5Ah,rechargeable battery and 24hours for full recharging time,with overcharge and discharge protection

*

*UL approval emergency led light suitable for USA,middle east market

*Wall and ceiling mountable,operates in damp,but not wet,and dry conditions

*1PC LED emergency light is packed into a white box or color box, 6PCS/master carton,customized color box is available

SAFETY  INSTRUCTIONS.

1. Review the diagrams thoroughly before beginning.If you feel you do not have electrical wiring experience,refer to a do-it-yourself wiring handbook or have your fixture installed by a qualified licensed electrician.
2. All electrical connections must be in accordance with local codes,ordinances,and the National Electric Code.If you are unfamiliar with methods of installing electrical wiring,secure the services of a qualified licensed electrician.
3. Before starting the installation,disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box .Turning the power off using the light switch is not sufficient to prevent electrical shock.
4. Do not use outdoors.
5. Do not let power supply cords touch hot surfaces.
6. Do not mount near gas or electric heaters.
7. Use caution when servicing batteries.Battery acid can cause burns to skin and eyes.If acid is spilled on skin or in eyes,flush acid with fresh water and contact a physician immediately.
8. Equipment should be mounted in location and at heights where it will not readily be subject to tampering by unauthorized personnel.
9. The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.
10. Do not use this equipment for other than intended use.
11. All servicing should be performed by qualified personnel only.
12. Allow battery to charge for 24 hours before first use.

The dual head emergency light can be used in a 120V/277V circuit as a home,commercial and industrial lighting,perfect for corridor,hospital,apartment,school,hotel,restaurant,office building,supermarket,etc.

*Durable fire retardant ABS housing, simple and elegant design, white and black colors optional

*Light source:2 round lamp heads, 360 degree rotatable,2W Led lamp heads equipped with 10pcs white leds each.

*Test button and charge indicator light let you know the emergency light has power and the battery is working.

*Emergency light built-in lead-acid battery provides at least 3hours of emergency operation during a power outage:6V 4.5Ah,rechargeable battery and 24hours for full recharging time,with overcharge and discharge protection

*

*UL approval

*Easy installation in minutes:can be wall or ceiling mounted

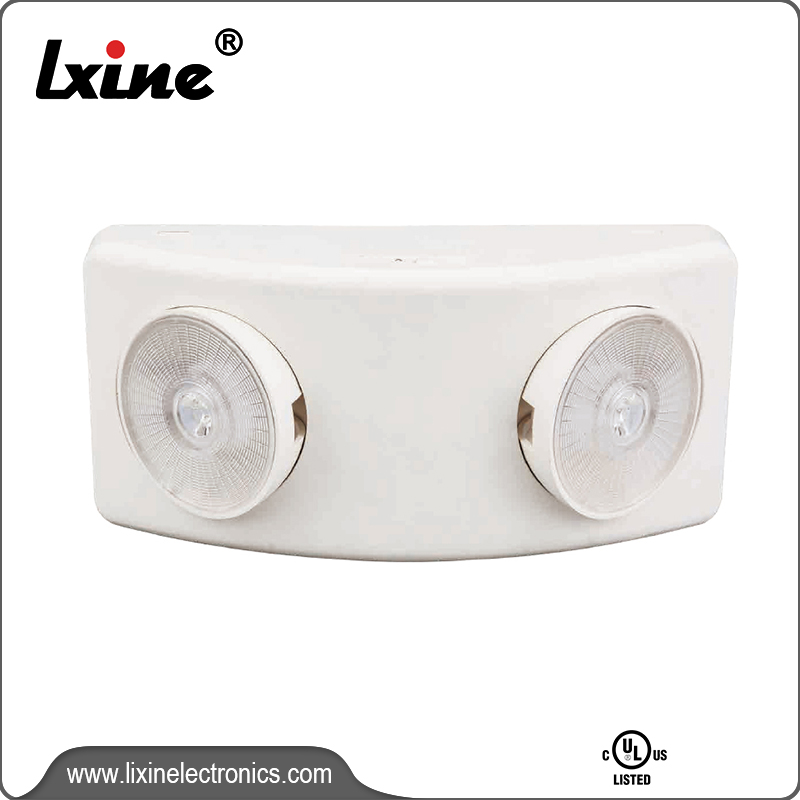

DOUBLE HEADS EMERGENCY LIGHTING LED TYPE

*Durable fire retardant ABS housing, safe material, white and black 2 colors optional

*Light source: SMD led 2*3.2v/2W

*Test button and charge indicator light

*Optional Voltage:120VAC and 277V AC 50/60HZ for different electricity demand

*Rated Power:6W

*Lead-acid battery provides at least 3hours backup power in the event of a power outage:6V 4.5Ah,rechargeable battery and 24hours for full recharging time,with overcharge and discharge protection

*

*UL approval emergency led light suitable for USA,middle east and asian market

*Wall and ceiling mountable,operates in damp,but not wet,and dry conditions

*1PC LED emergency light is packed into a white box or color box, 6PCS/master carton,customized color box is available

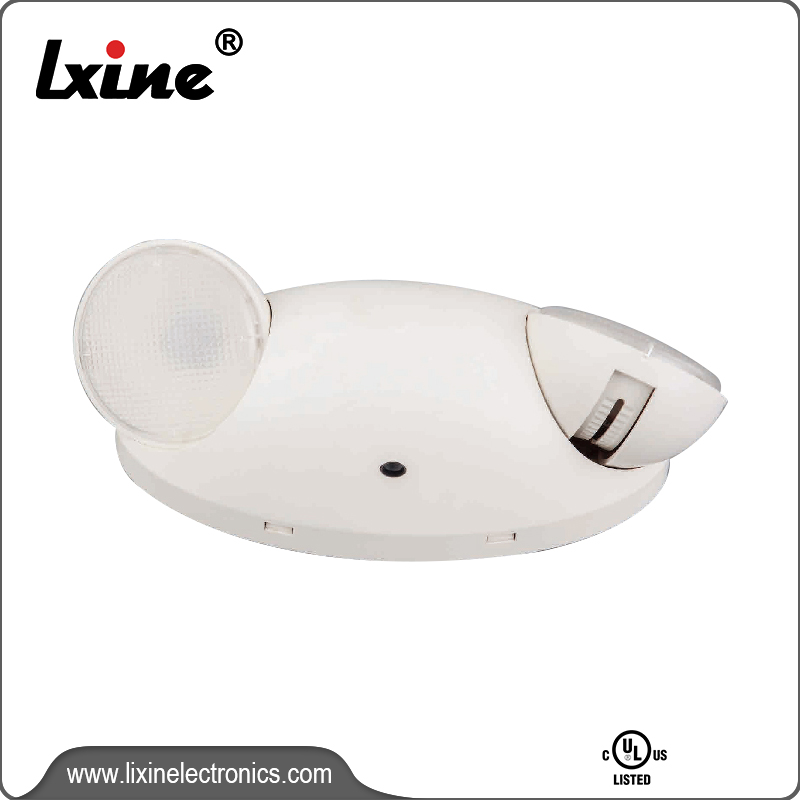

*UL approval
*Durable fire retardant ABS housing, simple and elegant white design

*Light source:2 round adjustable lamp heads equipped with 2pcs 1W led bulbs

*Test button and charge indicator light let you know the emergency light has power and the battery is working.

*Emergency light built-in Ni-Cd battery provides at least 3hours of emergency power during main electricity outage,

4.8V 1000mAh rechargeable battery, 24 hours for full recharging time,battery with overcharge protection

* The dual head emergency light can be used in a 120V/277V circuit as a home,commercial and industrial lighting,perfect for corridor,hospital,apartment,school,hotel,restaurant,office building,supermarket,etc.
*Easy wall mounting can be finished in minutes, maximum mounting height: 12.98ft (3.89 m).

*Durable fire retardant ABS housing, safe material, white color

*Light source:2 round rotatable heads with 2pcs 1W SMD leds

 *Test button and charge indicator light
*Optional Voltage:120VAC and 277V AC for different electricity demand
*Rated Power:3W
*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 1000mAh,rechargeable battery with overcharge protection,24 hours for full recharging time,
*UL approval
*Wall mountable,operates in damp,but not wet,and dry conditions, maximum mounting height: 14.91ft (4.47 m).

NOTE:

Before starting the installation, disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box .Turning the power off using the light switch is not sufficient to prevent electrical shock.

EMERGENCY LIGHT LED TYPE

 LED emergency LIGHTS replace the traditional models offering many additional advantages. This is the cheapest, most practical option to light poorly lit places due to a lack of electrical supply. LED emergency lights are highly energy-efficient and powerful enough to meet your lighting needs during peroid of power shortage.

*Elegant bulkhead emergency light, made from clear polycarbonate diffuser and fire retardant ABS housing, the material is more safe in an event of fire.

*Light source is 20pcs SMD5050 leds with enough luminance.

*Double voltage optional:120VAC and 277V AC can use for different electricity demand

*Rated Power:7W

*Nickel cadmium battery provides at least 3 hours backup power in the event of a power outage:3.6V 4.5Ah,rechargeable battery with overcharge and discharge protection,24 hours of full charge time

*This model is UL approved.

*Wall mountable,suitable for  indoor use

*1PC LED emergency light is packed into a white box or color box, 10PCS/master carton,customized color box is available

 *Caution:

1.The installation and maintenance of the emergency light must be operated by a professional man

2.The AC powder must be switched off before replacing the batteries and checking the LED lighting components.

3.Allow battery to charge for 24 hours before first use.
