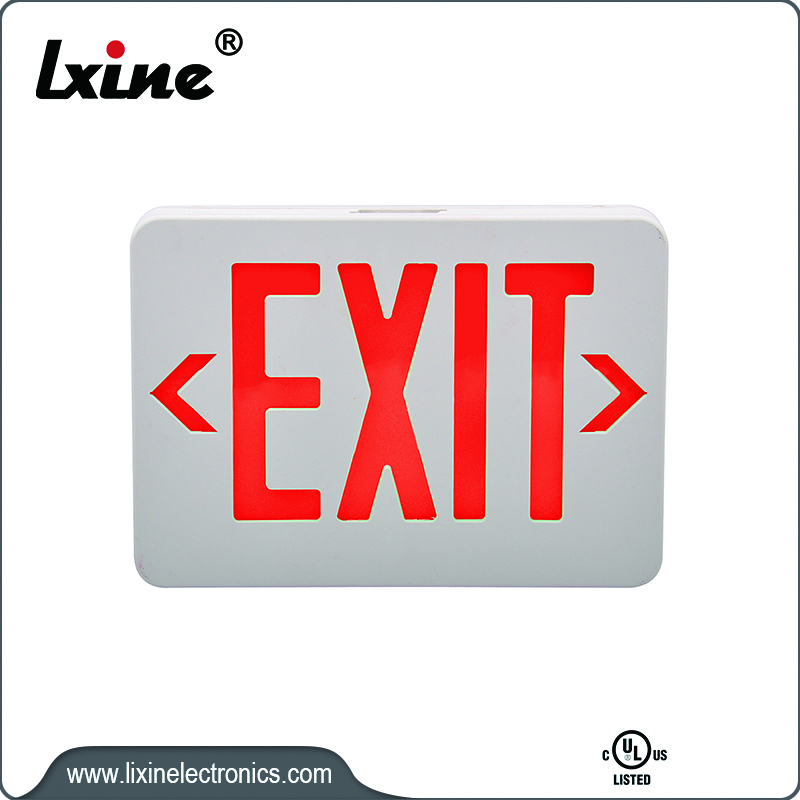

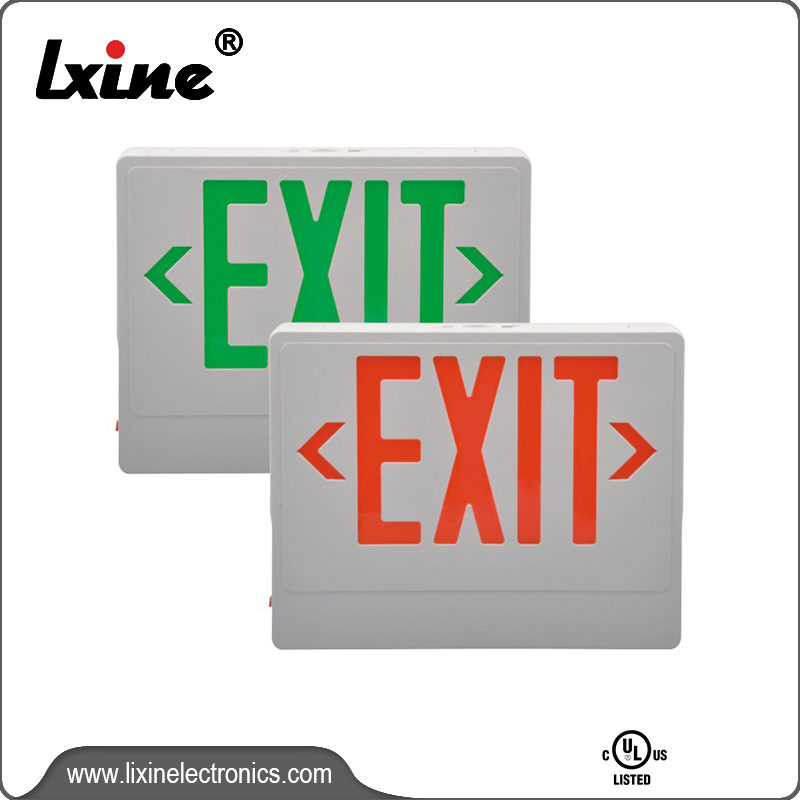

EXIT SIGN LIGHT

*Fire retardant ABS housing, safe material for fire protection

*12PCS LEDs inside housing,two colors green and red are available

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Input Voltage:120V/277V AC 50/60HZ for different electricity demand

*Rated Power:8W

*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 650MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection

*UL approval fire exit signs are suitable for USA,middle east market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

*Single or Double faces are optional: Extra face plate included for optional double sided use.The bracket is packed inside of the light housing

*Each exit sign light with removeable directional arrow inserts in accessory bag

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

*Durable fire retardant ABS housing, safe material for fire protection

*Dual Voltage optional:AC 120V/277V 50/60HZ

*Rated Power:8W

*12PCS LEDs inside housing,bright and longlife

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Built-in nickel cadmium battery provides at least 180 minutes backup power when electricity shortage:4.8V 650MAH, rechargeable battery with battery overcharge and discharge protection,24 hours full charging time

*UL approval,suitable for USA,middle east and asian market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

*Suitable for both commercial and residential areas

*Durable fire retardant ABS housing, safe material for fire protection

*Dual Voltage optional:AC 120V/277V 50/60HZ

*Rated Power:8W

*12PCS LEDs inside housing,bright and longlife

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Built-in Ni-Cd battery provides minimum 3 hours backup power when electricity outage:4.8V 650mAh, rechargeable battery with battery overcharge and discharge protection,24 hours full charging time

*UL approval,suitable for USA,middle east and asian market

*Multiple –Mounting:The emergency exit light can be installed easily in 3 methods:ceiling mounted,back mounted,end mounted

*Suitable for both commercial and residential areas

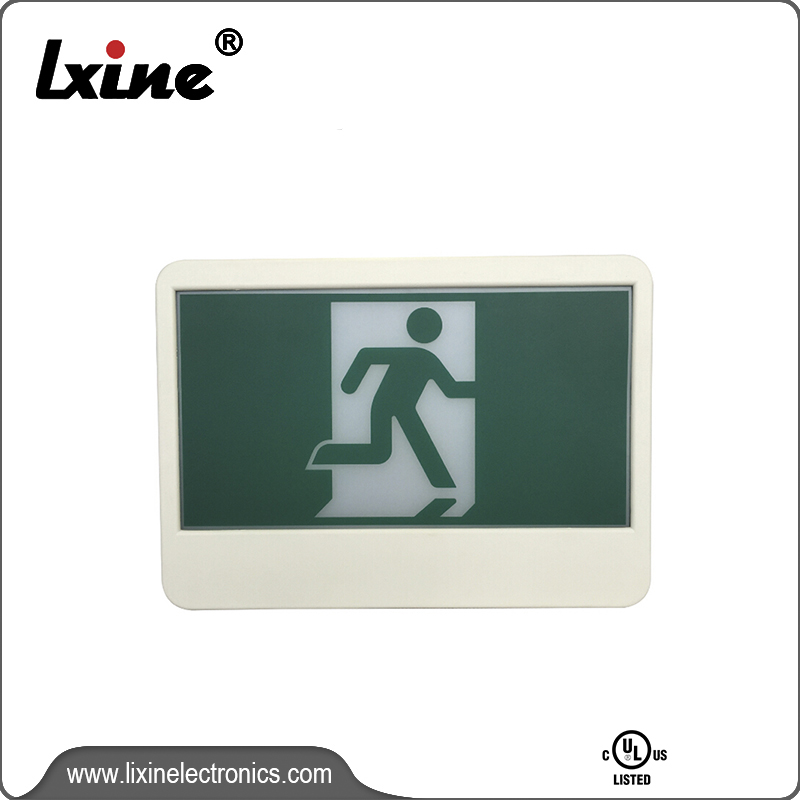

 EMERGENCY EXIT SIGN LIGHT

*Fire retardant ABS housing, safe material for fire protection

*12PCS LEDs inside housing

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Input Voltage:120V/347V AC 50/60HZ for different electricity demand

*Rated Power:8W

*Nickel cadmium battery provides at least 180 minutes backup power when electricity shortage:4.8V 650MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection

*UL approval,suitable for Canada market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

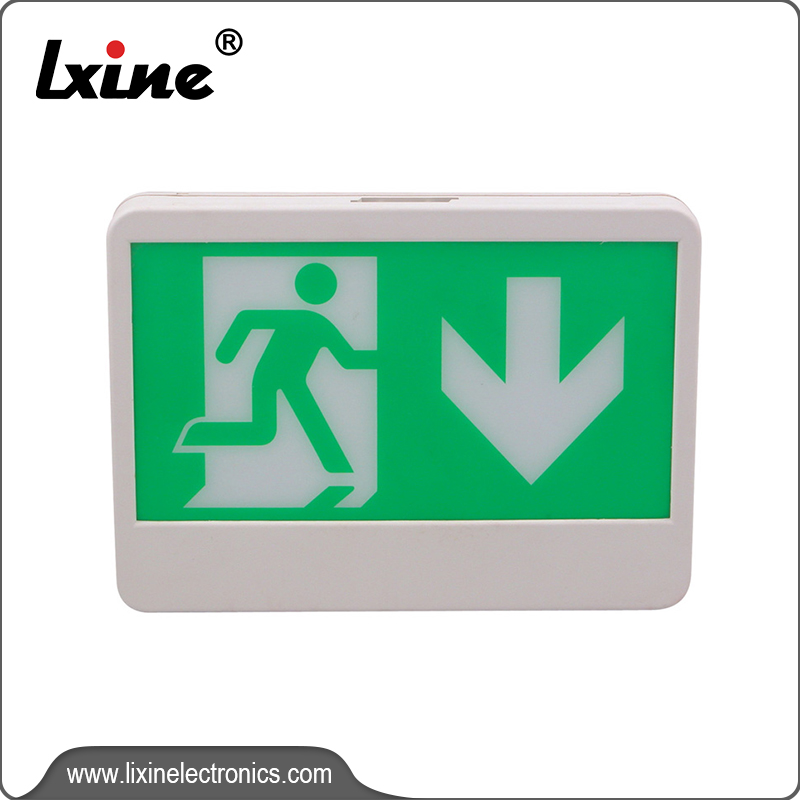

*4 kinds of pictograms optional: running man,running man with right arrow,running man with left arrow,running man with down arrow

*Suitable for both commercial and residential areas

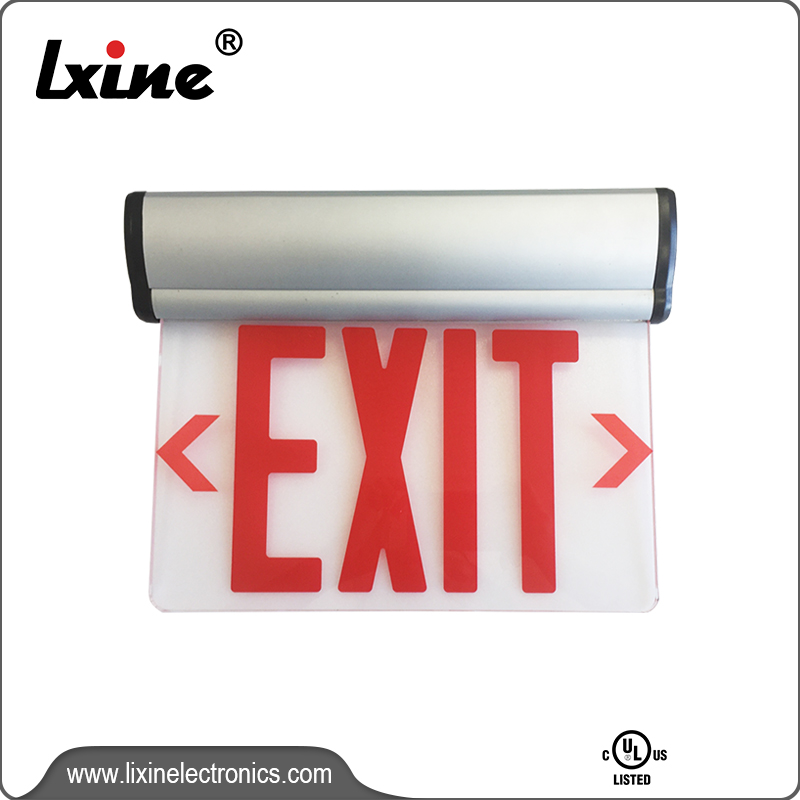

LED EMERGENCY EXIT SIGN

*Aluminium alloy housing and high grade acrylic panel with good effect of light transmission

*8PCS LEDs, green and red color optional

*Input Voltage:Double voltage AC120V and AC277V 50/60HZ suitable for USA and middle east market

*AC Power:3W

*The exit emergency light is UL listed

*Built-in nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,maximum 24 hours for full recharging time,with battery overcharge protection

Double colors green and red lamps to indicate charging and different state of test

*Powerful self-test and self-diagnostic function: As soon as AC power is supplied to the fixture, the unit will automatically initiate a self-test and self-diagnostic Test as follows:

1.Verifies battery failure (disconnection、shorted、voltage drops below than acceptable value), charging board failure, lamps failure and transformer failure at every 5 seconds.

2. 10minutes self-testing every month.

3. 180minutes self-testing on the 6th month of the year after installation.

4. 180minutes self-testing on the 12th month of the year after installation.

5. Factory pre-set all functions-Do not need field adjustment.

*Extra test button for manual test,pressing button as follows:

 *Multiple –Mounting: There is extra accessory kit for easy installation, ceiling mounting or wall mounting could be finished in minutes

*Removeable arrow stickers included in accessory kit

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

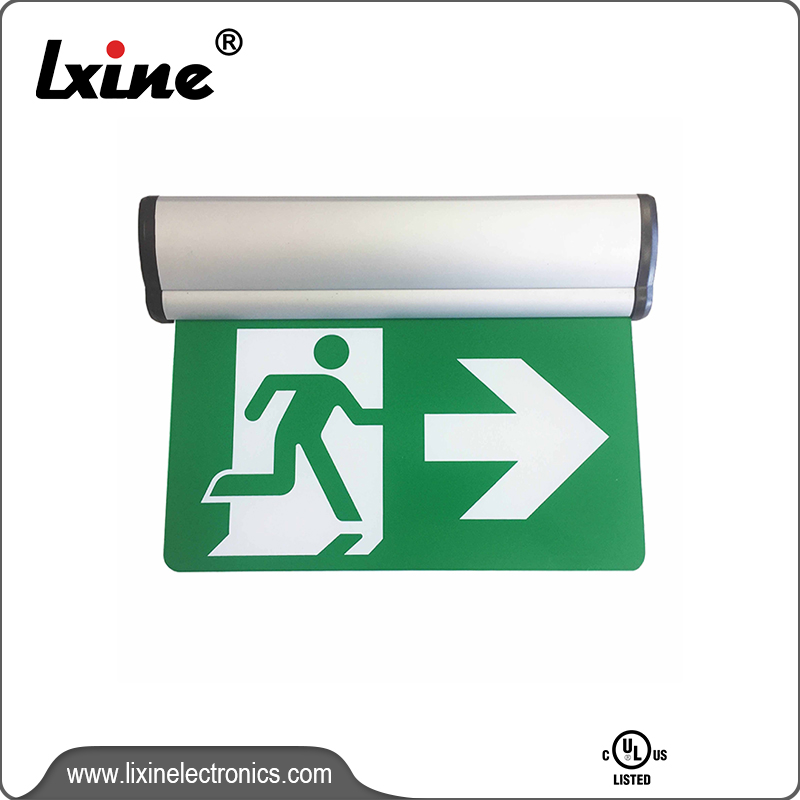

LED EMERGENCY EXIT SIGN

*Aluminium alloy housing and high grade acrylic panel with good effect of light transmission

*14PCS LEDs light source

*Powerful self-test and self-diagnostic function: As soon as AC power is supplied to the exit sign light ,the unit will automatically initiate a self-test and self-diagnostic test.Red led indicator Verifies battery failure (disconnection、shorted、voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure

*Input Voltage:Double voltage AC120V and AC347V 50/60HZ suitable for Canada market

*Rated Power:3W

*Built-in nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,maximum 24 hours for full recharging time,with battery overcharge protection

*UL approval

*Multiple –Mounting: There is extra accessory kit for easy installation, ceiling mounting or wall mounting could be finished in minutes

*Double face configuration: Different pictograms are optional,such as  running man,running man with left arrow, running man with right arrow,running man with down arrow

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

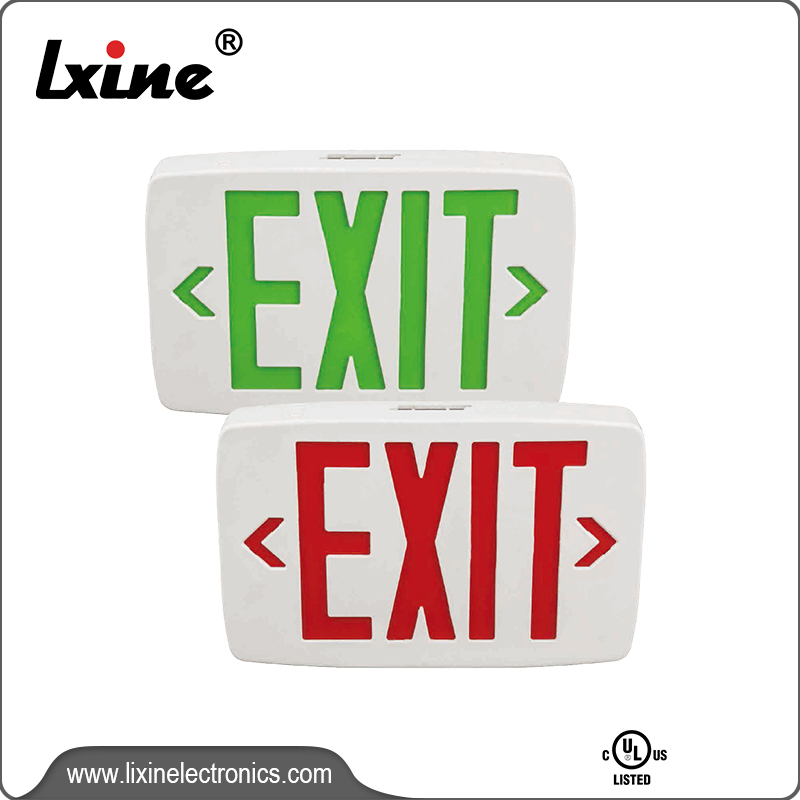

EMERGENCY EXIT SIGN LIGHT
*Fire retardant ABS housing, safe material for fire protection
*8PCS LEDs inside housing,two colors green and red are available

*Charge indicator light and test button can show us function at any time to ensure the light is workable
*Input Voltage:120V/277V AC 50/60HZ for different electricity demand
*Rated Power:2.5W
*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection
*UL approval fire exit signs are suitable for USA,middle east market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

*Single or Double faces are optional: Extra face plate included for optional double sided use.The bracket is packed inside of the light housing

*There are two snap-in directional arrows in accessory bag

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

SAFETY INSTRUCTIONS:

1.Do not use outdoors.

2.Do not mount near gas or electric heaters.

3.Do not let power supply cords touch hot surfaces.

4. Use caution when servicing batteries. Battery acid can cause burns

to skin and eyes. If  acid is spilled on skin or eyes. Flush acid with fresh water and contact a physician immediately.

5.Equipment should be mounted in locations and at heights where it

will not be subjected to tampering by unauthorized personnel.

6. The use of accessory equipment not recommended by the  manufacturer may cause an unsafe condition.

7.Do not use this equipment for other than its intended use.

8.Before wiring to power supply and during servicing,turn off AC power at fuse or circuit breaker.

9.Disconnect AC power and unplug battery before servicing.

10.Battery in this unit may not be fully charged.After electricity is

hooked up to unit,let the battery charge up for at least 24hrs,then

normal operation of this unit should take effect.

11.All Servicing should be performed by qualified personnel.

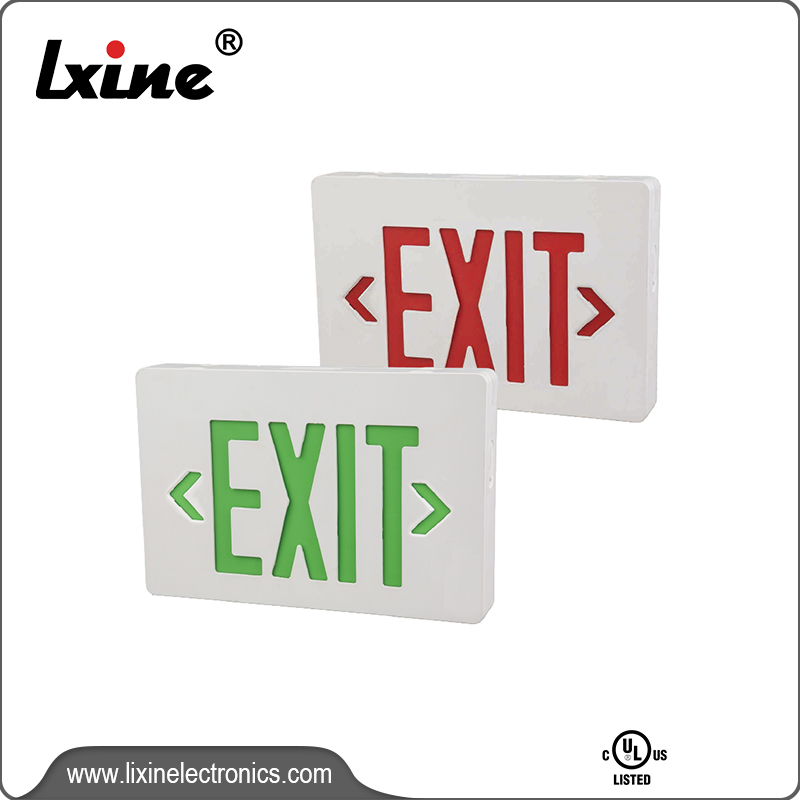

EMERGENCY EXIT SIGN LIGHT

*Fire retardant ABS housing, safe material for fire protection,EXIT letter is available for red and green

*8PCS LEDs inside housing,red and green optional

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Input Voltage:AC120V/277V  50/60HZ for different electricity demand

*Rated Power:4W

*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection

*UL approval fire exit signs are suitable for US market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box, 10PCS/master carton, customized packaging is available

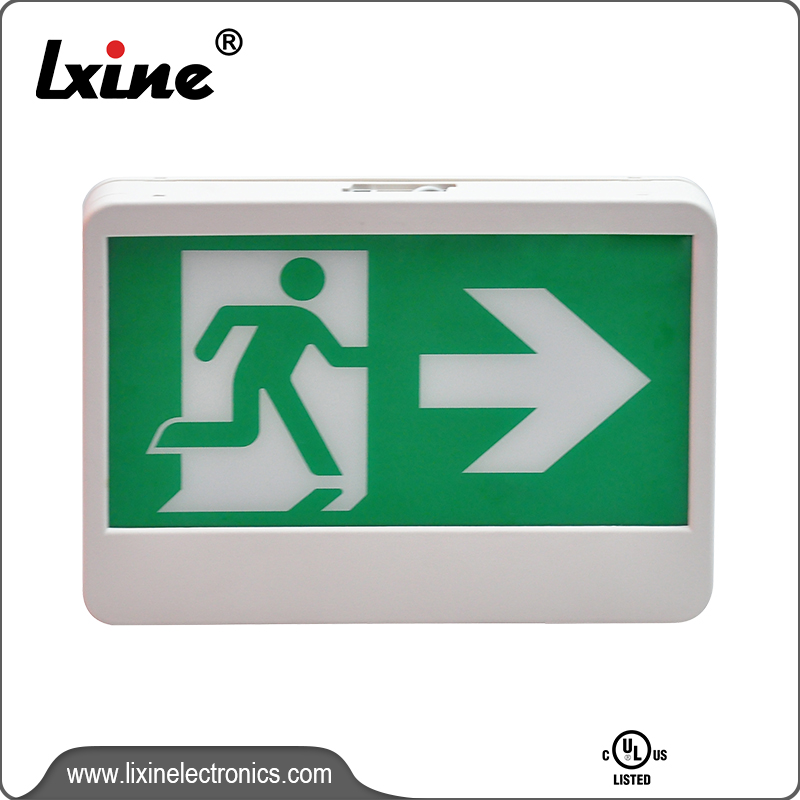

 EMERGENCY EXIT SIGN LIGHT

*Fire retardant ABS housing, safe material for fire protection

*14PCS LEDs inside housing

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Input Voltage:120V/347V AC 50/60HZ for different electricity demand

*Rated Power:4W

*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection

*UL approval fire exit signs are suitable for Canada market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

*4 kinds of pictograms optional: running man,running with right arrow,running man with left arrow,running man with down arrow

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

SAFETY INSTRUCTIONS:

1.Do not use outdoors.

2.Do not mount near gas or electric heaters.

3.Do not let power supply cords touch hot surfaces.

4. Use caution when servicing batteries. Battery acid can cause burns

to skin and eyes. If  acid is spilled on skin or eyes. Flush acid with fresh water and contact a physician immediately.

5.Equipment should be mounted in locations and at heights where it

will not be subjected to tampering by unauthorized personnel.

6. The use of accessory equipment not recommended by the  manufacturer may cause an unsafe condition.

7.Do not use this equipment for other than its intended use.

8.Before wiring to power supply and during servicing,turn off AC power at fuse or circuit breaker.

9.Disconnect AC power and unplug battery before servicing.

10.Battery in this unit may not be fully charged.After electricity is

hooked up to unit,let the battery charge up for at least 24hrs,then

normal operation of this unit should take effect.

11.All Servicing should be performed by qualified personnel.

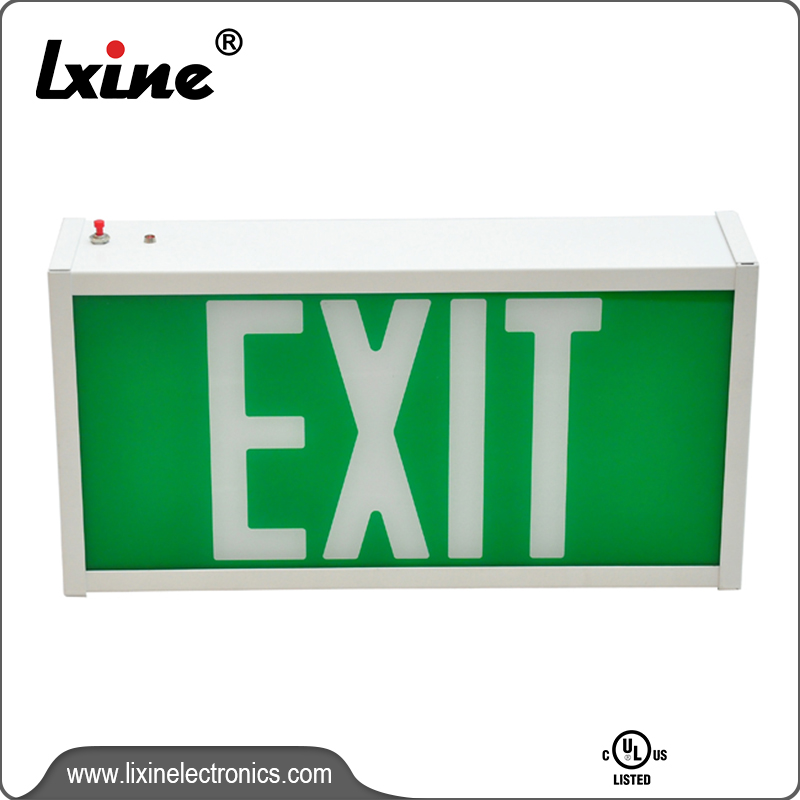

 EXIT SIGN LIGHT

*Steel case with acrylic panel with “EXIT”, single face configuration

*20PCS LEDs inside housing with white color light

*Charge indicator light and test button can show us function at any time to ensure the light is workable

*Input Voltage:120V/277V AC 50/60HZ suitable for different electricity demand

*Rated Power:7W

*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:3.6V 2.8AH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection

*UL approval fire exit signs are suitable for USA,middle east market

*Easy wall installation can be finished within several minutes

 *Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a neutral white box or color box,10PCS/master carton, customized packaging is available

SAFETY INSTRUCTIONS

1.If you feel you do not have electrical wiring experience, refer to a do-it-yourself wiring handbook or have your fixture installed by a qualified licensed electrician.

2.All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified licensed electrician.

3.Before starting the installation, disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box .Turning the power off using the light switch is not sufficient to prevent electrical shock.

4.Do not use outdoors.

5.Do not let power supply cords touch hot surfaces.

6.Do not mount near gas or electric heaters.

7.Equipment should be mounted in location and at heights where it will not readily be subject to tampering by unauthorized personnel.

8.The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.

9.Do not use this equipment for other than intended use.

10.All servicing should be performed by qualified personnel only.

11.Allow battery to charge for 24 hours before first use.

12.Use flexible conduit only.
