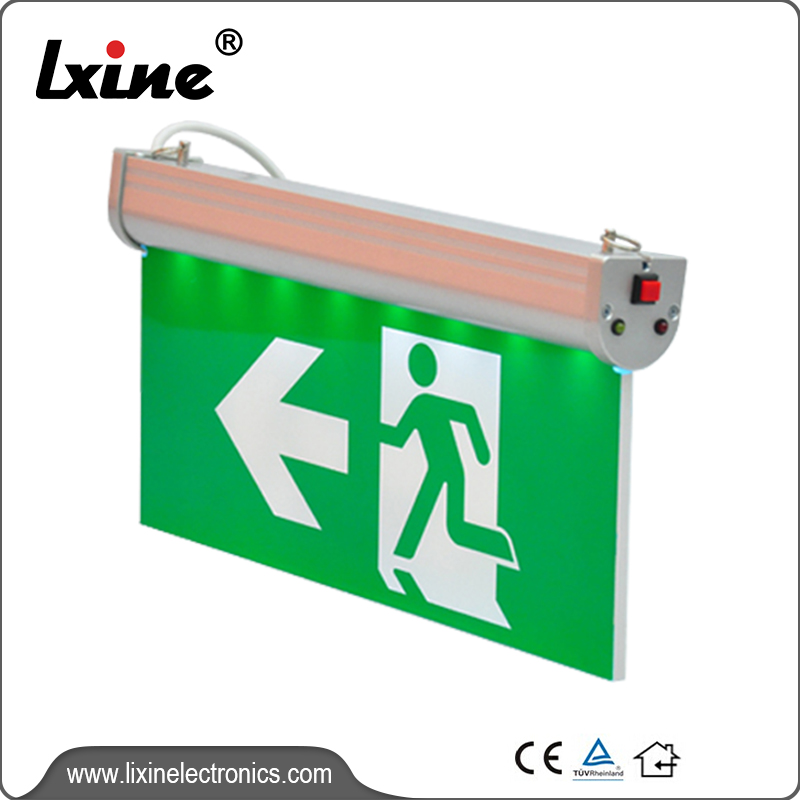

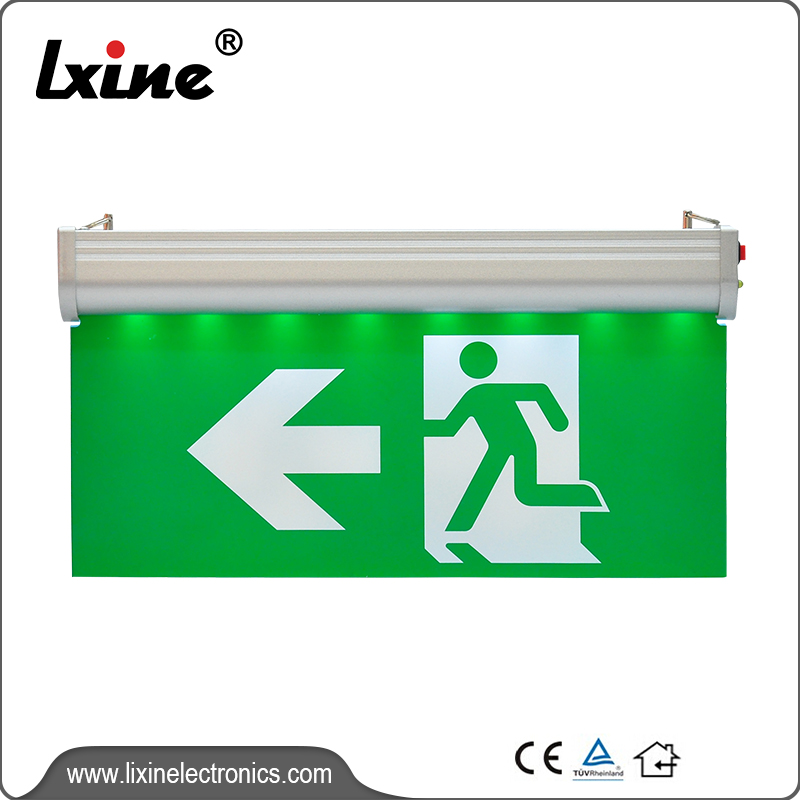

CE listed rechargeable exit sign light LX-701

Short Description:

 This is a maintained exit sign light with emergency function.

*Input voltage:AC220V-240V 50/60HZ

*AC Power:2W

*8PCS LEDs inside housing

 *Aluminum housing, clear organic glass plate with printing of exit signs,double face configuration,total 14 kinds of pictograms optional:

 Running man with right arrow(same direction on double sides), running man with right arrow(different direction on double sides),running man,running man with up arrow,running man with down arrow,EXIT with running man and right arrow(same direction on double sides), EXIT in english and abric with running man and right arrow(same direction on double sides),EXIT in english and abric with running man and down arrow,EXIT in english and abric with running man and up arrow, EXIT in english and abric with running man and right arrow(different direction on double sides), EXIT with running man and right arrow(different direction on double sides),EXIT with running man and up arrow,EXIT with running man and down arrow,EXIT



*Built-in nickel cadmium battery provides at least 3hours backup power in the event of a power outage:3.6V 600mAh, it is rechargeable battery, maximum 24 hours  for full recharge,with battery overcharge and discharge protection



*Fault led indicator and test button:There are red and yellow led indicator lights to show us normal charging state and fault state.

*TUV CE approval,the exit sign emergency light can be used in Europe,Asia and middle east market.



*Installation method: Install two hooks in the ceiling;hang one end of the two link chains on the exit light respectively;Then hang the other end of the two link chains over the hooks  in the ceiling respectively*Suitable for both commercial and residential areas


Product Detail

Product Tags

Regular Info

Model: LX-701 MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 2 years for CE listed light

1 years for battery

Certification: CE



Product Parameter

Item No. In put Voltage Light Source/
Power
AC Power Battery Emergency
Duration
Material Lumen Color
LX-701 AC220V/240V 50/60Hz 8PCS F5 LED 2W Ni-Cd 3.6v 600mAh ≥3Hours Aluminum housing
+glass panel
>8cd/m² Green



Features

·TUV CE acc. to EN60598

·Popular man runnng image

·Double face configuration,suspending type

·Longlife LED Source

·Ceiling mounting

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

Working temperature: -10℃-55℃

Working humidity:<90%

Used in Commercial/Residental areas

IP20,suitable forindoor

Application

Working temperature: -10℃-55℃

Working humidity:<90%

Used in Commercial/Residental areas

IP 20, suitable for indoor
