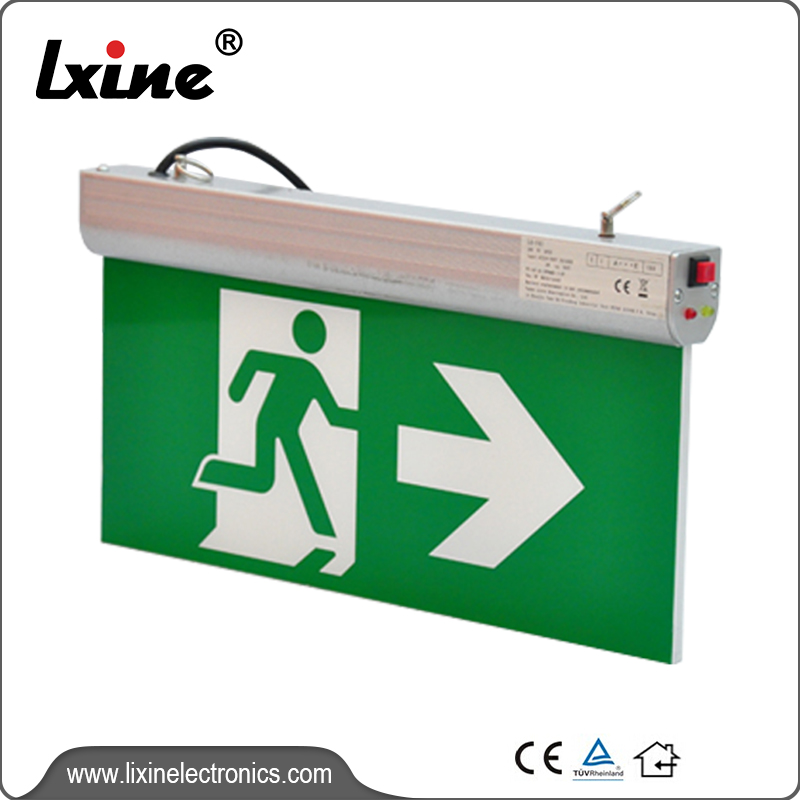

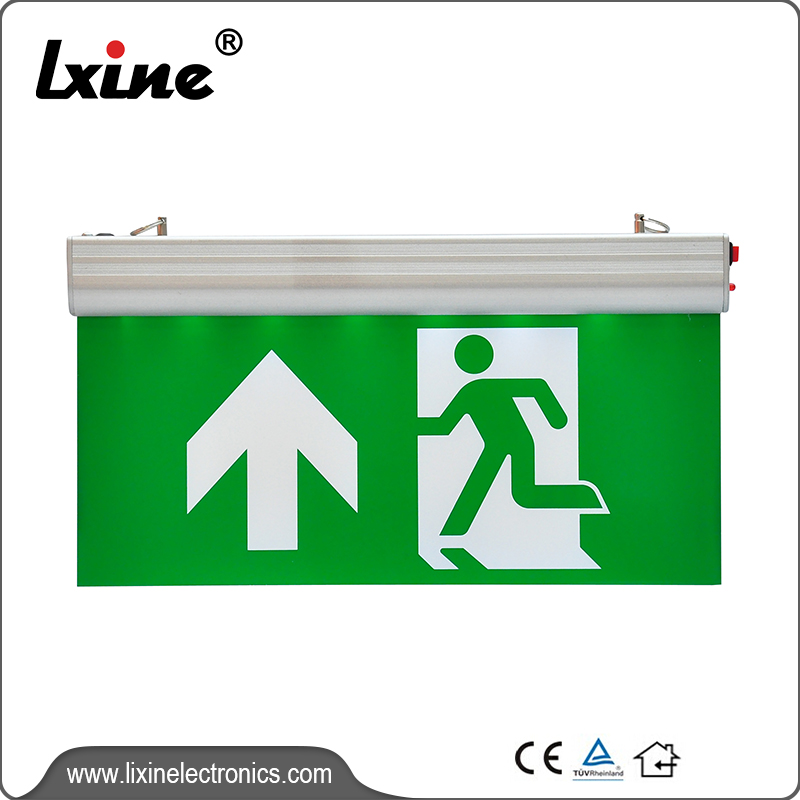

CE listed suspending type emergency exit lights LX-703

Short Description:

This 2W emergency exit light is a robust, cost effective lighting solution for interior applications. The exit sign light is easy to mount and suitable for mounting on emergency escape routes as defined.

*Input voltage:AC220V-240V 50/60HZ

*AC Power:2W

*8PCS LEDs inside housing

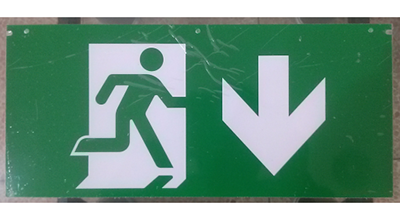

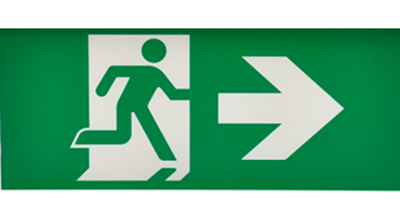

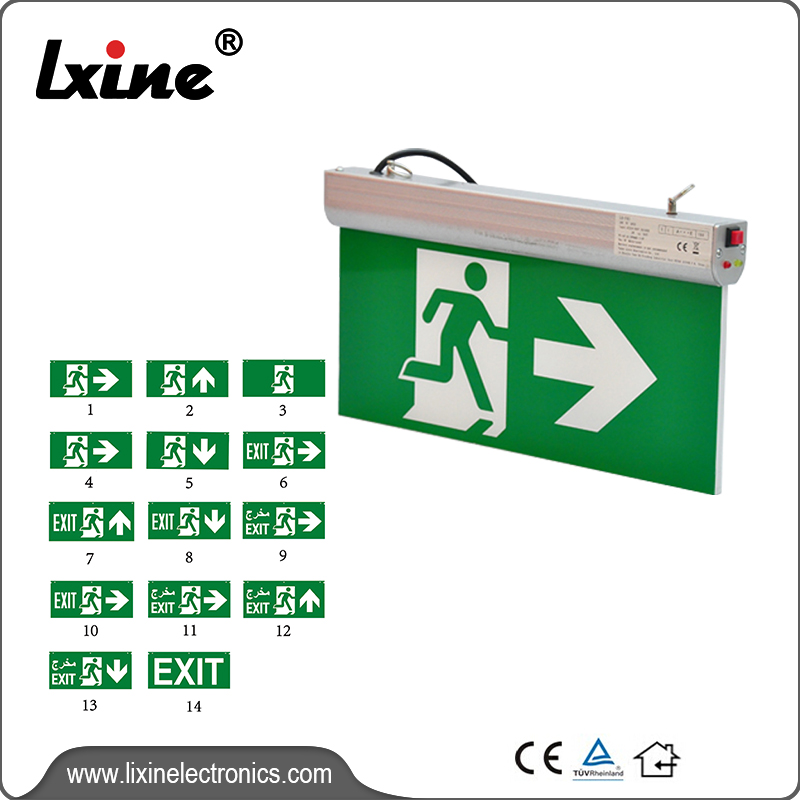

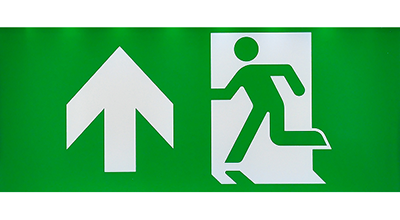

*Aluminum housing, clear organic glass plate with printing of exit signs,double face configuration,total 14 kinds of pictograms optional:



Running man with right arrow(same direction on double sides), running man with right arrow(different direction on double sides),running man,running man with up arrow,running man with down arrow,EXIT with running man and right arrow(same direction on double sides), EXIT in english and abric with running man and right arrow(same direction on double sides),EXIT in english and abric with running man and down arrow,EXIT in english and abric with running man and up arrow, EXIT in english and abric with running man and right arrow(different direction on double sides), EXIT with running man and right arrow(different direction on double sides),EXIT with running man and up arrow,EXIT with running man and down arrow,EXIT



*Built-in nickel cadmium battery provides at least 3hours backup power in the event of a power outage:3.6V 600mAh, it is rechargeable battery, maximum 24 hours  for full recharge,with battery overcharge and discharge protection



*Fault led indicator and test button:There are red and yellow led indicator lights to show us normal charging state and fault state.

*TUV CE approval,the exit sign emergency light can be used in Europe,Asia and middle east market.


  • :
  • Product Detail

    Product Tags

    Regular Info

    Model: LX-703 MOQ: 500PCS
    lead time: Regular 25working days
    since deposit is received
    Payment: T/T
    Brand Name: LXINE Price Term: FOB /CNF /CIF
    Sample Lead Time: 5 working days after sample cost arrival Guarantee: 2 years for CE listed lights
    1 years for battery
    Certification: CE



    Product Parameter

    Item No. In put Voltage Light Source/
    Power
    AC Power Battery Emergency
    Duration
    Material Lumen Color
    LX-703 AC220V/240V 50/60Hz 8PCS F5 LED 2W Ni-Cd 3.6v 600mAh ≥3Hours Aluminum housing
    +glass panel
    >8cd/m² Green



    Features

    ·TUV CE acc. to EN60598

    ·Popular man runnng image

    ·Double face configuration,suspending type

    ·Longlife LED Source

    ·Ceiling mounting

    ·24 hours charging time

    ·Battery Overcharge protection

    ·Charing LED indicator and test button

    Working temperature: -10℃-55℃

    Working humidity:<90%

    Used in Commercial/Residental areas

    IP20,suitable forindoor

    Application

    Working temperature: -10℃-55℃

    Working humidity:<90%

    Used in Commercial/Residental areas

    IP 20, suitable for indoor

    703

    LX-703

    1

    LX-703-1

    2

    LX-703-2

    3
