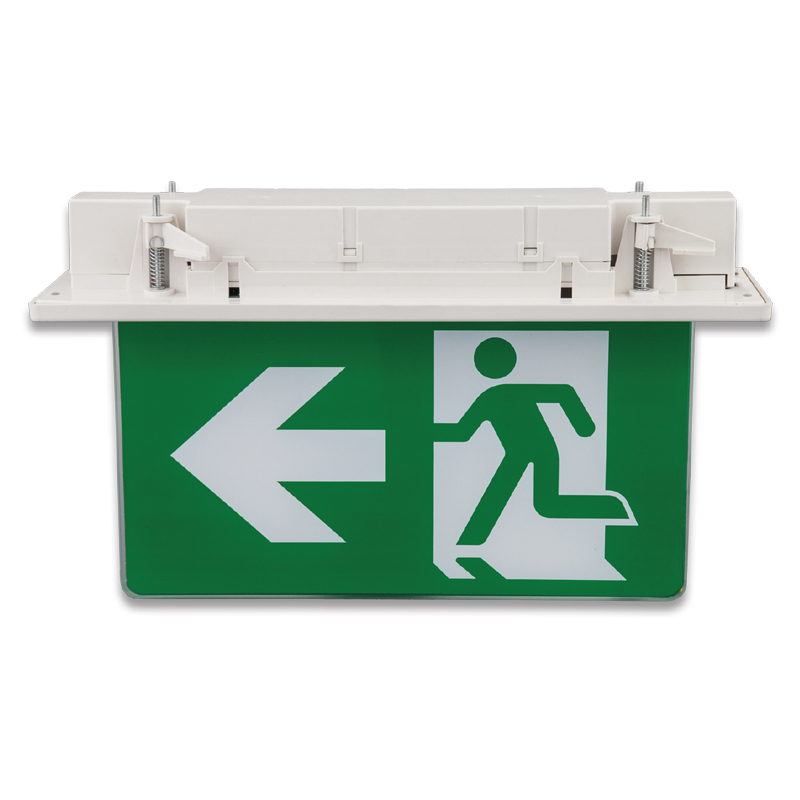

Led exit sign emergency lights ceiling flush mounted LX-708AT

Short Description:

Indoor use emergency exit sign light

*Input Voltage:AC220-240V 50/60HZ

*Rated Power:3W

*Fire retardant ABS shell,PMMA panel with double face running man image,different pictograms optional:EXIT,running man,running man with right arrow,running man with up arrow,running man with down arrow,EXIT with running man and right arrow,EXIT with running man and up arrow, EXIT with running man and down arrow,EXIT in english and abric with running man and right arrow,EXIT in english and abric with running man and up arrow,EXIT in english and abric with running man and down arrow



*14PCS SMD2835 LEDs inside shell with white color light

*Extra test button, press for manual test

*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection

 Feature 1: this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:

As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.

Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer  pre-sets all functions-Do not need field adjustment.



Feature 2:The shell structure of the exit light is suitable for ceiling flush mounting. That looks good and space saving.


Product Detail

Product Tags

Regular Info

Model: LX-708AT MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 2 years for CE listed lights
1 years for battery
Certification: CE



Packing Data

Item No. In put Voltage Light Source AC Power Battery Emergency
Duration
Material Lumen Color
LX-708AT 220V-240V
50/60Hz
SMD2835
LED 14PCS
3W NI-MH AA4.8V/
600MAH
≥3 Hours Fire retardant ABS housing
Aluminum Alloy+glass panel
>8cd/m² Green

Features

TUV CE acc. to EN 60598-2-22

Popular man running image

Double face configuration, suspending type

Longlife Led Source

Ceiling mounting

24hours charging time

Battery Overcharge&discharge protection

Charing LED indicator and test button

Application

Working Temperature: -10℃~55℃

Working Humidity: <90% RH

Suit for Indoor
