China New exit sign led emergency light LX-712AT manufacturers and suppliers

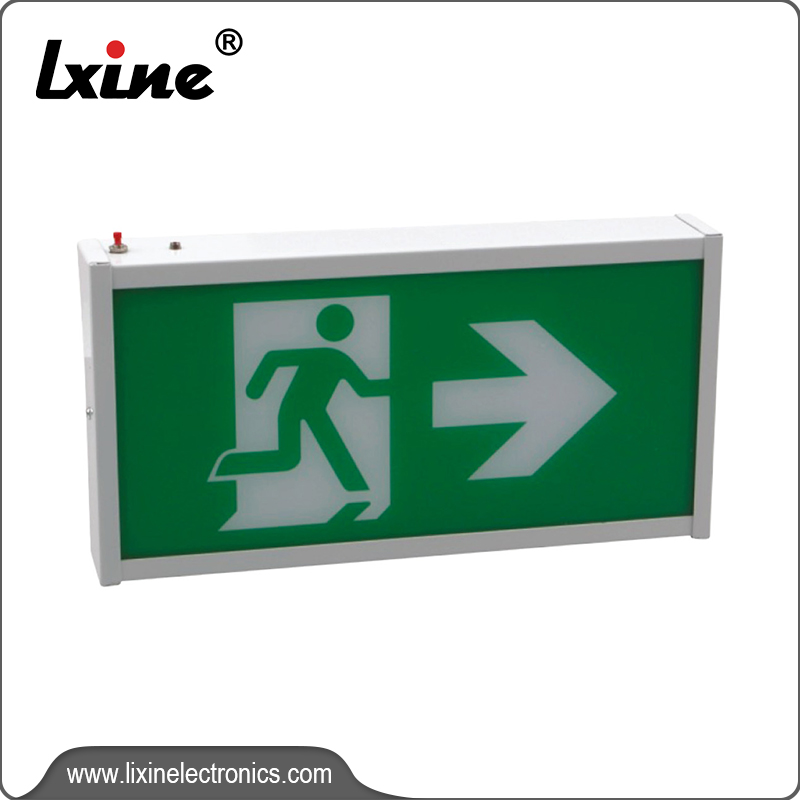

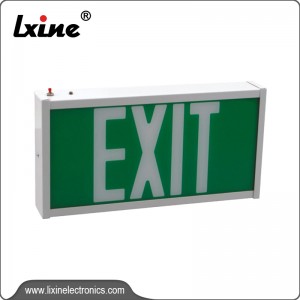

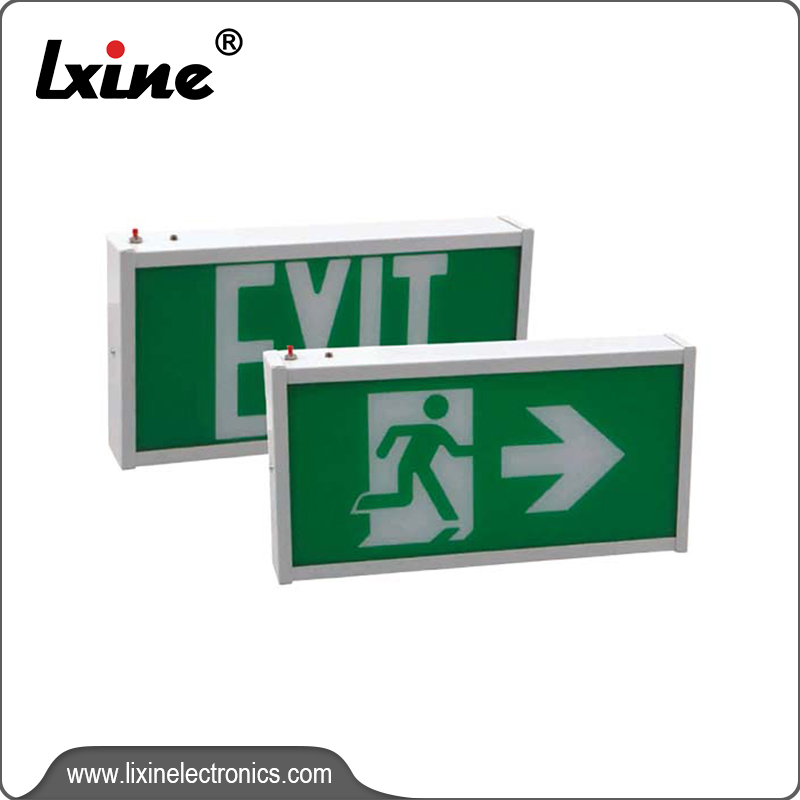

New exit sign led emergency light LX-712AT

Short Description:

Emergency exit sign light with self-test function

*Input Voltage:AC220-240V 50/60HZ

*Rated Power:3W

The biggest advantage is that this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:

As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.

Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer pre-sets all functions-Do not need field adjustment.

The other advantage is that dual color LED lamps indicate different status, details as below:

Green color ON / Ready

Blinking: Testing

Red color (Service Alert),Service Alert LED Code (Red color LED lamp indicator)

●	One blink ON/pause (4 seconds )	Battery is not connected
●●	Two blink ON/pause (4 seconds )	battery voltage is too low(<4.2V)
●●●	Three blink ON/pause(4 seconds )	Charger board fault
●●●●	Four blink ON/pause(4 seconds )	Transformer fault
●●●●●●●	Seven blink ON/pause(4 seconds )	EXIT LED strip fault

*Aluminum alloy housing with acrylic panel,single configuration

*20PCS LEDs inside housing with white color light

*Extra test button, press for manual test

*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection

Send email to us

Product Detail

Product Tags

Regular Info

Model:	LX-712AT	MOQ：	500PCS
lead time：	Regular 25working days since deposit is received	Payment：	T/T
Brand Name：	LXINE	Price Term：	FOB /CNF /CIF
Sample Lead Time：	5 working days after sample cost arrival	Guarantee：	2 years for CE listed lights 1 years for battery
Certification:	CE

Product Parameter

Item No.	In put Voltage	Light Source	AC Power	Battery	Emergency Duration	Material	Lumen	Color
LX-712AT	220V-240V 50/60Hz	SMD2835 LED 20PCS	3W	NI-MH AA4.8V/ 600MAH	≥3 Hours	Aluminum Alloy +glass panel	>8cd/m²	Green
