Short Description:

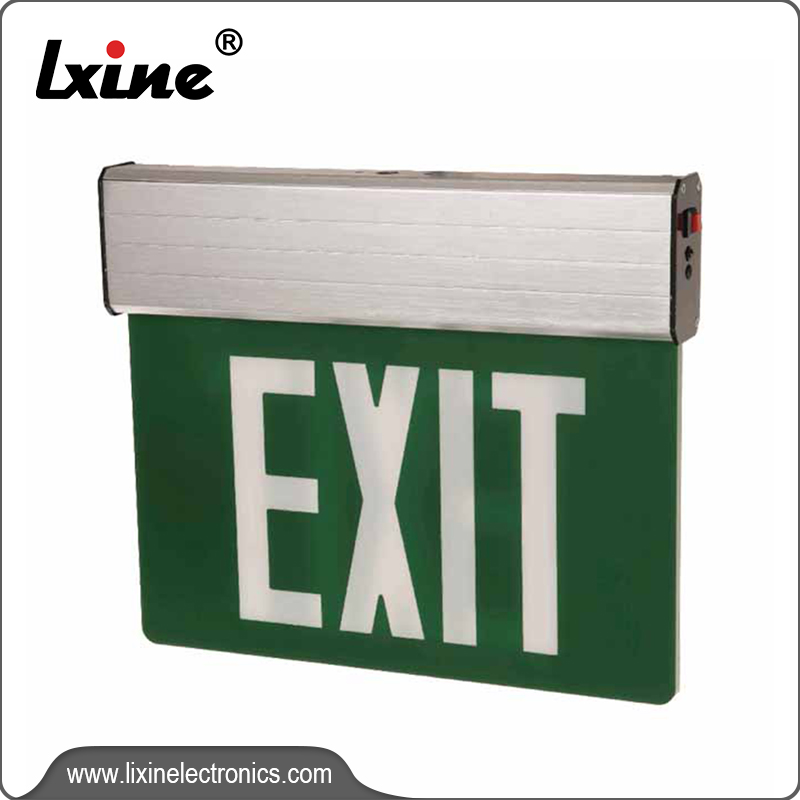

LED Emergency exit sign light

*Input Voltage:AC220-240V 50/60HZ

*Rated Power:3W

*Aluminum alloy shell with PMMA panel,11 kinds of panel pictograms optional:EXIT,running man,running man with right arrow,running man with up arrow,running man with down arrow,EXIT with running man and right arrow,EXIT with running man and up arrow, EXIT with running man and down arrow,EXIT in english and abric with running man and right arrow,EXIT in english and abric with running man and up arrow,EXIT in english and abric with running man and down arrow

*12PCS F5 LEDs inside shell with white color light
The biggest advantage is that this exit emergency lighting has SELF-DIAGNOSTIC function, details as below:

As soon as AC power is supplied to emergency exit sign light ,the unit will automatically initiate a self-diagnostic test.

Verifies battery failure (disconnection,shorted,voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure at every 5 seconds.Manufacturer  pre-sets all functions-Do not need field adjustment.

*Extra test button, press for manual test

*Built-in NI-MH rechargeable battery provides at least 3hours backup power in the event of a power outage, 4.8V 600MAH, 24 hours charging time with battery overcharge and discharge protection

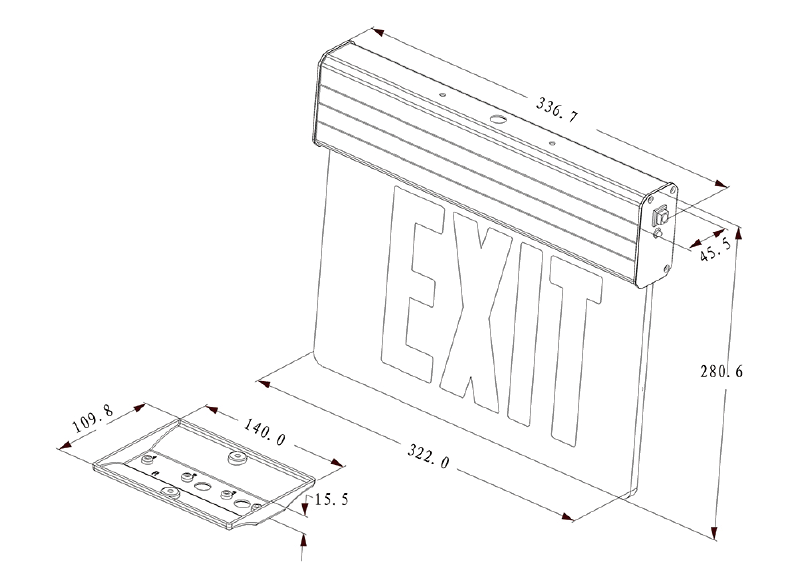

*There are 3 kinds of installation method:

Ceiling mounting,back mounting, side mounting
