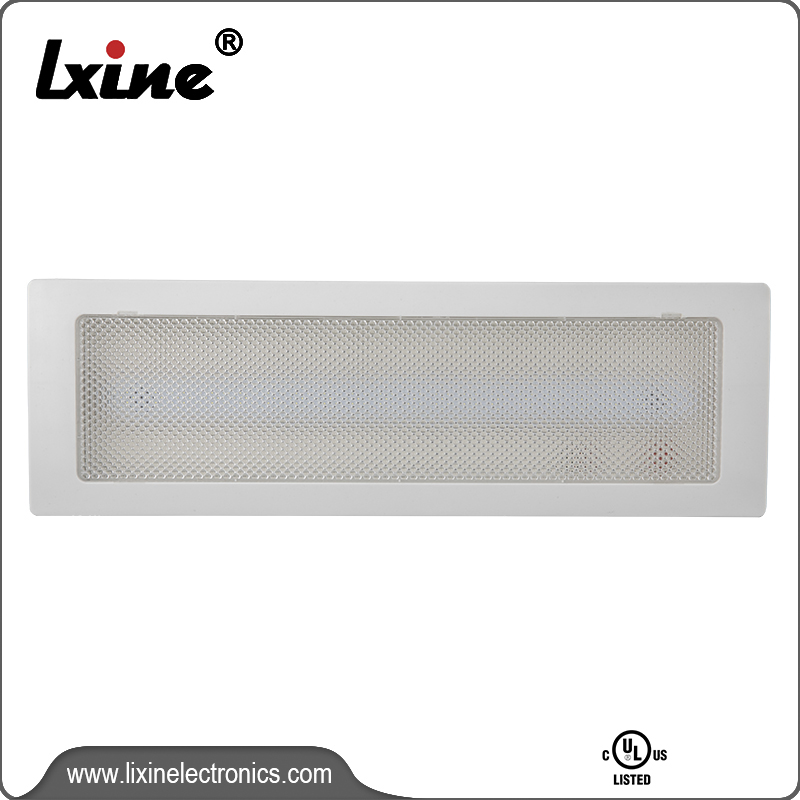

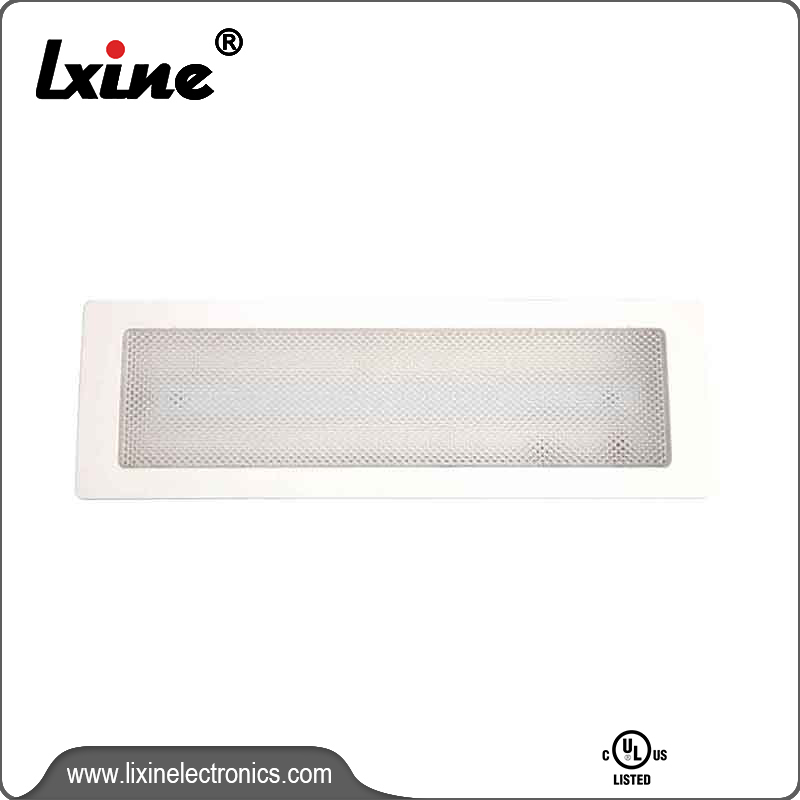

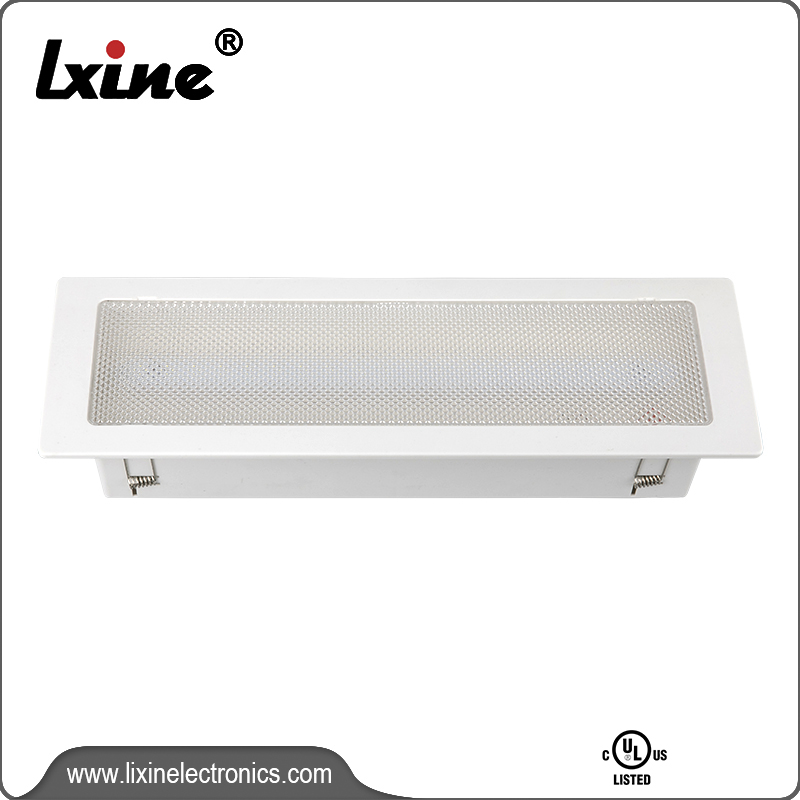

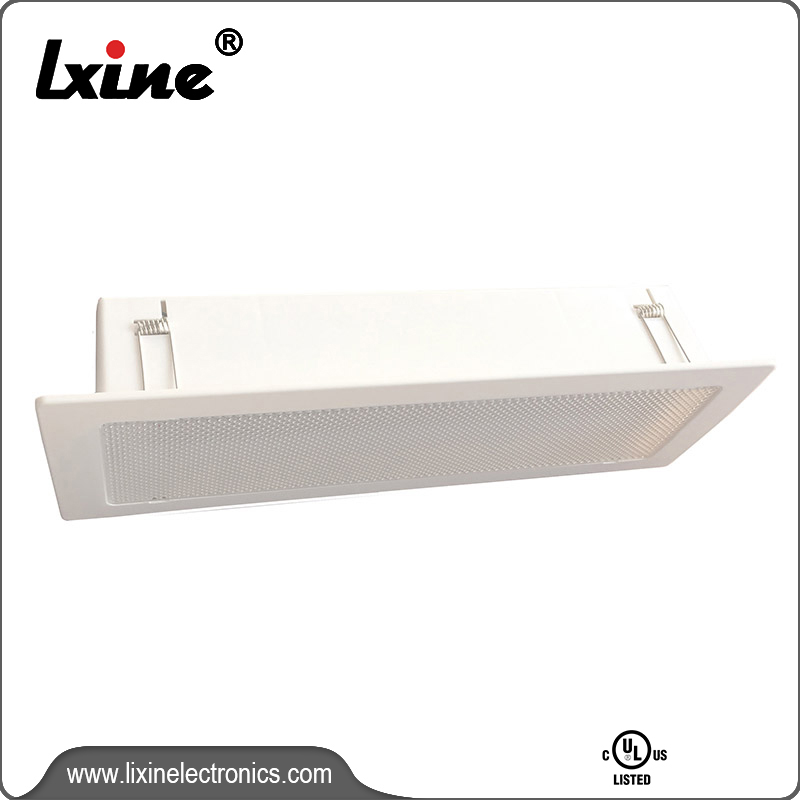

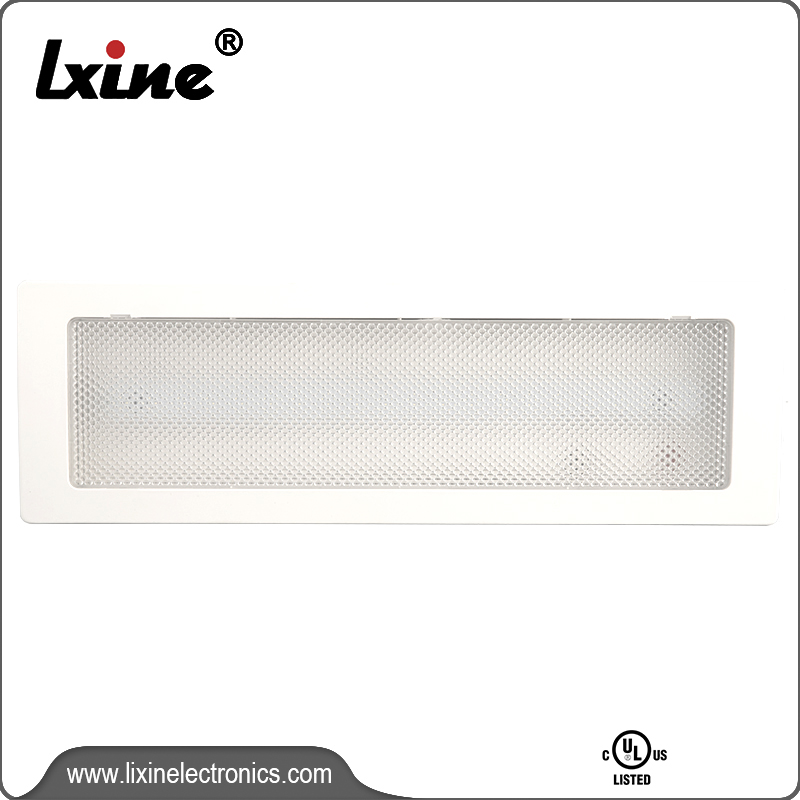

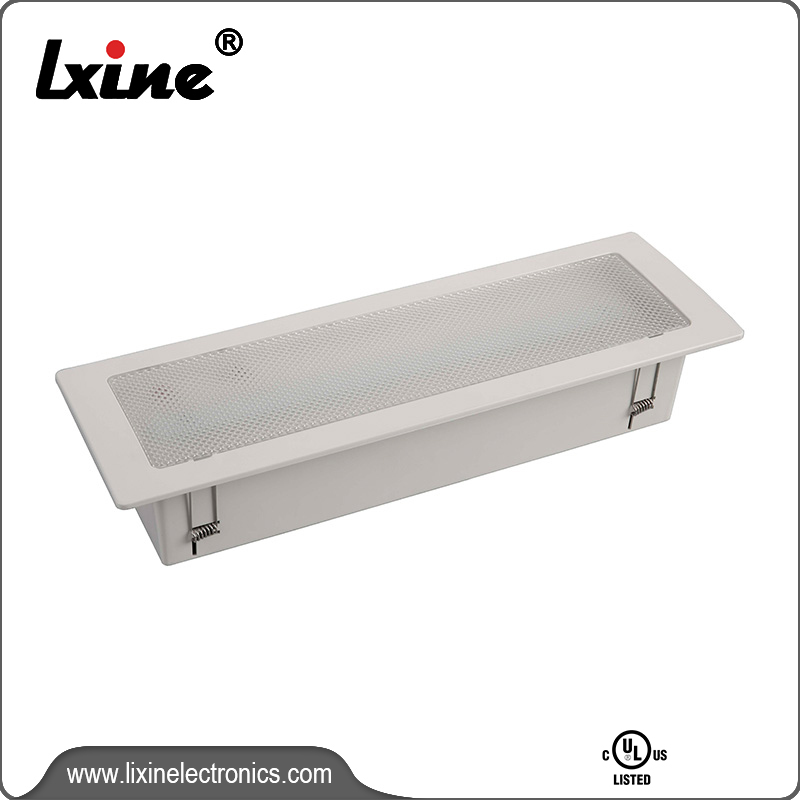

UL approval LED Emergency Light recessed type installation LX-603L

Short Description:

 RECHARGEABLE LED EMERGENCY LIGHT
*Popular recessed design emergency light
*Fire retardant ABS housing, safe material for fire protection
*Light source: SMD 2835 led 20PCS

*Test button and charge indicator light
*Input Voltage:AC100V-240V 50/60HZ suitable for different electricity demand
*Rated Power:3W
*Nickel metal hydride battery provides at least 3hours backup power in the event of a power outage:4.8V 2200MAH,environmental friendly,rechargeable battery,24 hours for full charging time
*UL approval emergency led light suitable for USA,middle east market

*Ceiling mounted,the emergency light is extremely easy to install, elegant design recessed into ceiling,safe and space saving, Maximum mounting height:9.43ft(2.87m)
*Suitable for multiple locations, such as home, hotel,commercial buildings

*1PC emergency light is packed into a white box or color box,10PCS/master carton, customized packaging is available



SAFETY  INSTRUCTIONS

1.If you feel you do not have electrical wiring experience, refer to a do-it-yourself wiring handbook or have your fixture installed by a qualified licensed  electrician.

2.All electrical connections must be in accordance with local codes, ordinances and the National Electric Code.

3.Before starting the installation, disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box. Turning  the  power off using the light switch is not  sufficient  to  prevent electrical shock.

4.Do not use outdoors.

5.Do not let power supply cords touch hot surfaces.

6.Do not mount near gas or electric heaters.

7.Use caution when servicing batteries. Battery acid can cause burns to skin and eyes. If acid is spilled on skin or in eyes, flush acid with fresh water and contact a physician immediately.

8.Equipment  should  be  mounted  in location and at heights where it will not readily be subject to tampering by unauthorized personnel.

9.The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.

10.Do not use this equipment for other than intended use.

11.All servicing should be performed by qualified personnel only.

12.Allow battery to charge for 24 hours before first use.




Product Detail

Product Tags

Regular Info

Model: LX-603L MOQ: 500PCS
lead time: Regular 25working
days since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 5 years for UL listed lights
1 years for battery
Certification: UL



Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration
Material Lumen Color
LX-603L AC100V-240V  50/60HZ SMD 2835 LED 20PCS 3W NI-MH SC4.8V
/2200MAH
≥3Hours Fire retardant
ABS base+PC Cover
>250LM White



Details

·UL Listed per UL924 standard

·Universal wall or ceiling mounting

·Longlife, high brightness

·Energy saving, reliable and safety

·Easy installation and maintenance

·24 hours charging time

·Battery Overcharge & discharge protection

·Charing LED indicator and test button

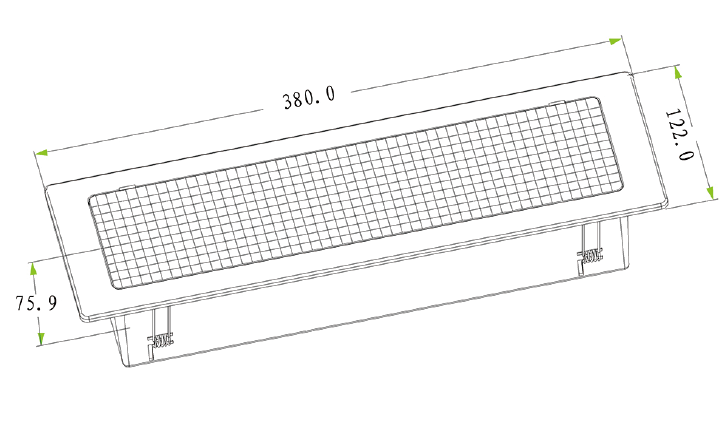

UL Bulkhead Emergency Lamp LX-603L (1)

Application

Working temperature: -5℃-45℃

Working humidity:<90%

Used in Commercial/Residental areas

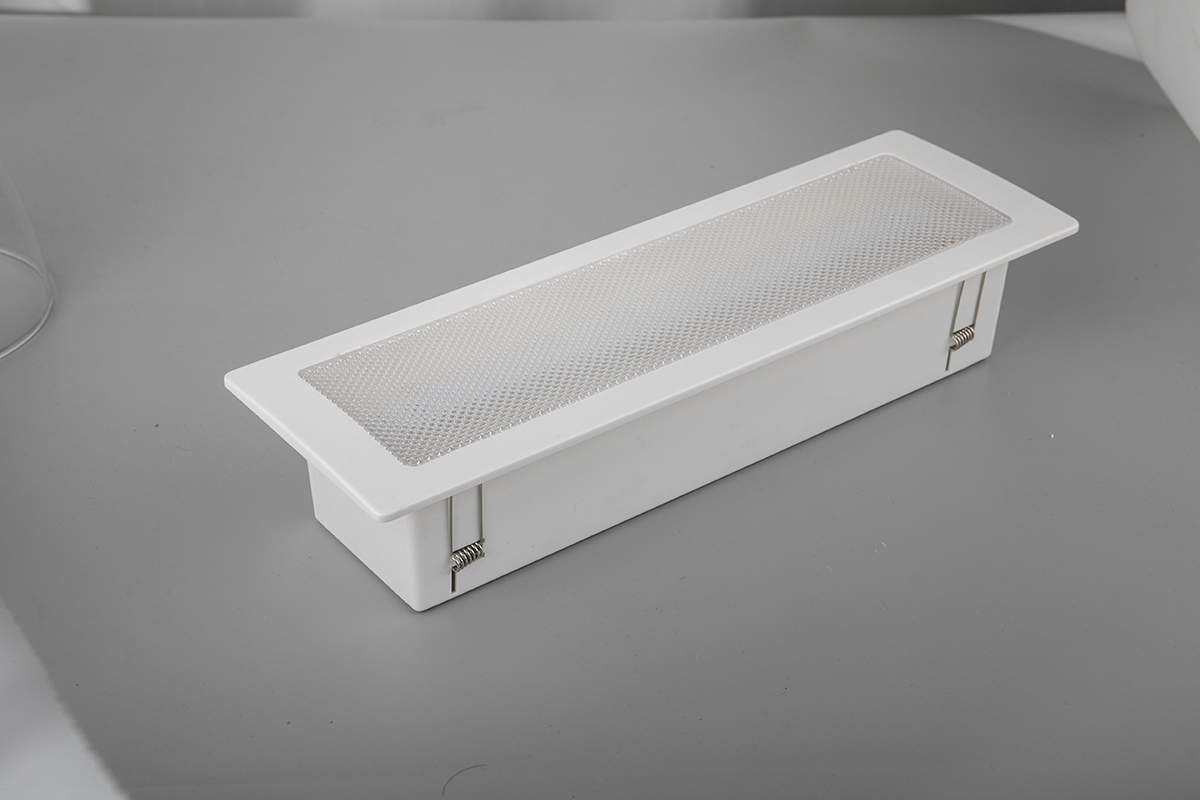

UL Bulkhead Emergency Lamp LX-603L (4)

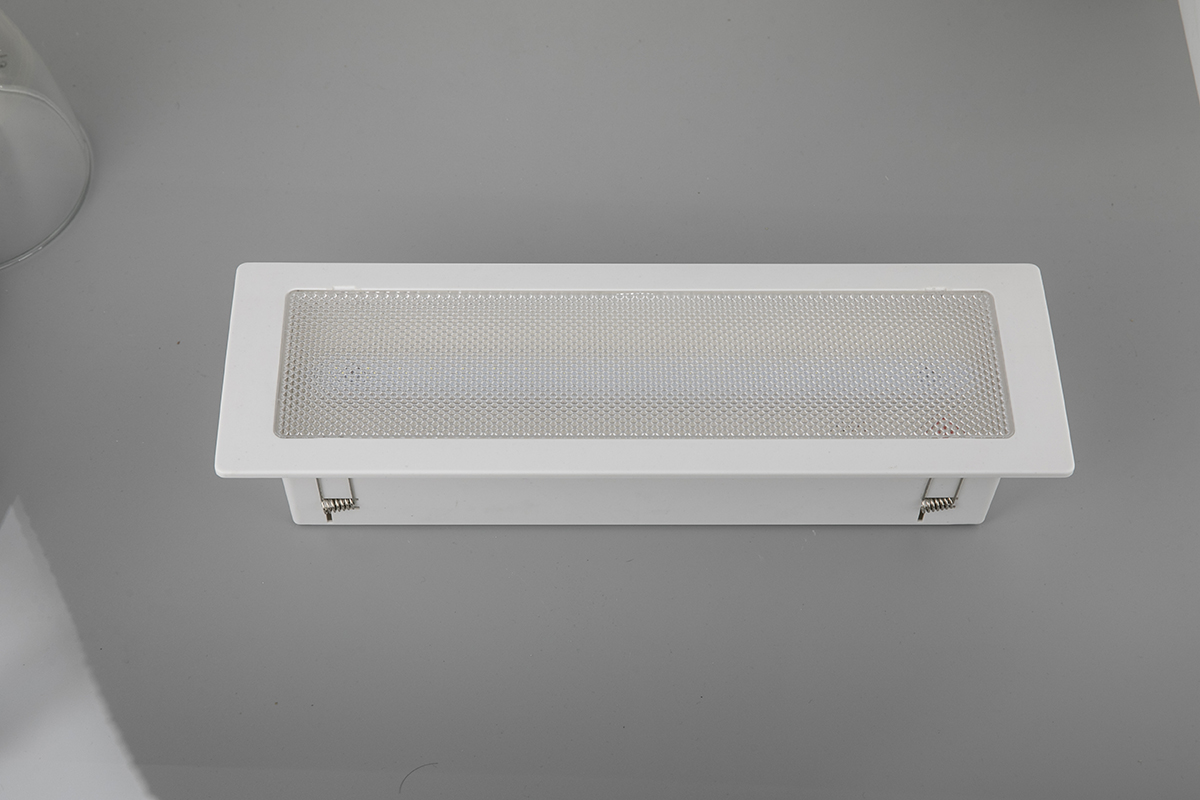

UL Bulkhead Emergency Lamp LX-603L (5)

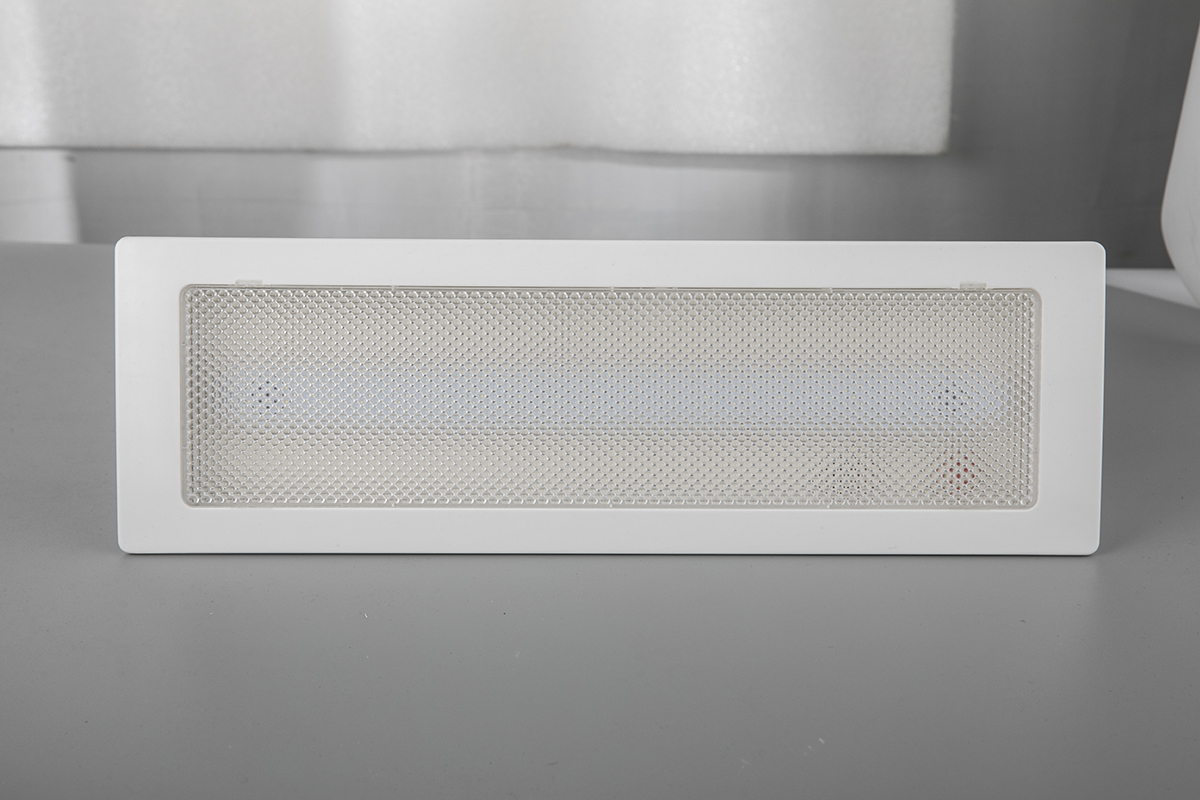

UL Bulkhead Emergency Lamp LX-603L (7)

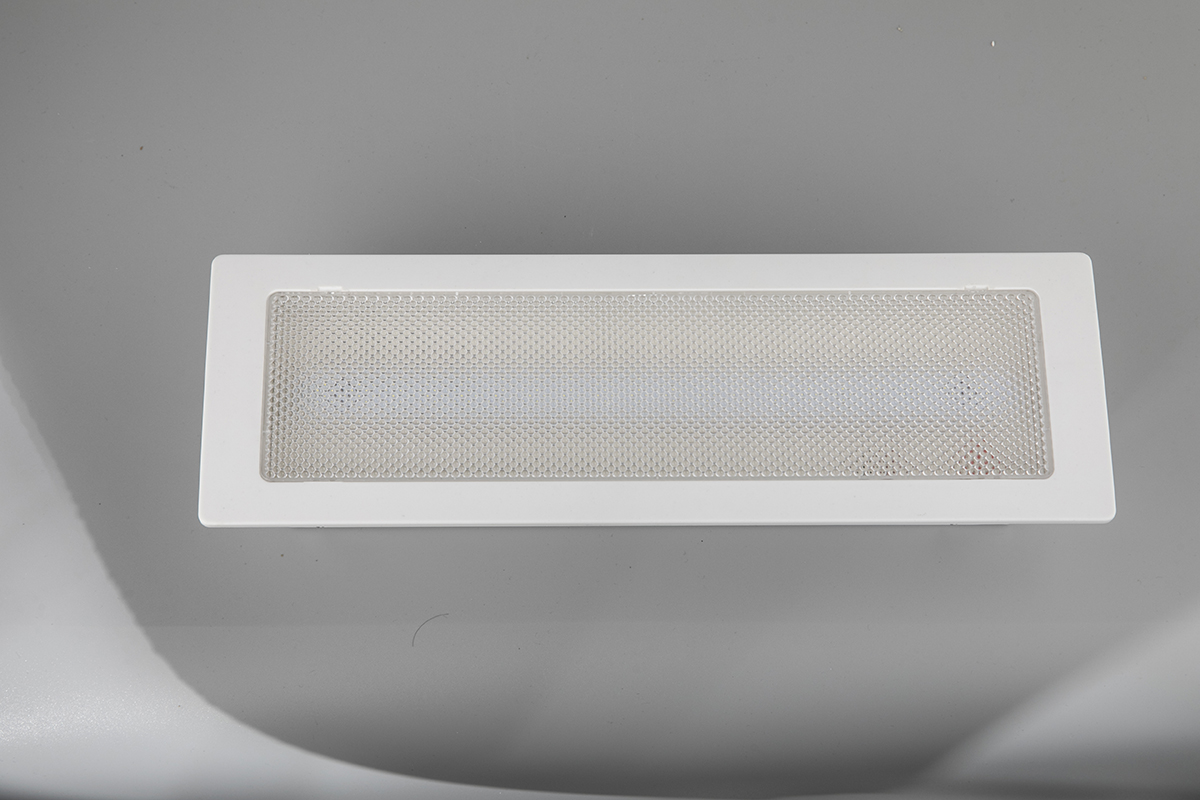

UL Bulkhead Emergency Lamp LX-603L (8)
