2 in 1 exit sign and emergency light LX-7603G/R

Short Description:

This is an efficient and secure exit sign/emergency light combo.Save much money buying this two in one emergency lighting.



*Input Voltage:AC 120V/277V 60HZ main power connection to exit sign light under normal condition
*Rated Power:8W

*Exit sign with 12pcs led lights,two square heads with two 6V/5W halogen bulbs,providing ultral bright lighting, the square heads are adjustable to different angle.



*Lead acid battery provides min.90 minutes backup power in the event of power off:6V 4.5AH, 24 hours recharging after 90 minutes discharge,battery overcharge and discharge protection
*UL approval

* Snap-together design allows for quick and easy installation on surface wall and top mounting via included canopy accessories.

*Replaceable directional chevron inserts are easily removed and reinserted


Product Detail

Product Tags

Regular Info

Model: LX-7603G/R MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 5 years for UL listed lights
1 years for battery
Certification: UL



Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration
Material Lumen Color
LX-7603G R AC120V
/277V 50/60Hz
Halogen
6v/5w*2
8w Lead-Acid 6v 4.5h ≥1.5Hours Fire retardant
ABS Housing
>8cd/m² Green/Red



Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

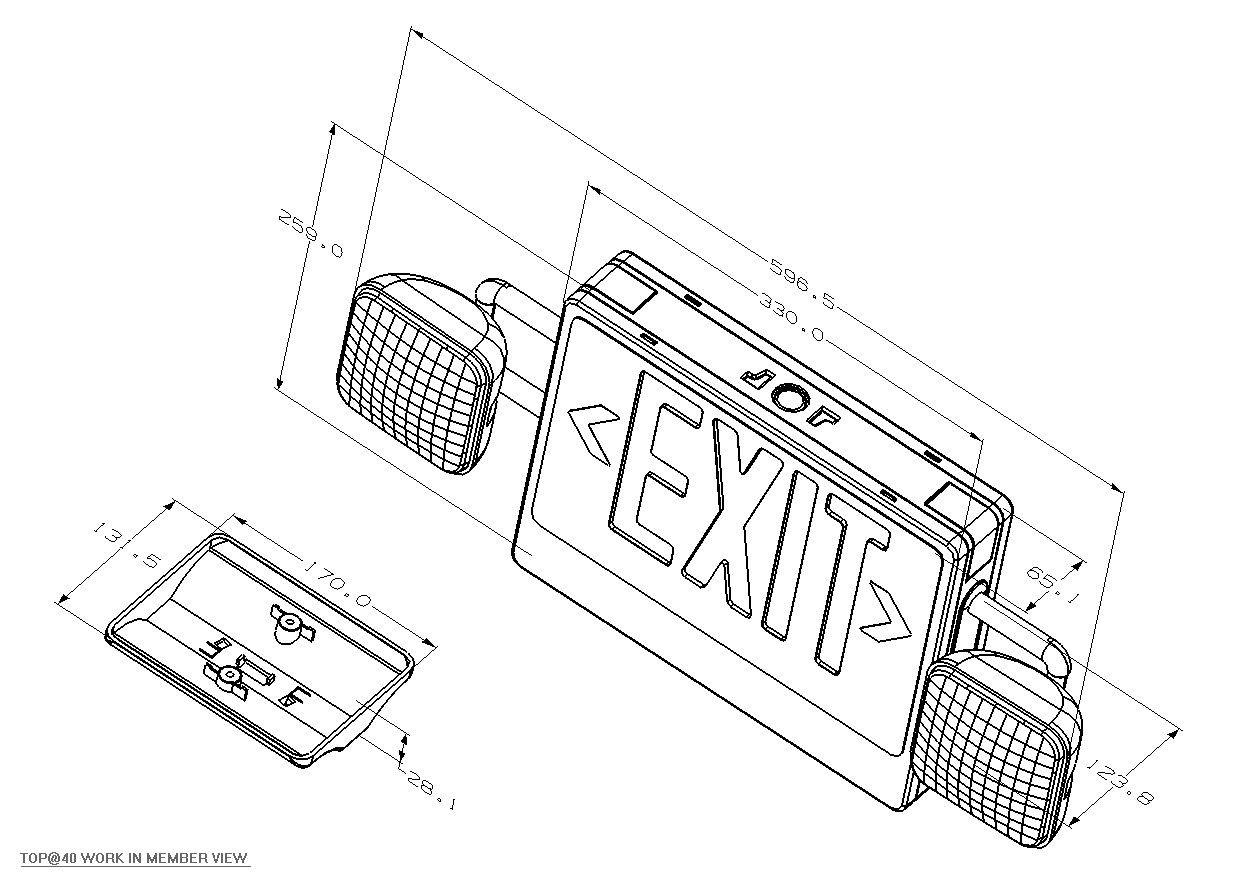

UL Exit Sign Emergency Light Combo LX-7603G R (6)

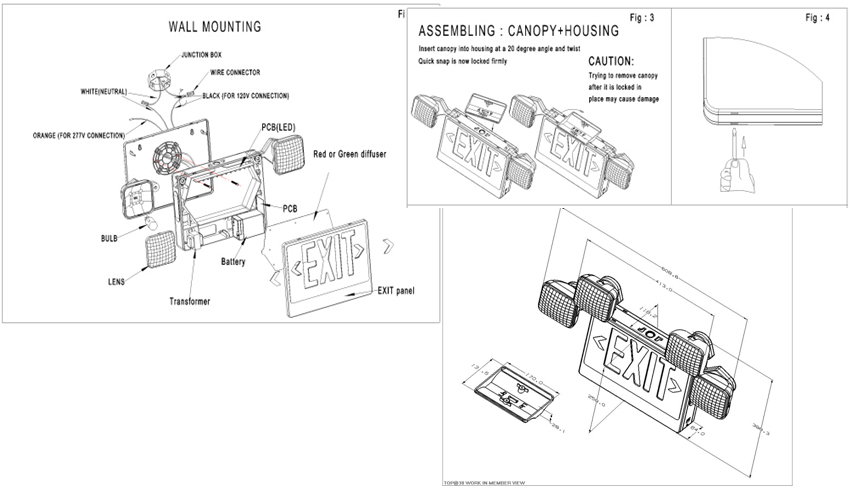

UL Exit Sign Emergency Light Combo LX-7603G R (2)

Application

Working temperature: -5℃-45℃

Working humidity:<90%

Used in Commercial/Residental areas

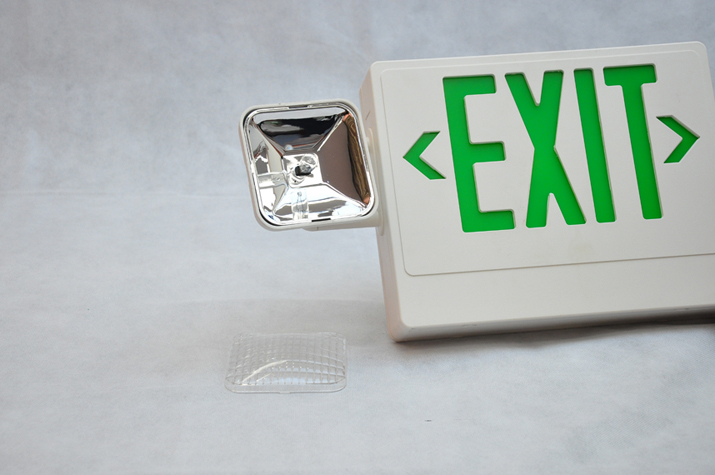

UL Exit Sign Emergency Light Combo LX-7603G R (4)

Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

UL Exit Sign Emergency Light Combo LX-7603G R (6)
UL Exit Sign Emergency Light Combo LX-7603G R (2)

Application

Working temperature: -5℃-45℃

Working humidity:<90%

Used in Commercial/Residental areas

UL Exit Sign Emergency Light Combo LX-7603G R (4)

Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration
Material Lumen Color
LX-7603G R AC120V
/277V 50/60Hz
Halogen
6v/5w*2
8w Lead-Acid 6v 4.5h ≥1.5Hours Fire retardant
ABS Housing
>8cd/m² Green/Red
