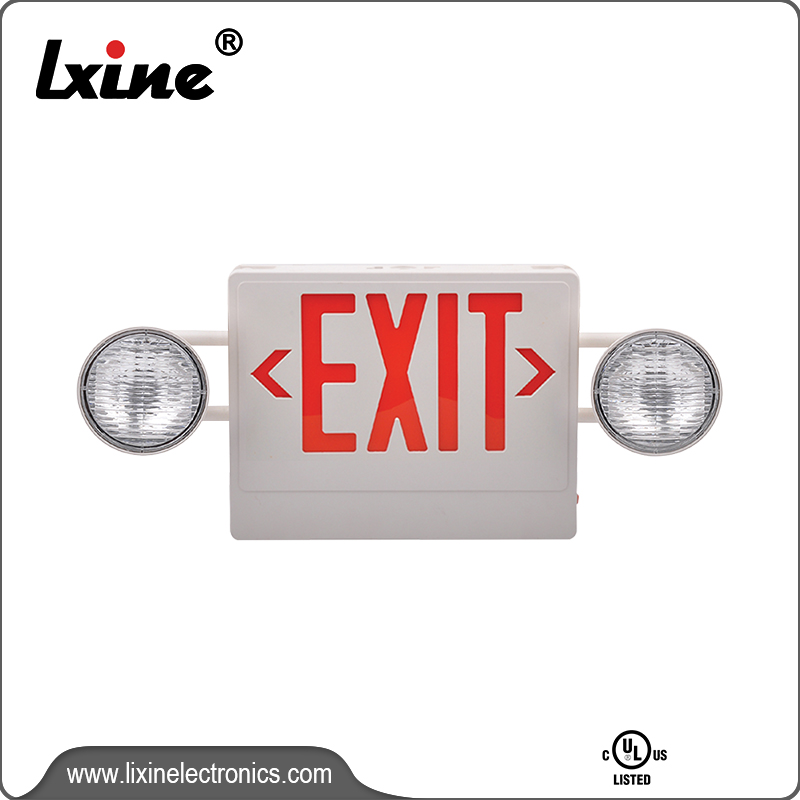

Led exit sign with halogen emergency lights LX-7604G/R

Short Description:

This is an emergency exit sign combo which  is the perfect solution for applications that require both an exit sign and an emergency light.

*Double Voltage:120V/277V 60HZ optional, main power connection to exit sign light

*Rated Power:8W

*Exit sign with 12pcs red or green led lights inside the housing,two round heads with two 6V/5W halogen bulbs,providing ultral bright lighting, the round heads can be adjusted to different angle



*Charge indicator light and test button can show us function at any time to ensure the light is workable
*Lead acid battery provides at least 3 hours of backup power in the event of power off:6V 4.5AH, 24 hours recharging time after 3 hours discharge, battery overcharge and discharge protection
*UL approval

* Innovative snap-together design allows for fast installation

*Replaceable directional chevron inserts are easily removed and reinserted

*Suitable for both commercial and residential areas


Product Detail

Product Tags

Regular Info

Model: LX-7604G/R MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 5 years for UL listed lights
1 years for battery
Certification: UL



Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

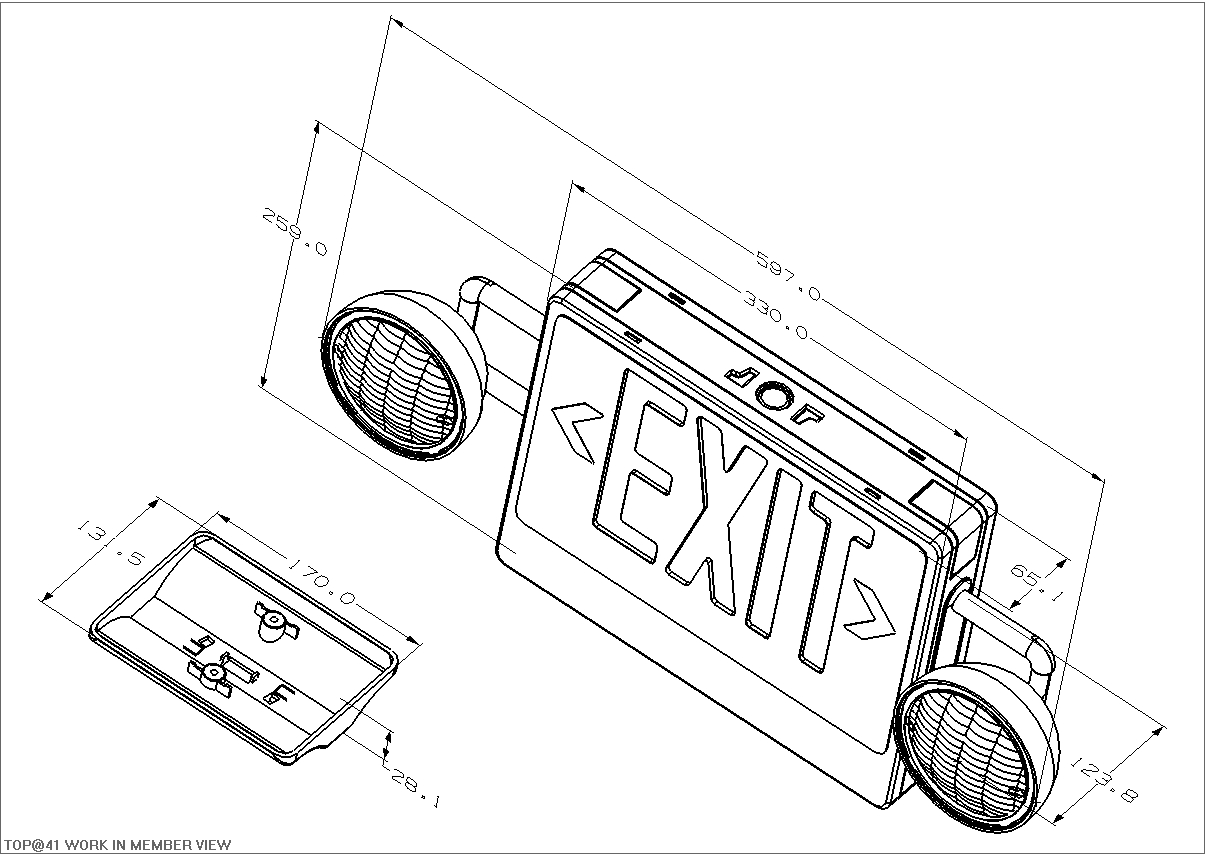

UL Exit Sign Emergency Light Combo LX-7604G R (5)

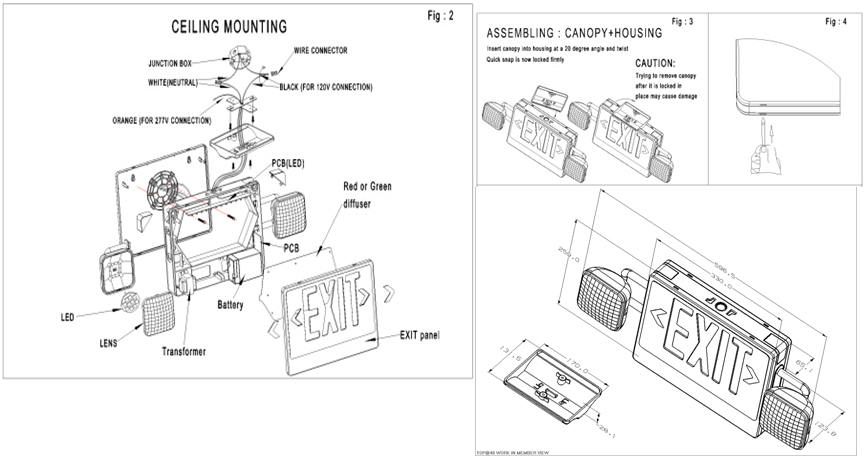

UL Exit Sign Emergency Light Combo LX-7604G R (3)

Application

Working temperature: -5℃-45℃

Working humidity:<90%

Used in Commercial/Residental areas

Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

UL Exit Sign Emergency Light Combo LX-7604G R (5)
UL Exit Sign Emergency Light Combo LX-7604G R (3)

Application

Working temperature: -5℃-45℃

Working humidity:<90%

Used in Commercial/Residental areas

Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration
Material Lumen Color
LX-7604G R AC120V/
277V 50/60Hz
Halogen
6v/5w*2
8w Lead-Acid 6v 4.5h ≥1.5Hours Fire retardant
ABS Housing
>8cd/m² Green/Red
