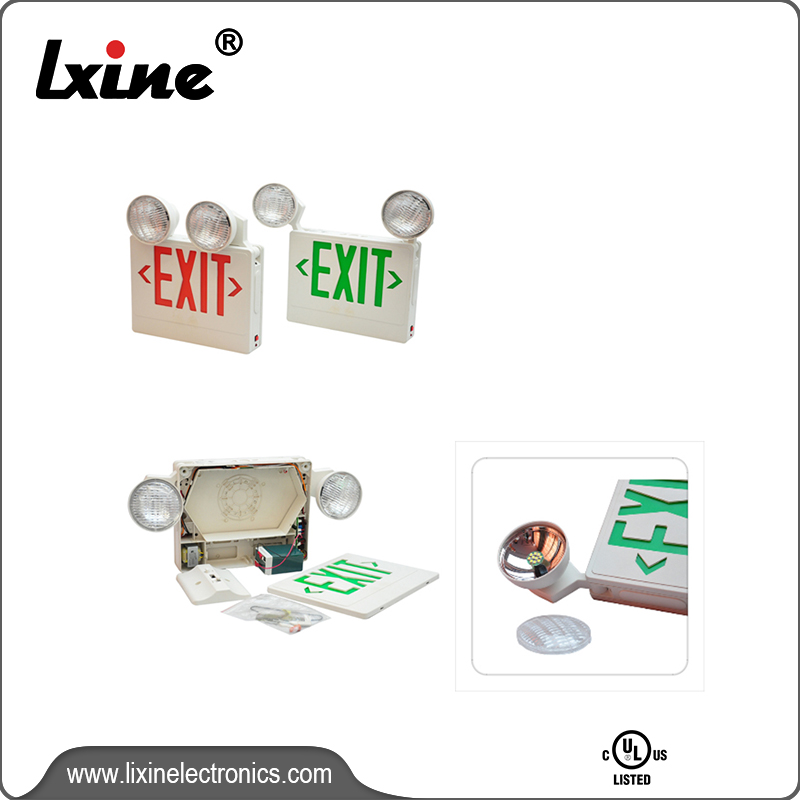

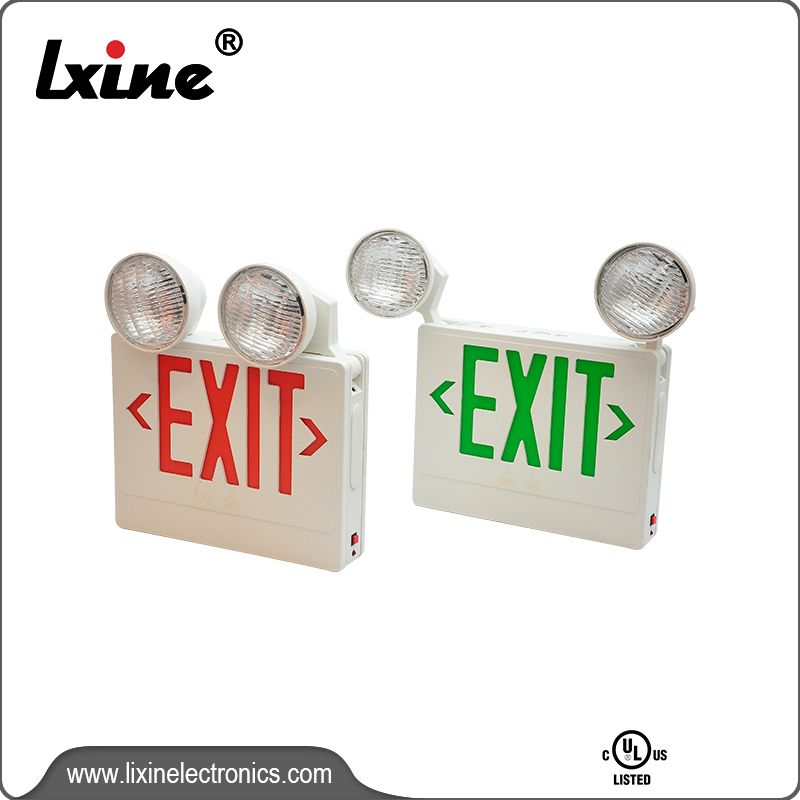

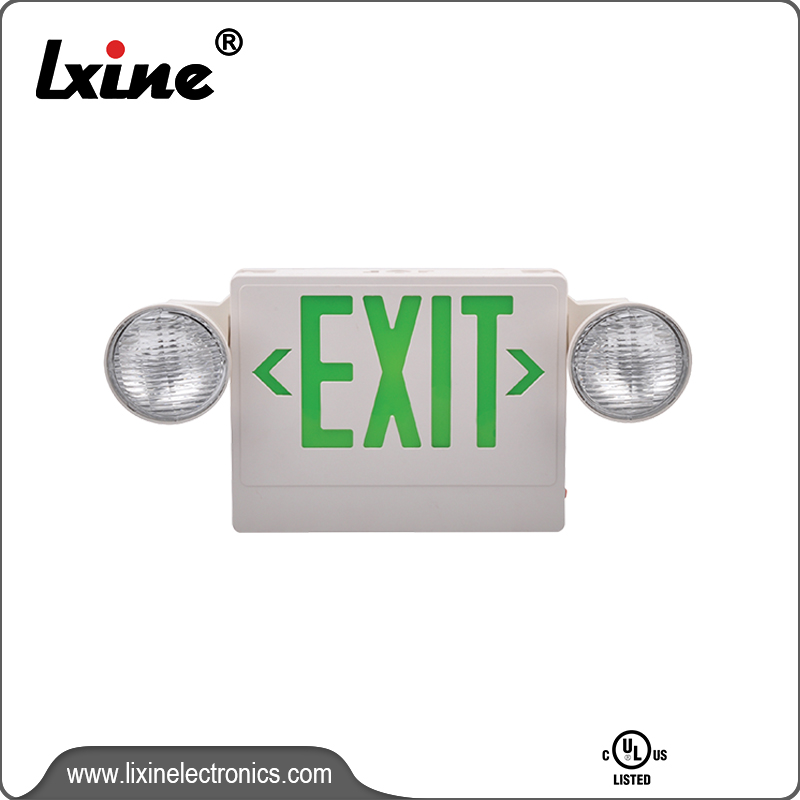

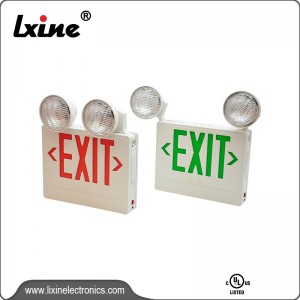

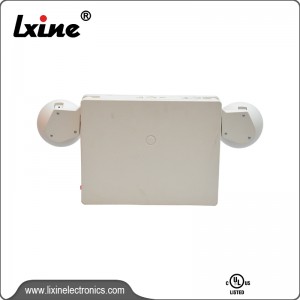

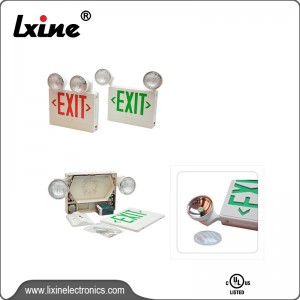

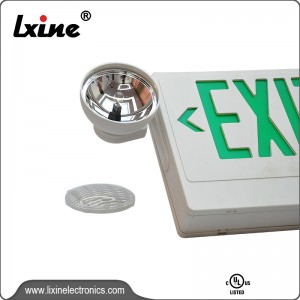

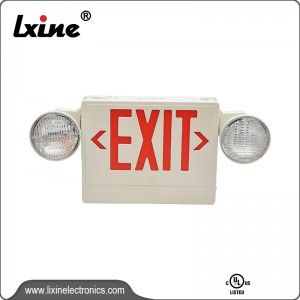

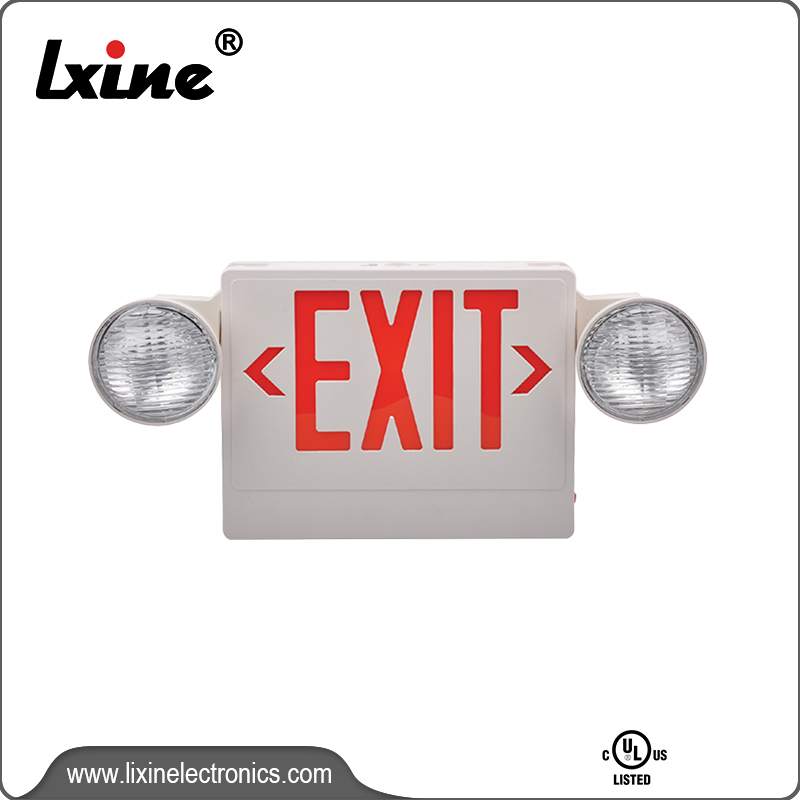

Exit light with two spot lamps LX-7602G/R

Exit light with two spot lamps LX-7602G/R Featured Image
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R
  • Exit light with two spot lamps LX-7602G/R

Short Description:

This is an exit sign with emergency lamps. The emergency exit sign combo model is the perfect solution for applications that require both an exit sign and an emergency light.

*Input Voltage:120V/277V AC 60HZ for exit sign lamps in normal state

*Rated Power:8W

*Exit sign with 12pcs led lights,two round heads with two 6V/5W halogen bulbs, the round heads can be adjusted to different angle



* LED indicator light and push button test switch

*Lead acid battery provides min.90 minutes backup power in the event of power off:6V 4.5AH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection
*UL approval, the emergency exit sign light is suitable for USA,middle east market

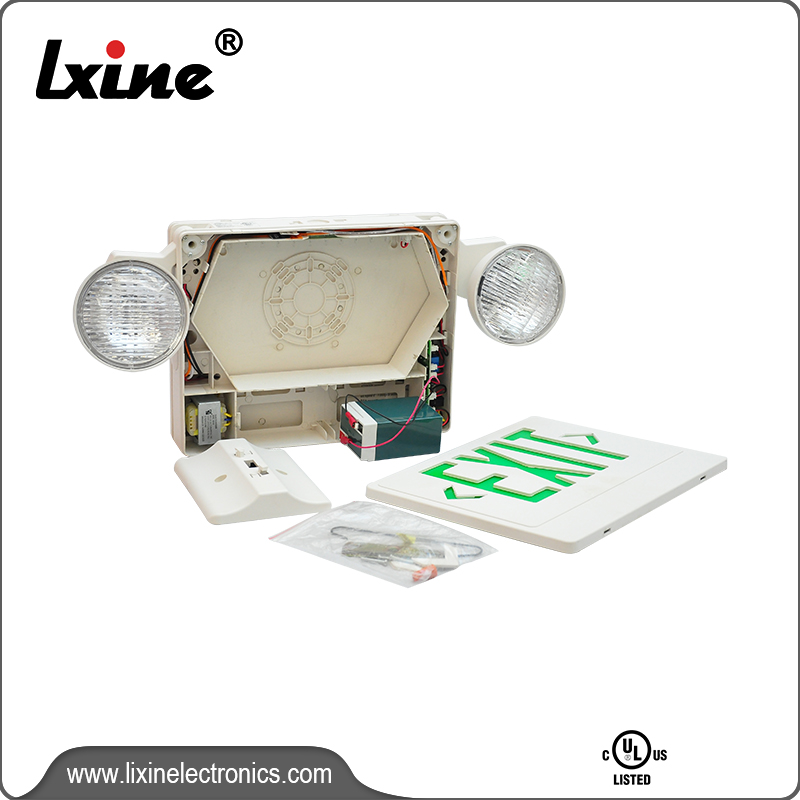

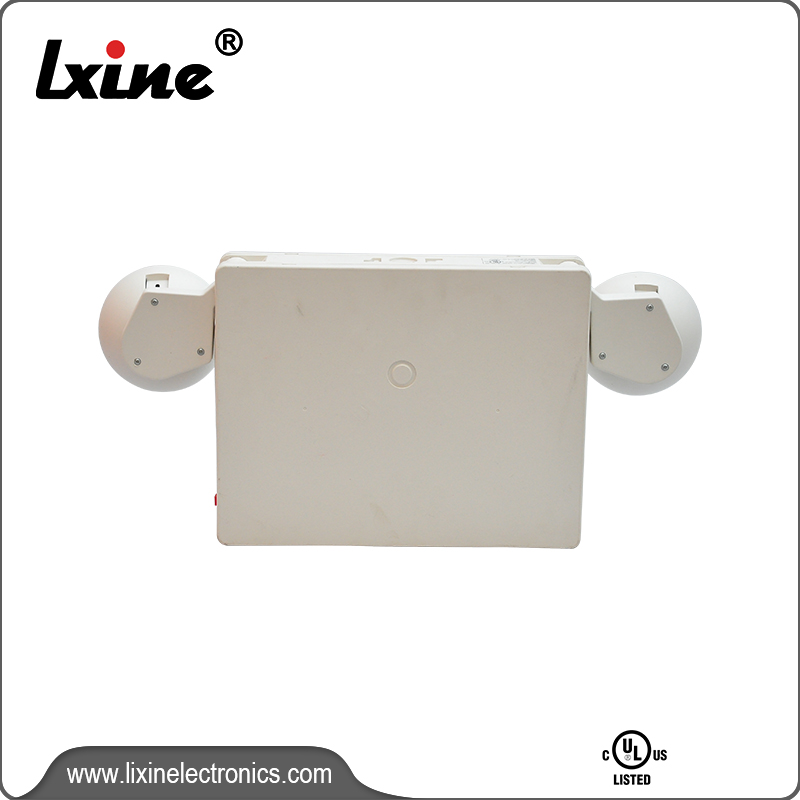

* Innovative snap-together design allows for fast wall or ceiling installation

*Replaceable directional chevron inserts are easily removed and reinserted

Emergency exit lights are designed to guide people to walk or run safely during an emergency. Emergency exit lights are a stand-alone system, which means they will stay lighting during main electricity off.




Product Detail

Product Tags

Regular Info

Model: LX-7602G/R MOQ： 500PCS
lead time： Regular 25working days
since deposit is received		 Payment： T/T
Brand Name： LXINE Price Term： FOB /CNF /CIF
Sample Lead Time： 5 working days after sample cost arrival Guarantee： 5 years for UL listed lights
1 years for battery
Certification: UL



Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

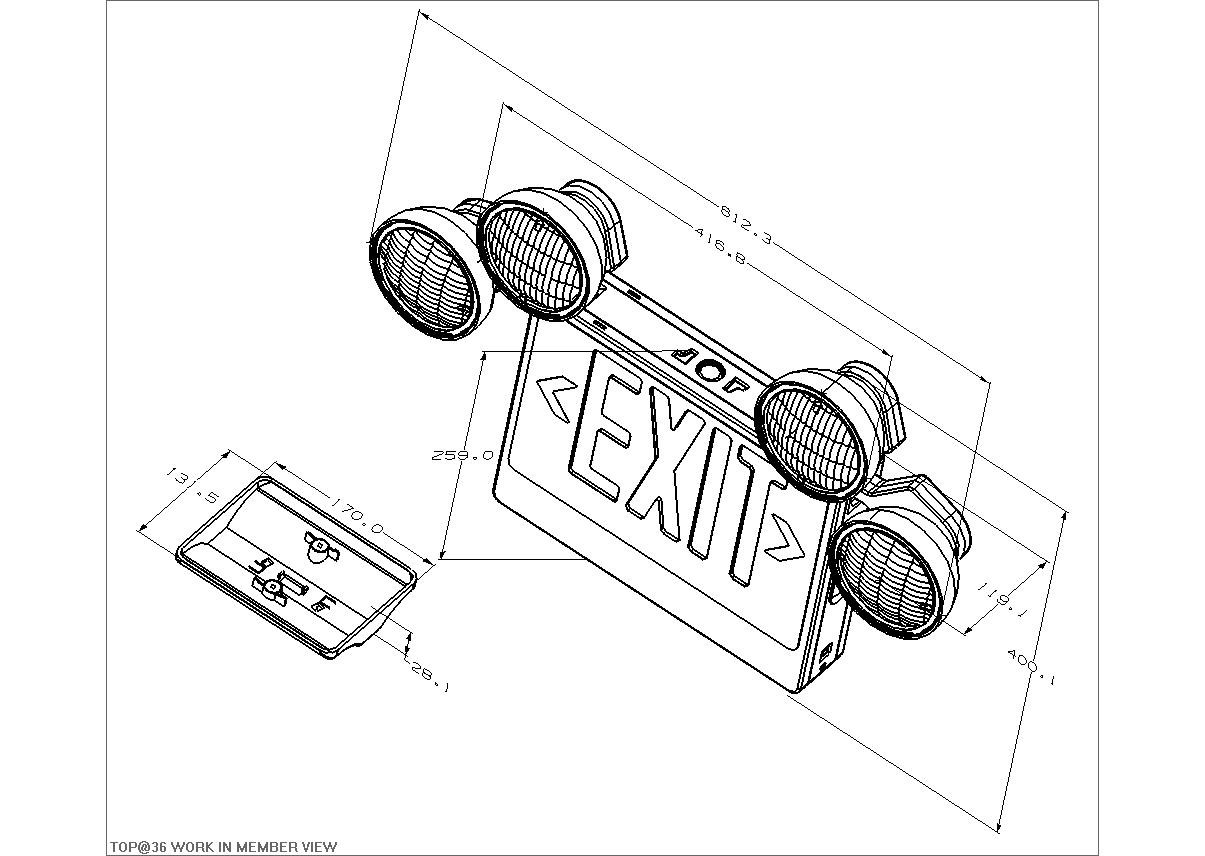

UL Exit Sign Emergency Light Combo X-7602G R (9)
UL Exit Sign Emergency Light Combo X-7602G R (2)

Application

Working temperature: -5℃-45℃

Working humidity：＜90%

Used in Commercial/Residental areas

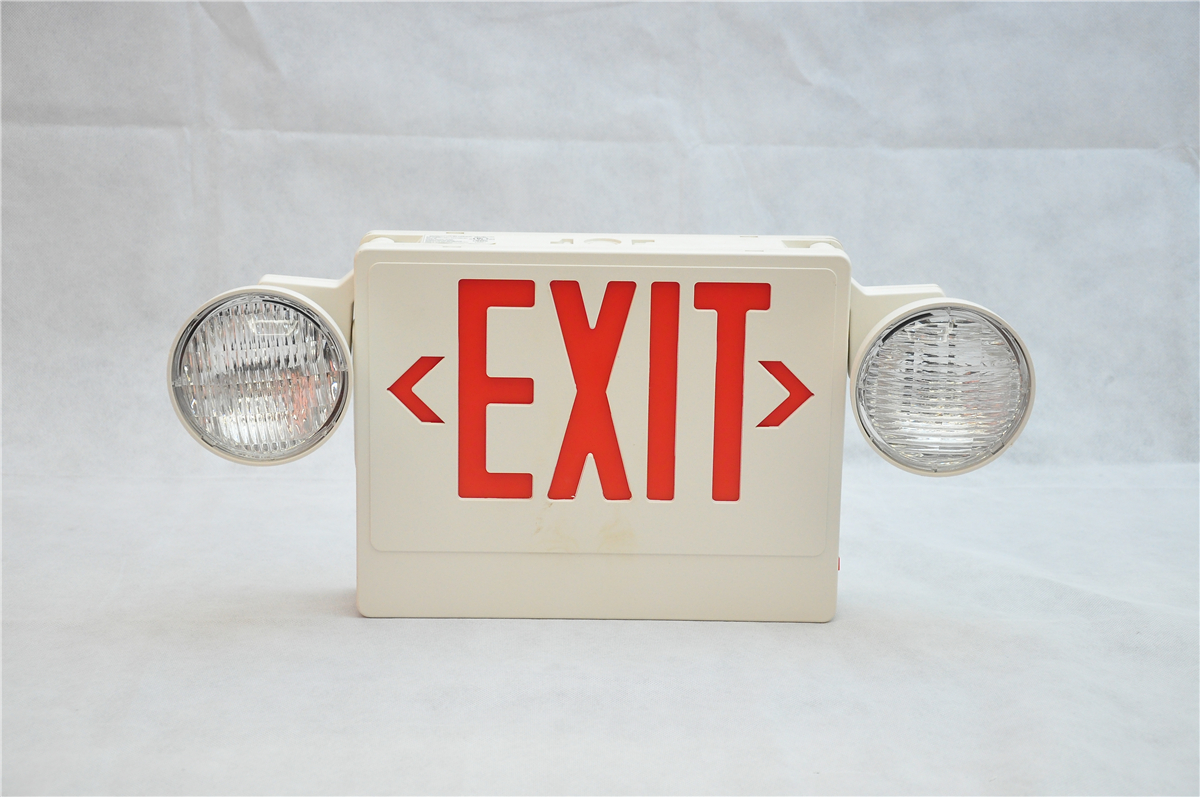

UL Exit Sign Emergency Light Combo (1)
UL Exit Sign Emergency Light Combo (2)

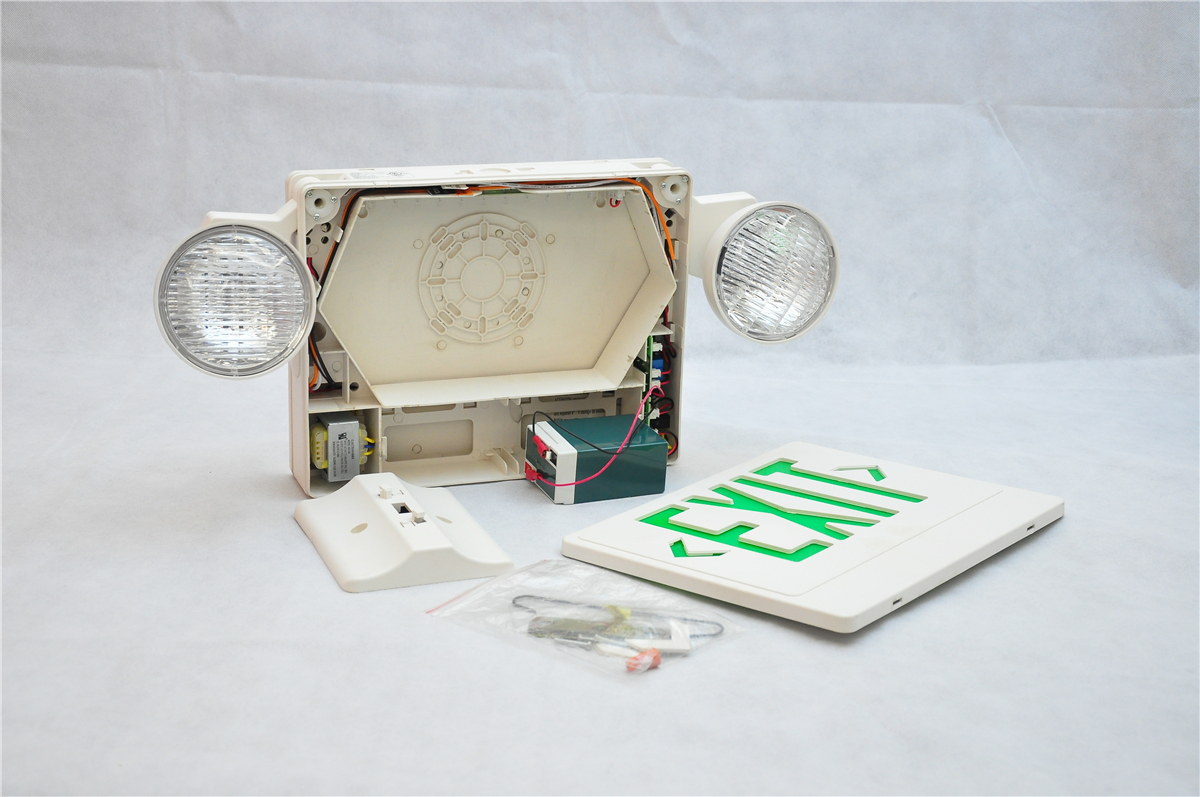

UL Exit Sign Emergency Light Combo (4)

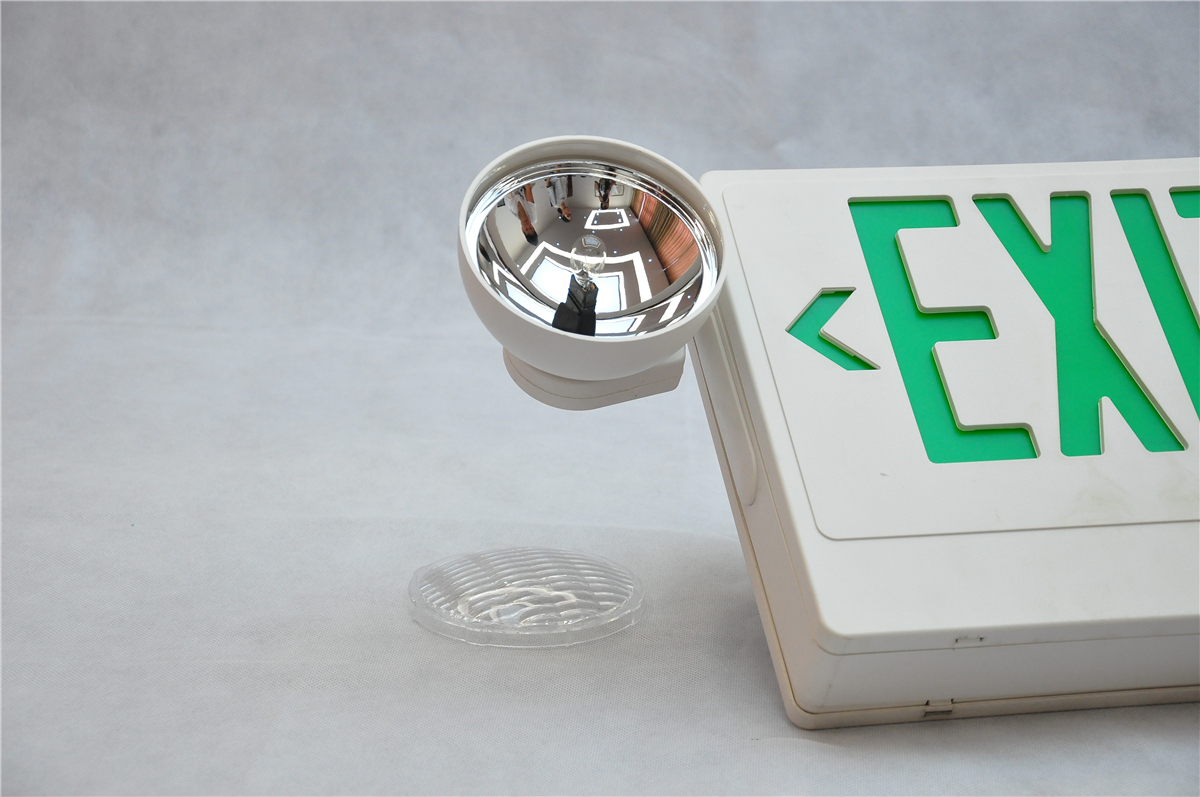

UL Exit Sign Emergency Light Combo (5)

Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

UL Exit Sign Emergency Light Combo X-7602G R (9)
UL Exit Sign Emergency Light Combo X-7602G R (2)

Application

Working temperature: -5℃-45℃

Working humidity：＜90%

Used in Commercial/Residental areas

Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration		 Material Lumen Color
LX-7602G R AC120V/277V 50/60Hz Halogen 6v/5w*2 8w Lead-Acid 6v 4.5h ≥1.5Hours Fire retardant
ABS Housing		 >8cd/m² Green/Red



UL Exit Sign Emergency Light Combo (1)
UL Exit Sign Emergency Light Combo (2)
UL Exit Sign Emergency Light Combo (4)
UL Exit Sign Emergency Light Combo (5)
