UL listed Exit sign light LX-741A34

Short Description:

LED EMERGENCY EXIT SIGN

*Aluminium alloy housing and high grade acrylic panel with good effect of light transmission
*14PCS LEDs light source

*Powerful self-test and self-diagnostic function: As soon as AC power is supplied to the exit sign light ,the unit will automatically initiate a self-test and self-diagnostic test.Red led indicator Verifies battery failure (disconnection、shorted、voltage drops below than acceptable value), charger board failure, lamps failure and transformer failure
*Input Voltage:Double voltage AC120V and AC347V 50/60HZ suitable for Canada market

*Rated Power:3W
*Built-in nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,maximum 24 hours for full recharging time,with battery overcharge protection
*UL approval

*Multiple –Mounting: There is extra accessory kit for easy installation, ceiling mounting or wall mounting could be finished in minutes

*Double face configuration: Different pictograms are optional,such as  running man,running man with left arrow, running man with right arrow,running man with down arrow

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

 3145852


Product Detail

Product Tags

Regular Info

Model: LX-741A34 MOQ: 500PCS
lead time: Regular 25working days
since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 5 years for UL listed lights  1 years for battery
Certification: UL



Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration
Material Lumen Color
LX-741A34 AC120V/347V 50/60Hz / 3w Ni-Cd  4.8V/500mAh ≥3Hours Fire retardant
ABS Housing
>8cd/m² Green

Features

CULs Listed UL924

Single or Double face configuration

Longlife LED Lighting

Universal wall, side or ceiling mounting

Removeable arrows

24 hours charging time

Battery overcharge protection

Charging LED indicator and test button

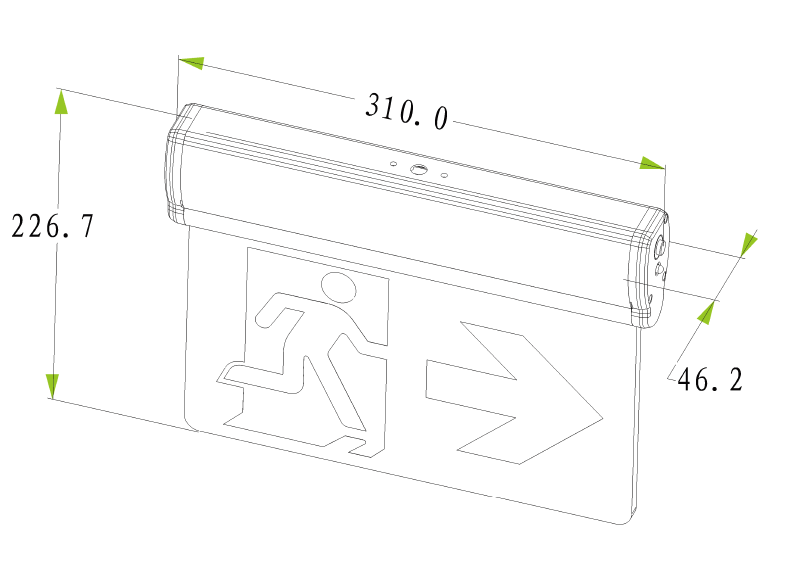

UL Exit Sign LX-741A34RG (1)

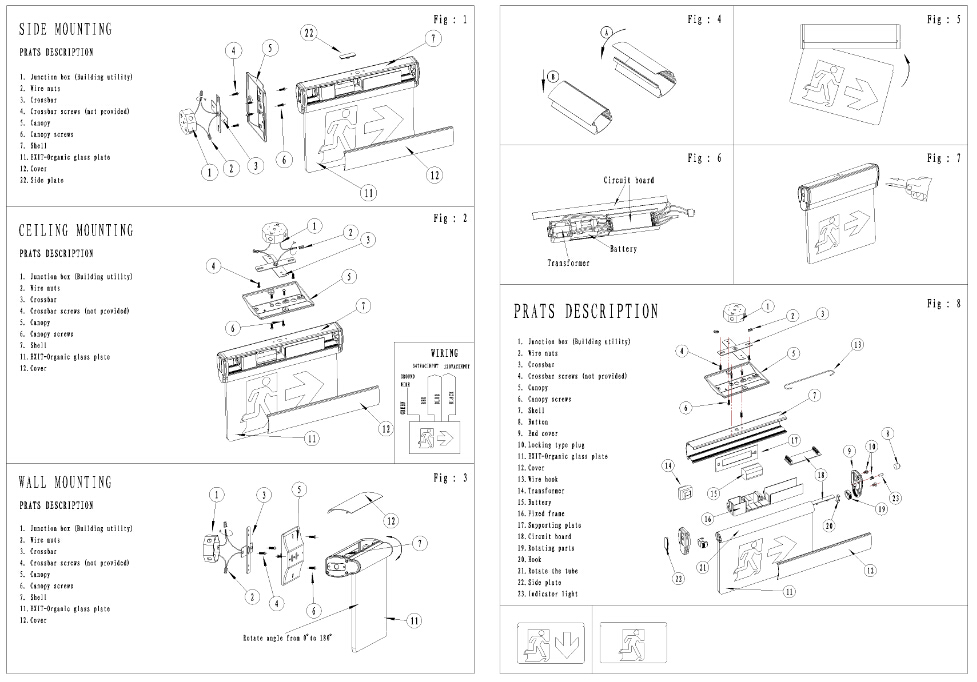

UL Exit Sign LX-741A34RG (2)

Application

1. Working temperature: -10oC-50oC

2. Working humidity: <90%

3. Used in commercial/Residential areas
