UL certified exit sign emergency lighting LX-755A12G/R

Short Description:

EMERGENCY EXIT SIGN LIGHT
*Fire retardant ABS housing, safe material for fire protection
*8PCS LEDs inside housing,two colors green and red are available

*Charge indicator light and test button can show us function at any time to ensure the light is workable
*Input Voltage:120V/277V AC 50/60HZ for different electricity demand
*Rated Power:2.5W
*Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 500MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection
*UL approval fire exit signs are suitable for USA,middle east market

*Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting

*Single or Double faces are optional: Extra face plate included for optional double sided use.The bracket is packed inside of the light housing

*There are two snap-in directional arrows in accessory bag

*Suitable for both commercial and residential areas

*1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available



SAFETY INSTRUCTIONS:

1.Do not use outdoors.

2.Do not mount near gas or electric heaters.

3.Do not let power supply cords touch hot surfaces.

4. Use caution when servicing batteries. Battery acid can cause burns

to skin and eyes. If  acid is spilled on skin or eyes. Flush acid with fresh water and contact a physician immediately.

5.Equipment should be mounted in locations and at heights where it

will not be subjected to tampering by unauthorized personnel.

6. The use of accessory equipment not recommended by the  manufacturer may cause an unsafe condition.

7.Do not use this equipment for other than its intended use.

8.Before wiring to power supply and during servicing,turn off AC power at fuse or circuit breaker.

9.Disconnect AC power and unplug battery before servicing.

10.Battery in this unit may not be fully charged.After electricity is

hooked up to unit,let the battery charge up for at least 24hrs,then

normal operation of this unit should take effect.

11.All Servicing should be performed by qualified personnel.


Product Detail

Product Tags

Regular Info

Model: LX-755A12G/R MOQ: 500PCS
lead time: Regular 25working
days since deposit is received
Payment: T/T
Brand Name: LXINE Price Term: FOB /CNF /CIF
Sample Lead Time: 5 working days after sample cost arrival Guarantee: 5 years for UL listed lights
1 years for battery
Certification: UL

Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration
Material Lumen Color
LX-755A12G/R AC120V/277V 50/60Hz / 2.5w Ni-Cd aa 4.8V/500mAh ≥3Hours Fire retardant
ABS Housing
>8cd/m² Green/Red

Features

UL Listed UL924

Single or Double face configuration

Longlife LED Lighting

Universal wall, side or ceiling mounting

Removeable arrows

24 hours charging time

Battery overcharge protection

Charging LED indicator and test button

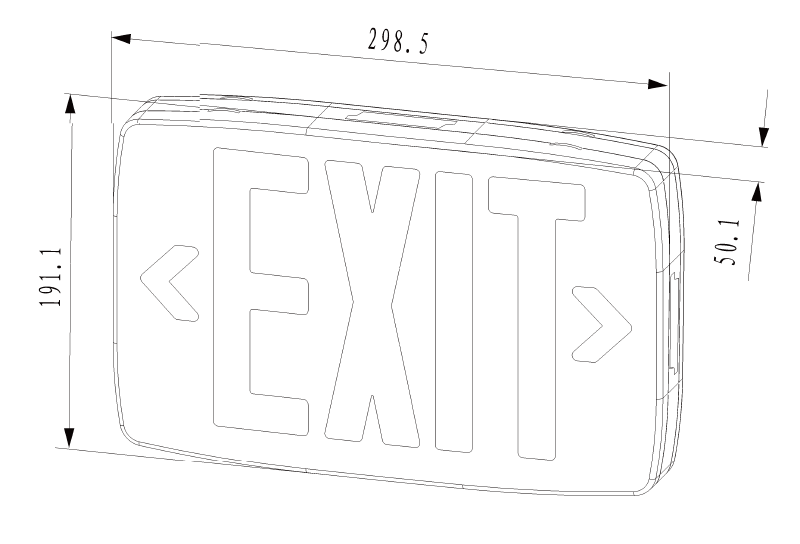

UL Exit Sign LX-755A12R G (2)

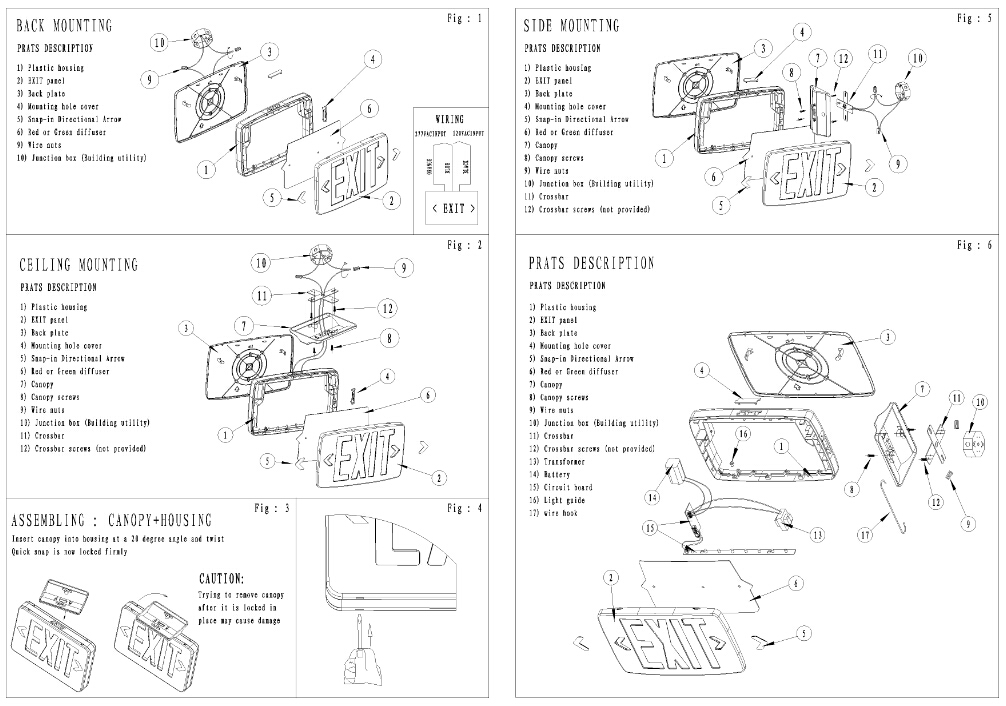

UL Exit Sign LX-755A12R G (1)

Application

1. Working temperature: -10oC-50oC

2. Working humidity: <90%

3. Used in commercial/Residential areas
