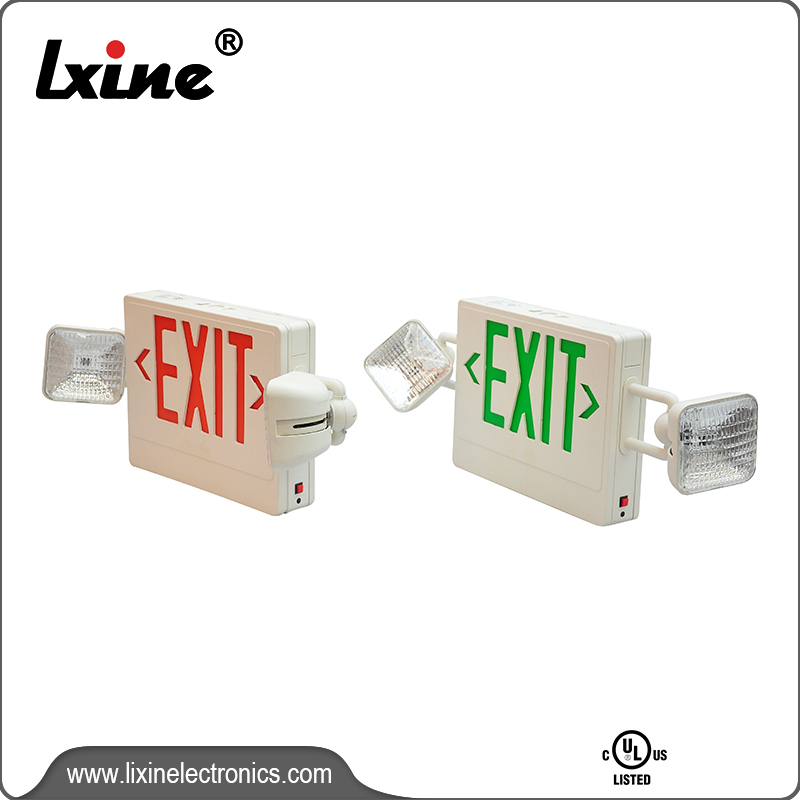

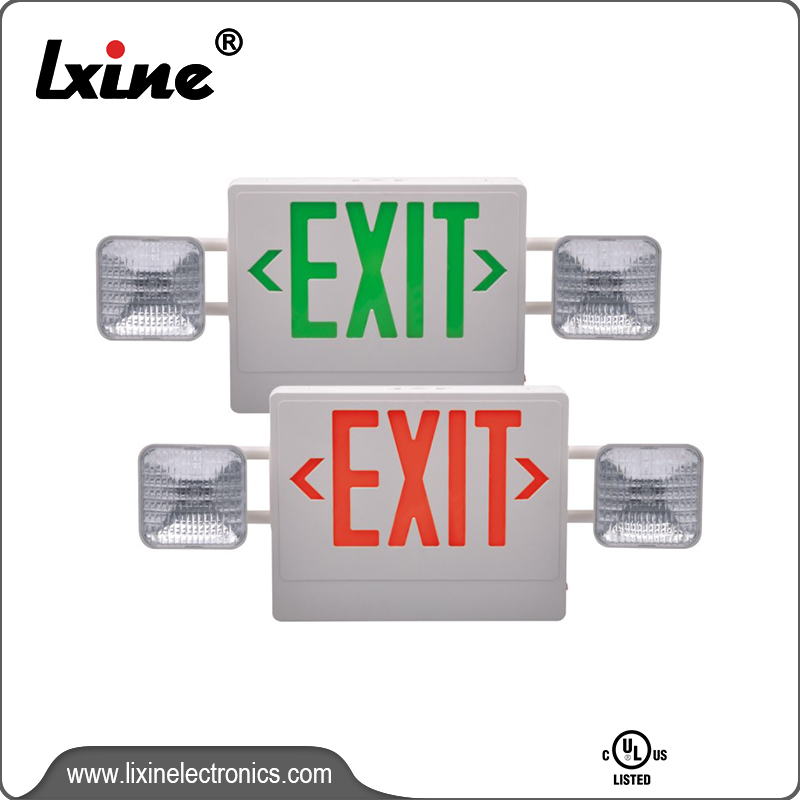

Led exit sign emergency lights LX-7603LG/R

Led exit sign emergency lights LX-7603LG/R Featured Image
  • Led exit sign emergency lights LX-7603LG/R
  • Led exit sign emergency lights LX-7603LG/R
  • Led exit sign emergency lights LX-7603LG/R

Short Description:

This is led exit sign light complies with UL924 emergency lighting and exit sign regulations.It is an economic and secure luminaire for applications that require both an exit sign and an emergency light.

*Input Voltage:AC 120V/277V 60HZ main power connection to exit sign light under normal condition

*Rated Power:8W

*Exit sign with 12pcs led lights,two adjustable square heads, each head has 10pcs leds,providing ultral bright lighting



*Lead acid battery provides min.180 minutes backup power in the event of power off:6V 4.5AH, 24 hours recharging after 180 minutes discharge,battery overcharge and discharge protection

* Snap-together design allows for quick and easy installation on surface wall and top mounting via included canopy accessories.

*Replaceable directional chevron inserts are easily removed and reinserted


Product Detail

Product Tags

Regular Info

Model: LX-7603LG/R MOQ： 500PCS
lead time： Regular 25working days
since deposit is received		 Payment： T/T
Brand Name： LXINE Price Term： FOB /CNF /CIF
Sample Lead Time： 5 working days after sample cost arrival Guarantee： 5 years for UL listed lights
1 years for battery
Certification: UL



Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration		 Material Lumen Color
 LX-7603LG R AC120V
/277V 60Hz		 LED
10PCS(5050)*2		 8w Lead-Acid 6v 4.5h ≥3Hours Fire retardant
ABS Housing		 >8cd/m² Green/Red



Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

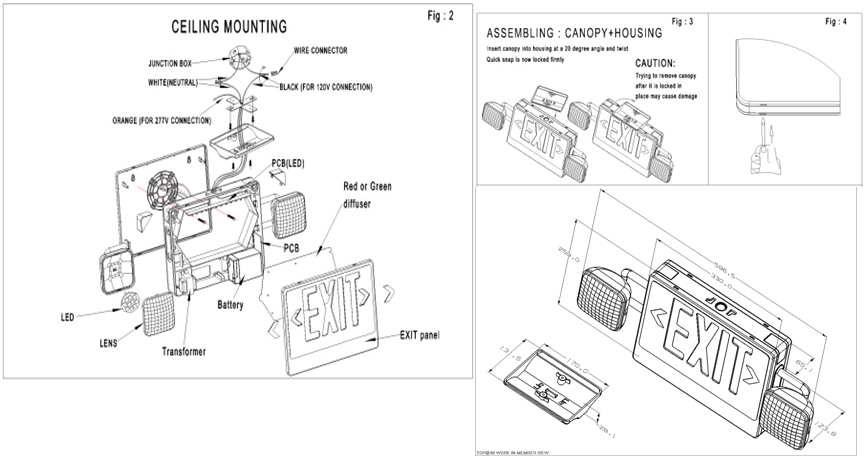

UL LED Exit Sign Emergency Light Combo LX-7603LG ( (3)

Application

Working temperature: -5℃-45℃

Working humidity：＜90%

Used in Commercial/Residental areas

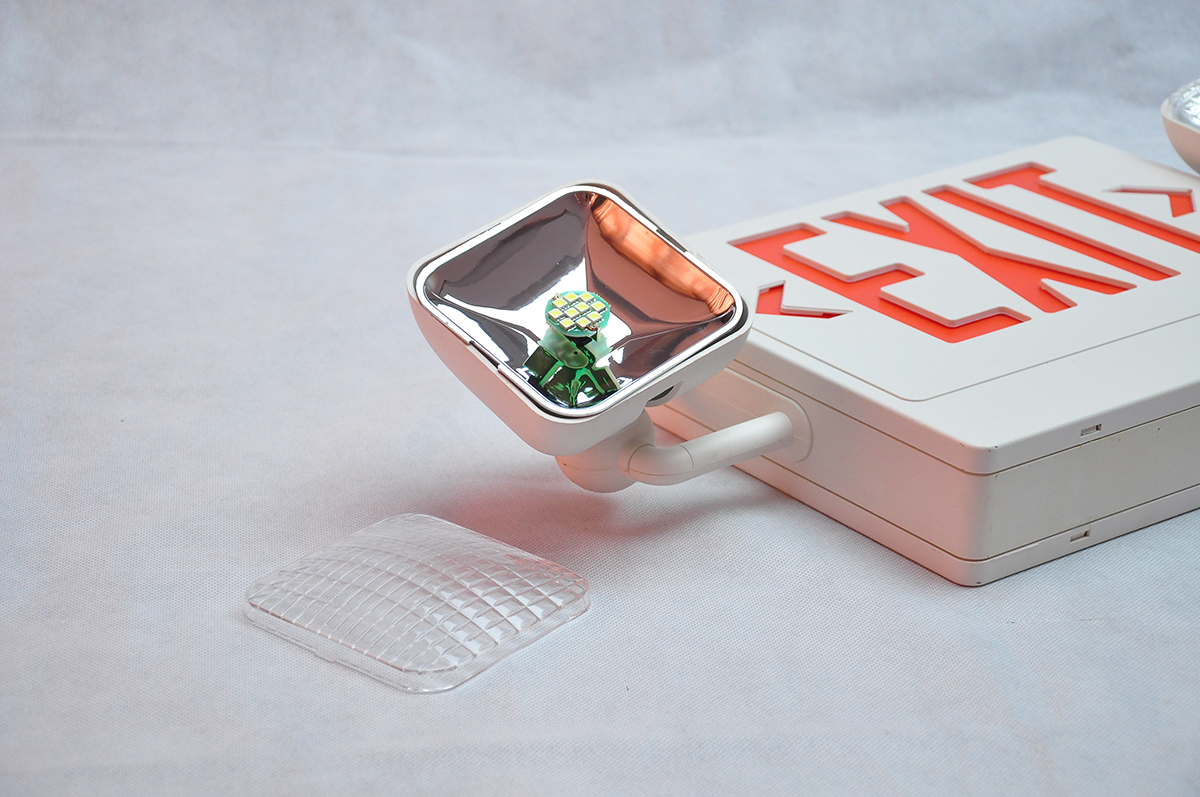

UL LED Exit Sign Emergency Light Combo LX-7603LG ( (4)
UL LED Exit Sign Emergency Light Combo LX-7603LG ( (5)

Features

·UL 924 standard, UL 94V-0 flame rating

·Single or double face configuration

·Longlife Halogen/LED Bulbs

·Wall,side or ceiling mounting

·Removeable directional arrow inserts

·24 hours charging time

·Battery Overcharge protection

·Charing LED indicator and test button

UL LED Exit Sign Emergency Light Combo LX-7603LG ( (3)

Application

Working temperature: -5℃-45℃

Working humidity：＜90%

Used in Commercial/Residental areas

Product Parameter

Item No. In put Voltage Light Source/Power AC Power Battery Emergency
Duration		 Material Lumen Color
 LX-7603LG R AC120V
/277V 60Hz		 LED
10PCS(5050)*2		 8w Lead-Acid 6v 4.5h ≥3Hours Fire retardant
ABS Housing		 >8cd/m² Green/Red



UL LED Exit Sign Emergency Light Combo LX-7603LG ( (4)
UL LED Exit Sign Emergency Light Combo LX-7603LG ( (5)
