Model #: LX-EFC802-1 1 zone —————LX-EFC802-2 2 zone —————LX-EFC802-4 4 zone   • Input Voltage: 220V - 230VAC 50/60Hz                                  • Battery: Lead-acid 1.4AH/12V * 2pcs • Built-in battery charger                                                             • External pushbuttons keyswitch activated • Internal power supply 24VDC                                                  • Auxiliary output 24VDC • External LED indicators                                                            • Mains supply monitored for failure • Battery charger monitored for failure                                        • Batteries monitored for disconnection/failure • Automatic loading and testing of battery                                  • Line fault monitored for open circuit • Line fault monitored for short circuit                                         • 20pcs max. number of smoke/heat detectors per zone • No limit numbers of manual call points per zone                      • End of line resistor(supplied) for sounder circuit • Evacuate (alarm resound)                                                         • Operating temperature -10℃ to +40℃ • Humidity 5% to 95%RH(non-condensing)                                 • Color: Black or White • Panel size: 273*200*77mm(1zone) / 310*250*96mm(2&4zone)

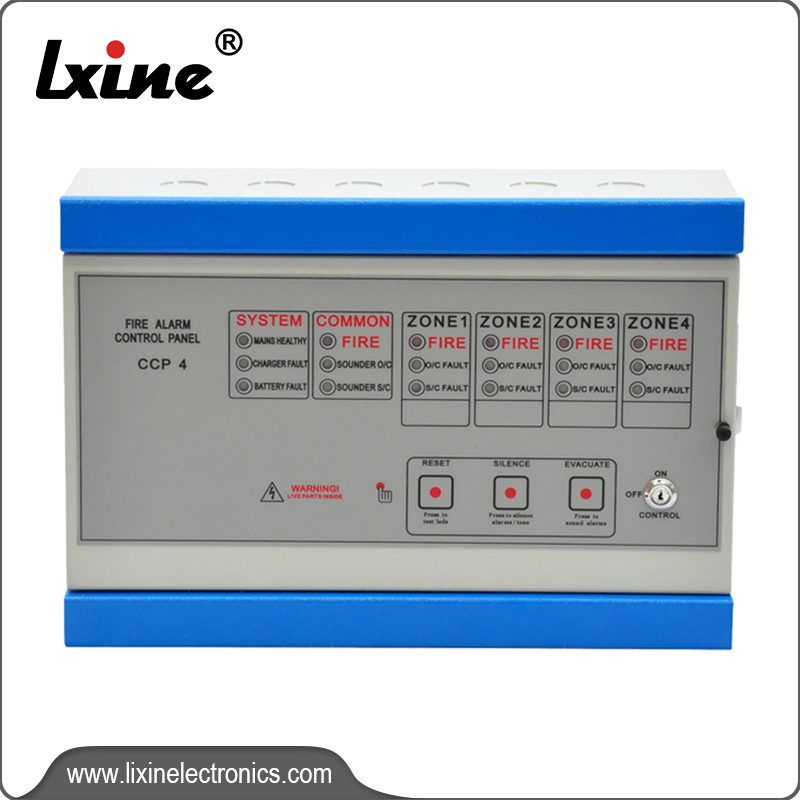

CONVENTIONAL FIRE ALARM PANEL,4 ZONES This control panel can be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system  to detect and warn people    through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated  automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure, battery fault or disconnected,alarm output wiring fault.   *Input voltage:240VAC+/-10% 50/60HZ *Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply *Charging voltage protection: 1.6Ah glass fuse *Sounder output: 24V nominal EOL 10K resistor * Auxiliary contacts: 30VDC, 1A max. NC/NO *Main supply protection: glass fuse *Sounder protection: 2 x 500mA glass fuse *Reverse battery protection: charger glass fuse *Zone EOL: 5.6K resistor *Color: ivory,blue,black *Zoned visual red alarm and yellow trouble indicators *Continuous signal during alarm *Low / no power and battery detection *Automatic loading and testing of battery *Battery lead reversal protection *Evacuate (alarm resound) *LED test

This control panel can be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system  to detect and warn people    through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated  automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure, battery fault or disconnected,alarm output wiring fault.   *Input voltage:240VAC+/-10% 50/60HZ *Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply *Charging voltage protection: 1.6Ah glass fuse *Sounder output: 24V nominal EOL 10K resistor * Auxiliary contacts: 30VDC, 1A max. NC/NO *Main supply protection: glass fuse *Sounder protection: 2 x 500mA glass fuse *Reverse battery protection: charger glass fuse *Zone EOL: 5.6K resistor *Color: ivory,blue,black *Zoned visual red alarm and yellow trouble indicators *Continuous signal during alarm *Low / no power and battery detection *Automatic loading and testing of battery *Battery lead reversal protection *Evacuate (alarm resound) *LED test

This control panelcan be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system  to detect and warn people    through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated  automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure, battery fault or disconnected,alarm output wiring fault.   *Input voltage:240VAC+/-10% 50/60HZ *Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply *Charging voltage protection: 1.6Ah glass fuse *Sounder output: 24V nominal EOL 10K resistor * Auxiliary contacts: 30VDC, 1A max. NC/NO *Main supply protection: glass fuse *Sounder protection: 2 x 500mA glass fuse *Reverse battery protection: charger glass fuse *Zone EOL: 5.6K resistor *Color: ivory,blue,black *Zoned visual red alarm and yellow trouble indicators *Continuous signal during alarm *Low / no power and battery detection *Automatic loading and testing of battery *Battery lead reversal protection *Evacuate (alarm resound) *LED test

This control panelcan be connected with a number of conventional devices, such as conventional smoke detectors,heat detectors, manual call points,fire alarms and fire alarm bells.All these devices work together as a system  to detect and warn people    through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present.Through the panel,these alarms may be activated  automatically from smoke detectors, and heat detectors or may also be activated via manual fire alarm activation devices such as manual call points. The panel buzzer will sound if any fault occur (detector fault,zone wiring fault,AC mains failure, battery fault or disconnected,alarm output wiring fault.   *Input voltage:240VAC+/-10% 50/60HZ *Built-in lead-acid battery: 24VDC,rechargeable, work as backup power supply *Charging voltage protection: 1.6Ah glass fuse *Sounder output: 24V nominal EOL 10K resistor * Auxiliary contacts: 30VDC, 1A max. NC/NO *Main supply protection: glass fuse *Sounder protection: 2 x 500mA glass fuse *Reverse battery protection: charger glass fuse *Zone EOL: 5.6K resistor *Color: ivory,blue,black *Zoned visual red alarm and yellow trouble indicators *Continuous signal during alarm *Low / no power and battery detection *Automatic loading and testing of battery *Battery lead reversal protection *Evacuate (alarm resound) *LED test

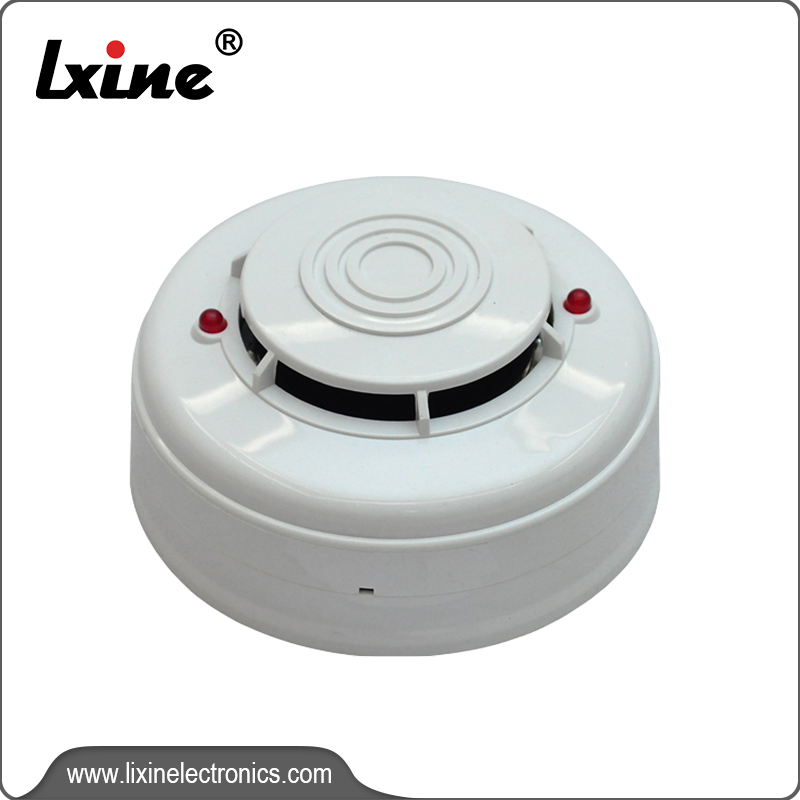

This optical smoke detector is designed to detect ambient smoke concentration.Generally it is connected with main controller.The main controller checks the current.When ambient smoke concentration reaches preset value,the led indicates alarm and the current increase. The smoke detector is suitable for industrial and civil building where there is explosive and combustible gas.

*Voltage:16VDC~32VDC

*Alarm current:10-100mA

*Quiescent:35uA @ 24VDC

*Working humidity:＜95%

*Operating temperature:0℃ to +90℃

*Two type optional:2 wire or 3 wire

*Explosionproof function,elegant shell,ceiling mounting easily in minutes

*After installing and switching on power,the detector is in operation state.When it detects the ambient smoke concentration is higher than preset alarm value,the LED always light.

*The smoke detector has good stabilization, false alarm is a little and it is not influenced by weather changing.

*No pollution, high safety

*Suitable spot:Stairway is very important for you to rush out when fires occur,so there must install smoke detectors.

In the circumstance where there are smog and steam resorting.

Kitchen,bedroom,storeroom,indoor carbarn,smoking room,electrical machine house,drying workshop,indoor carbarn,smoking room,etc.

*Install the smoke detector in the middle of ceiling,because smog and heat always lift to the top of rooms.

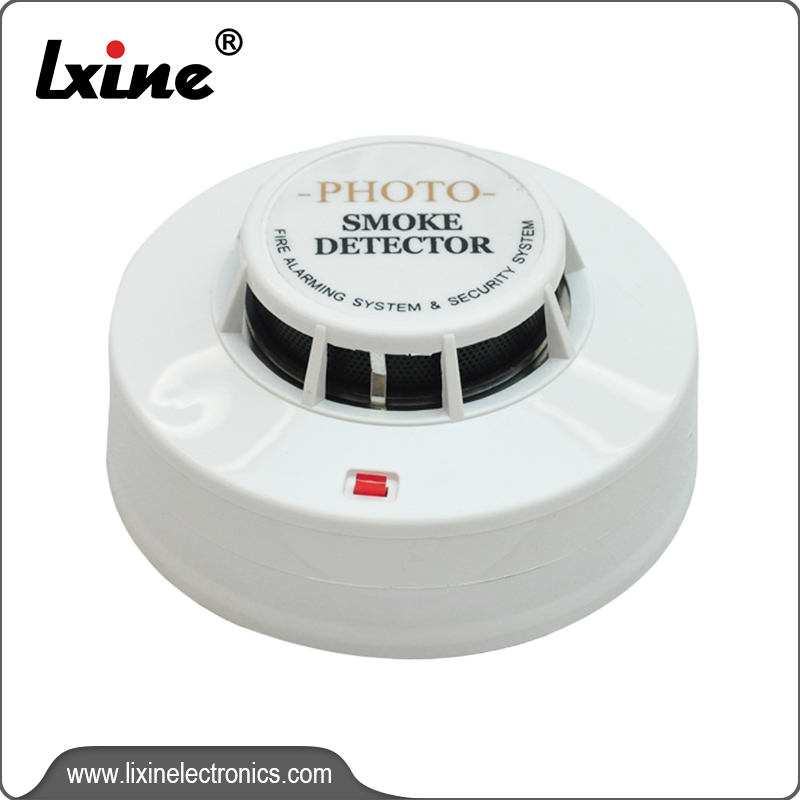

This optical smoke detector is designed to detect ambient smoke concentration.Generally it is connected with main controller.The main controller checks the current.When ambient smoke concentration reaches preset value,the led indicates alarm and the current increase. The smoke detector is suitable for industrial and civil building where there is explosive and combustible gas.  *Voltage:16V~32V DC *Alarm current:10-100mA *Static current/voltage:35uA/24VDC *Working humidity:＜95% RH *Operating temperature:0℃ to +90℃ *4 wire *Photoelectric sensor *Explosionproof function,elegant shell,ceiling mounting easily in minutes *After installing and switching on power,the detector is in operation state.When it detects the ambient smoke concentration is higher than preset alarm value,the LED always light. *The smoke detector has good stabilization, false alarm is a little and it is not influenced by weather changing. *No pollution, high safety *Suitable spot:Stairway is very important for you to rush out when fires occur,so there must install smoke detectors. In the circumstance where there are smog and steam resorting. Kitchen,bedroom,storeroom,indoor carbarn,smoking room,electrical machine house,drying workshop,indoor carbarn,smoking room,etc. *Install the smoke detector in the middle of ceiling,because smog and heat always lift to the top of rooms.

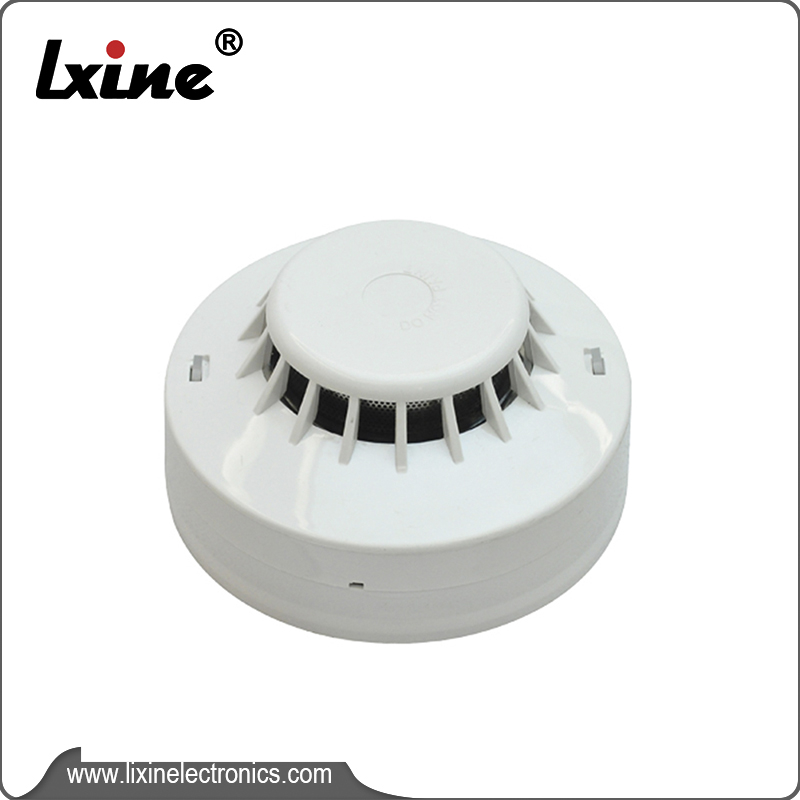

Model LX-249 belongs to photoelectronic smoke detectors which is designed to detect ambient smoke concentration.Generally it is connected with fire alarm system.The fire alarm control panel checks the current.When ambient smoke concentration reaches preset value,the led indicates alarm and the current increase. The smoke detector is suitable for industrial and civil building where there is explosive and combustible gas. *Voltage:16VDC~32VDC *Alarm current:10-100mA *Working humidity:＜95% *Operating temperature:0℃ to +90℃ *Two type optional:2 wire or 3 wire   *Explosionproof function,elegant shell,ceiling mounting easily in minutes * After installing and switching on power, the detector is in operation state. The led indicator flash every 10 seconds ，when it detects that the ambient smoke concentration is higher than preset alarm value the led always light.   *The smoke detector has good stabilization, false alarm is a little and it is not influenced by weather changing. *No pollution, high safety *Suitable spot:Stairway is very important for you to rush out when fires occur,so there must install smoke detectors. In the circumstance where there are smog and steam resorting. Kitchen,bedroom,storeroom,indoor carbarn,smoking room,electrical machine house,drying workshop,indoor carbarn,smoking room,etc. *Install the smoke detector in the middle of ceiling,because smog and heat always lift to the top of rooms.

This heat detector is designed to detect ambient temperature.Generally it is connected with main controller.The main controller checks the current.When ambient temperature reaches preset value or the temperature flare to rise,the led indicates alarm and the current increase. The detector is suitable for industrial and civil building where there is explosive and combustible gas.

*Voltage:12V-30VDC

*Detecting method:rate of rise and reaching alarm temperature 65℃

*Two type optional:2 wire or 3 wire

*Explosionproof function,elegant shell,ceiling mounting easily in minutes

*The power current should not exceed 30mA

*After installing and switching on power,the detector is in operation state.When it detects the ambient temperature is higher than preset alarm value or the temperature flare up to rise,the LED always light.

*The heat detector has good stabilization, false alarm is a little and it is not influenced by weather changing.

*No pollution, high safety

*Suitable spot:in the circumstance where there is smokeless fire and there are quantities of powder dust.Kitchen,boiler house,tea stove house,electrical machine house,drying workshop,indoor carbarn,smoking room,other rooms or public place where smoke detector is not fit to install.

This fire alarm siren is connected with main controller.When the main controller receives signal of a fire, the fire alarm horn will sound continuous alarm and flashing at the same time to remind people escape from the fire. *Voltage:24VDC * Rated current: 80 to 100mA *Flash intensity: 1.2s *Flash period: 1.5s *Audio alarm: 110dB *Life of flash light: 40,000 times * Working temp: -10℃ to+55℃ *Working humidity: ≤95%RH *Sound type: 3 kinds of sound optional, ambulance, pumper and police car sound *Durable plastic case and elegant style, built-in light tube which will flash in alarm state This firm alarm siren is suitable to be installed in home, hotel,office,restaurant,etc. Practice fire safety: Expose everyone to the sound of the fire alarm in daily life and explain what the sound means and how to operate the fire alarm button if a fire occurs.Discuss in advance two exits from each room and an escape route to the outside from each exit.Teach them to crawl along the floor to stay below dangerous smoke,fumes and gases.Determine a safe meeting place in advance for all members outside the building.

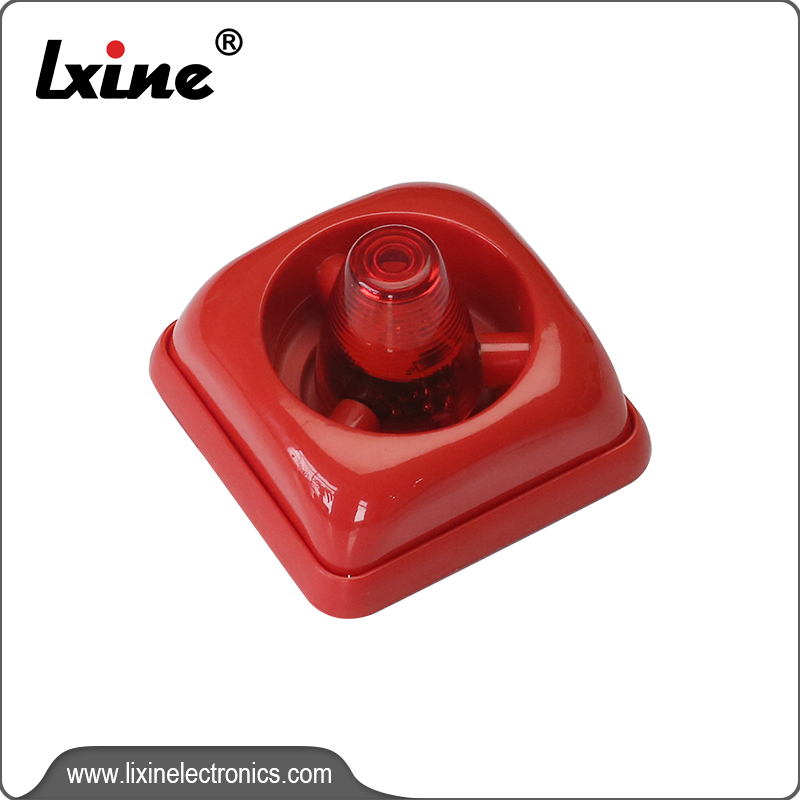

LX-901 fire siren is a panalarm installed in the locale,used to remind people when breaking out of fire. It will give a sound and light alarm signal when adding 24V DC in the input of the panalarm(red wire with positive pole and black wire with negative pole).It is connected with fire alarm system and when the control panel receives signal of a fire, the siren will sound continuous alarm and flashing at the same time.   The fire siren with red superbright led has powerful sonority up to about 100db/1 meter at 24VDC.Its low power consumption and long operating life is a important factor for people’s choosing. Please pay attention to operating current.When current is 22mA only bell works,and both bell and strobe work when current reach to 50mA.     This firm alarm siren is suitable to be installed in home, hotel,office, school,restaurant,etc.

LX-902 fire siren is a panalarm connected with fire alarm control panel. When the control panel receives signal of a fire, the siren will sound continuous alarm to warn people to escape from fire.   The fire siren has powerful sonority up to about 100db/1 meter at 24VDC.Its low power consumption and long operating life is a important factor for people’s choosing.   This firm alarm siren is suitable to be installed in office building, school, hospital,hotel, restaurant,etc.
