Non-Addressable gas detector，applicable to 4 wire

non-addressable fire detection control and indicating equipment,

it will alarm through light /sound when the combustible gas leaks.

*Working voltage:16VDC~32VDC

*Power consumption: 1.7W

*Sensitivity : 10%LEL

*Alarm sonority：≥85bd

*Working humidity: ≤95%RH

*Operating temperature:-10℃ to +50℃

* Built-in signal relay

*Regular packing is each gas detector is packed into a neutral white box, 100pcs/master carton

 Status indication :

When green light flash, sensor warm-up ;

When green light on, sensor turn into the working status ;

When red light flash, buzzer tweet by pulse, means it detects the combustible gas,and alarm through light/sound.

 Practice fire safety:

Expose everyone to the sound of the fire alarm in daily life and explain what the sound means and how to operate the fire alarm button if a fire occurs.Discuss in advance two exits from each room and an escape route to the outside from each exit.Teach them to crawl along the floor to stay below dangerous smoke,fumes and gases.Determine a safe meeting place in advance for all members outside the building.

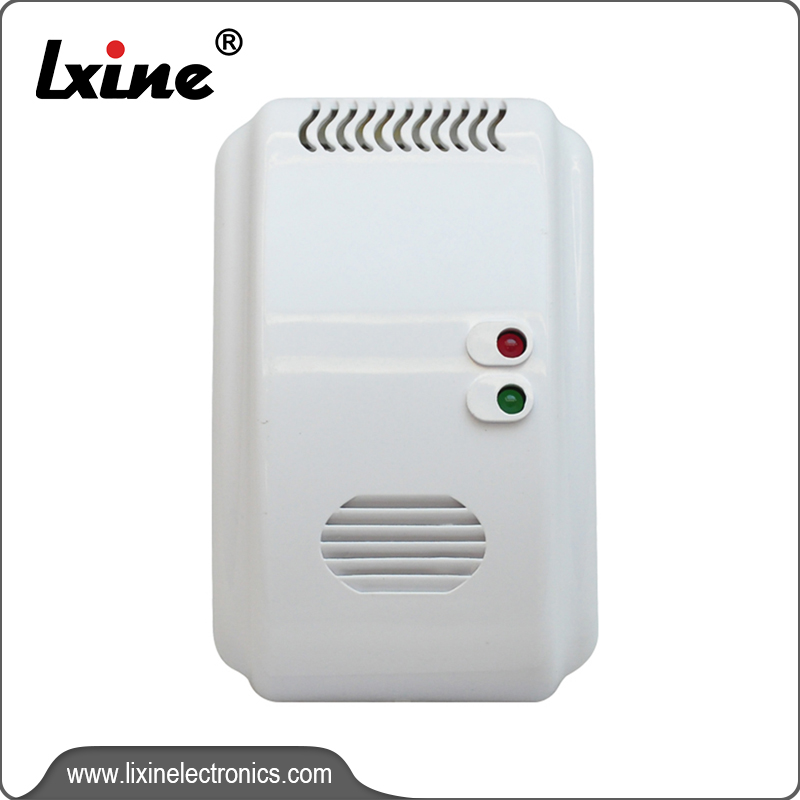

Model LX-212AD gas detector has superior gas sensor with Japan technology.Double power supply 220V AC or 12V DC optional. It has sensitivity of 10% LEL. This gas leak detector suitable for detecting LPG(Butane, Propane）used in normal and mini gas bottles,detecting gas from piping system (city gas) and natural gas (Methane).

 Green indicator is for power.Red light is alarm indication.

Besides visual alarm signal of red indicator, the gas detector provides audible signal of 85db alarm sound,reducing the risk of gas explosion and protect your family’s life and property safety.

Gas detectors are widely used at home,restaurant,hospital,garage or oil factory.

Model LX-212ADL gas detector has superior gas sensor with Japan technology.Double power supply 220V AC or 12V DC optional. It has sensitivity of 10% LEL. This gas leak detector suitable for detecting LPG(Butane, Propane）used in normal and mini gas bottles,detecting gas from piping system (city gas) and natural gas (Methane).

Green indicator is for power.Red light is alarm indication.

The gas detector has built-in relay and can be connected to system solenoid valve and fan.

Besides visual alarm signal of red indicator, the gas detector provides audible signal of 85db alarm sound,reducing the risk of gas explosion and protect your family’s life and property safety.

Gas detectors are widely used at home,restaurant,hospital,garage or oil factory.
