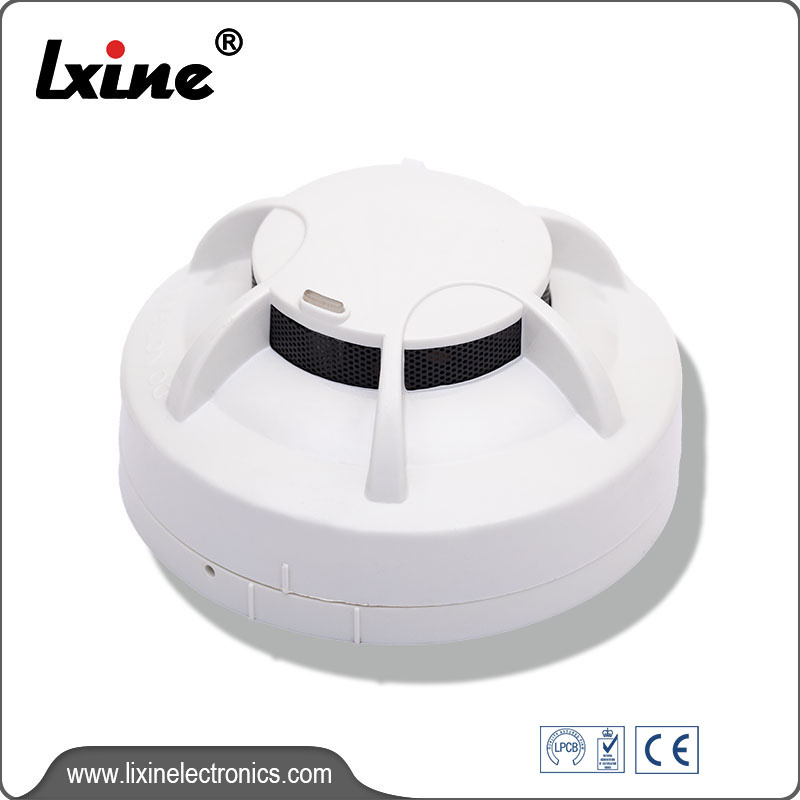

lx-5161 Addressable Photoelectric Smoke Detector
Feature
▪ Infrared scattering principle
▪ Non-polarized two-wire
▪ Drift compensation and fault detecting function
DETAILS
1. Base of the detector is shown below. There are 2 conductor pieces with terminals on the base. Detector’s loop should be respectively connected with two terminals (non-polarized).After the base is fixed firmly, rotate the bottom of detector and base clockwise, and then the detector will be fitted to the base.
2. 1.0mm² or above fire cable, subject to local codes.
EN54-7 CERTIFIED
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Operating Voltage |
Loop 24V(18.5V~26V) |
|
Operating Current |
Standby current:≤0.3mA;Alarm current:≤0.8mA |
|
Weight |
About 110g |
|
Code range |
1~255 |
|
Coding method |
Electronically coding |
|
Dimension |
100mm×51mm(with base) |
|
Mounting hole distance |
60mm |
|
Operating environment |
Temperature:-10℃~+55℃, Relative Humidity:≤95% non-condensing |
|
Ingress protection rating |
IP23 |
|
Material and color of enclosure |
ABS;Milky white |
|
Maximum transmission distance |
1000m |
