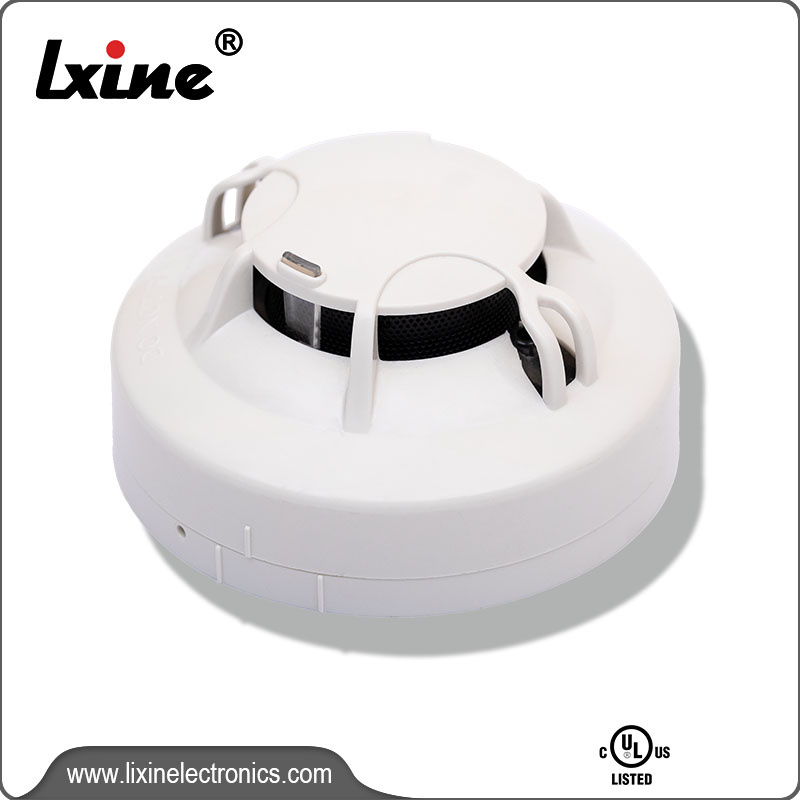

LX-5163 Addressable Heat&Smoke Multi Detector
FEATURE
▪Supervising external circuits function for input andoutput
▪single chip processes data in real time
▪drift compensation and dust accumulation and report pollution self-diagnosis function
▪non-polarized two wire bus signal
DETAILS
1. There are 2 conductor pieces with terminals on the base.
Loop of the detector should be connected with two terminals (polarity-insensitive).
After the base is fixed firmly, rotate the bottom of detector and base clockwise, and then the detector will be fitted to the base
2. 1.0mm² or above RVS twisted pair, laid out through metal conduit or flame-resistant conduit.
EN54-5 CERTIFIED
Wiring Diagram
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Operating Volate |
loop 24V(16~28V) |
|
Operating Current |
Monitoring current: ≤ 0.3mA ;Alarm current: ≤ 0.9mA |
|
Weight |
About 110g |
|
Protected area |
20~30㎡ |
|
Operating environment |
Temperature: -10℃~+55℃; relative humidity: ≤95%, non-condensing |
|
Dimension |
100mm×51mm |
|
Mounting hole distance |
60mm |
|
Ingress protection rating |
IP23 |
|
Material and color |
ABS;Milky white |
|
Maximum transmission range |
1500m |
