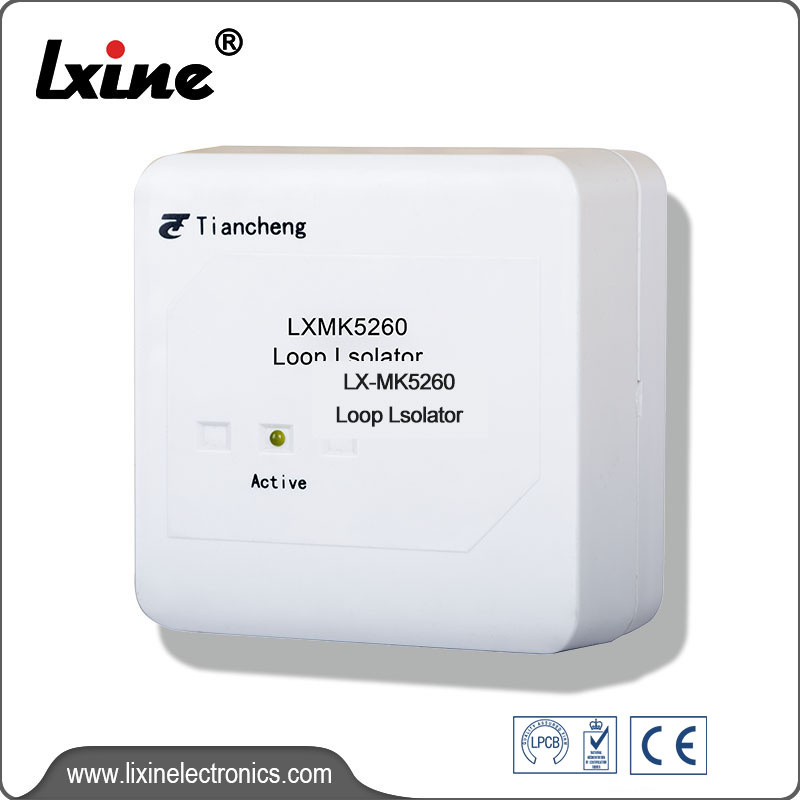

LX-MK5260 Addressable Loop Isolator
FEATURE
▪ Polarized connection with peripheral devices and no need to transfer connection of input and output.
▪ Delayed power supply to output terminal devices will avoid over load or strong transient current
▪ Plug-in structure
▪ Non-polarized two-wire
DETAILS
Take surface installation for the isolator, install the base upward of the arrow direction, plug-in for the isolator to the base. Pull off the isolator, wear the cable through wiring hole on the base and connect correspondent terminal and plug in the isolator. Mounting hole distance is 60mm.
Wiring instruction:BS(pin 5),AS(pin 8):loop negative; BP(pin 6),AP(pin 7):loop positive
The positive cable inserts from pin 7 and out from pin 6. The cable negative inserts from pin 8 and out from pin 5. Please refer to control panel TC5109 terminal mark wiring. 5.6 Recommended Cabling:1.0mm² or above fire cable，subject to local codes.
EN54-17 CERTIFIED
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Operating voltage |
Loop 24V(18.5V~26V) |
|
Operating current |
Loop polling current≤5.5mA,Loop activate current≤25mA |
|
Indicator |
Yellow,light out in normal condition,Illuminates in action |
|
Operating Environment |
Temperature:-10℃~+50℃;Relative Humidity:≤95%non-condensing |
|
Coding method |
Electronically coding |
|
Material and color of enclosure |
ABS;Porcelain white |
|
Mounting hole distance |
60mm |
|
Dimension(L×W×H) |
86mm×41mm×86mm(with base) |
|
Ingress protection rating |
IP30 |
|
Weight |
147g(with base) |
