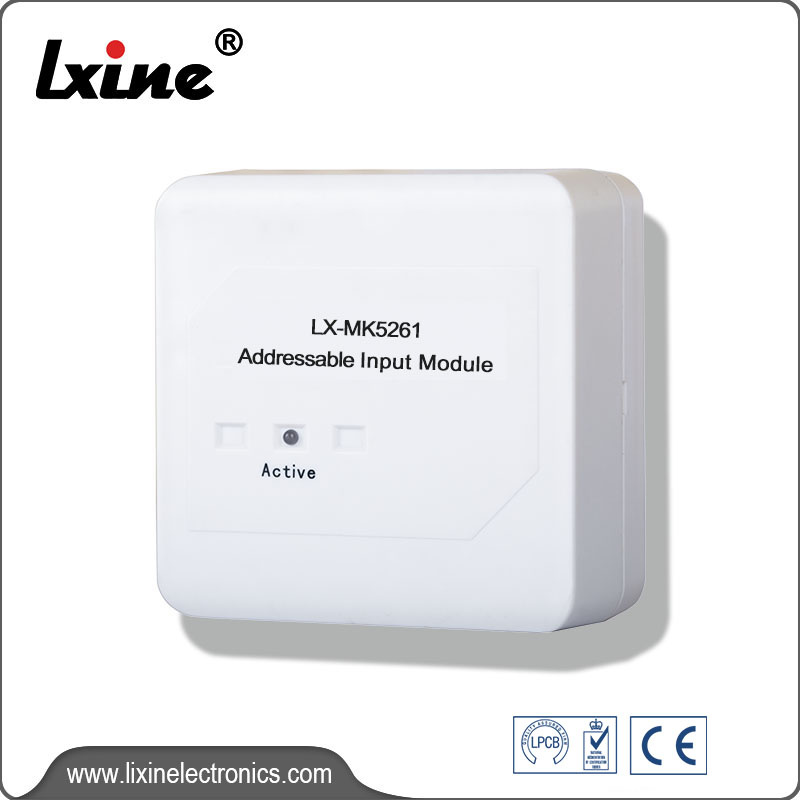

LX-MK5261 Addressable Input Module
FEATURE
▪ Designed to connect with active devices in field such as water flow indicator, pressure switch, position switch, signal valve and devices able to transmit back switch signals
▪ The built-in microprocessor processes messages intelligently
▪ Plug-in structure
▪ Non-polarized two-wire
DETAILS
The module and base adopts plug-in structure . Unplug the module, put cables into the entrance hole and connect corresponding terminals. And then plug the modulte onto the base.
L1 (7), L2 (8): Non-polarized signal bus input terminal .
AS1 (9), AS2 (10): passive input, connect passive normally open contact (alarms when device's action closes);
It can also be set to normally closed input by using hand-held Encoder.
Signal bus L1 and L2 adopt RVS twisted pair, and cross section ≥1.0mm²; AS1 and AS2 adopt RV wire,and cross section≥1.0mm². The length of connecting cables should be limited to a signal wire's resistance≤20Ω,or increase the cable diameter.
EN54-18 CERTIFIED
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Operating voltage |
Loop 24V(16V~28V) |
|
Operating current |
Standby current:≤0.2mA;Action current:≤0.8mA |
|
Operating Environment |
Temperature:-10℃~+55℃;Relative Humidity:≤95% non-condensing |
|
Code range |
1~255 |
|
Weight |
ABS;Porcelain white |
|
Material and color of enclosure |
About 110g(with base) |
|
Mounting hole distance |
60mm |
|
Mounting hole distance |
60mm |
|
Dimension(L×W×H) |
86mm×38mm×86mm(with base) |
