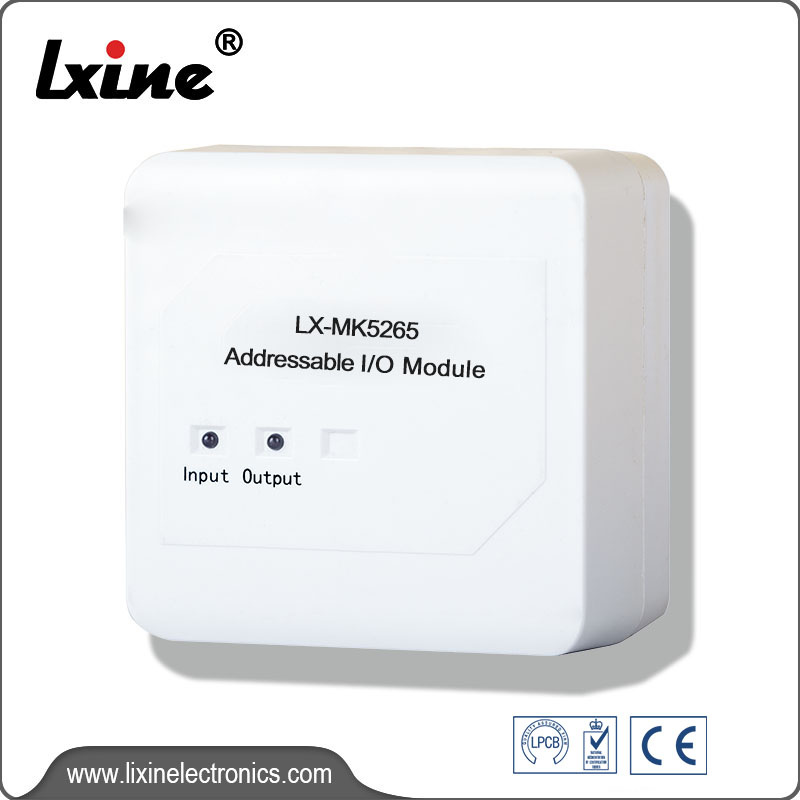

LX-MK5265 Addressable I/O Module (loop powered)
FEATURE
▪non-polarized two bus, ultra-low power consumption, no need to add DC24V power supply
▪passive outputvv input and output have isolating loop to effectively filter out external interference
DETAILS
1. Fix the base with two tapping screws, and then connect loop to terminals (polarity-insensitive). After the base is fixed firmly, rotate the bottom of detector and base clockwise, and then the detector will be fitted to the base.
2. Wiring instructions: RVS twisted pair with cross-sectional area≥1.0mm2 should be selected for the second bus of the detector, which should be laid through metal pipe or flame retardant pipe. The length of the connecting wire should be limited to the single bus resistance≤ 20Ω, otherwise the wire diameter should be increased.
EN54-18 CERTIFIED
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Rated operating voltage |
DC 24V(14V~28V) |
|
Operating current |
Monitoring current: ≤ 0.2mA start current: ≤ 0.5mA |
|
Operating Environment |
Temperature: -10℃~+55℃; relative humidity: ≤95%, non-condensing |
|
Input supervisory external loop |
Open circuit occurs when normally open terminal supervising external loop (short circuit is an action signal), the module will send a fault signal to the control panel. |
|
Material and color |
ABS;Porcelain white |
|
Output supervisory external loop |
Short circuit or open circuit on the output loop occurs,the module will send a fault signal to the contaol panel |
|
Weight |
147g |
|
Mounting hole distance |
60mm |
|
Dimension(L×W×H) |
86mm×86mm×38mm(with base) |
