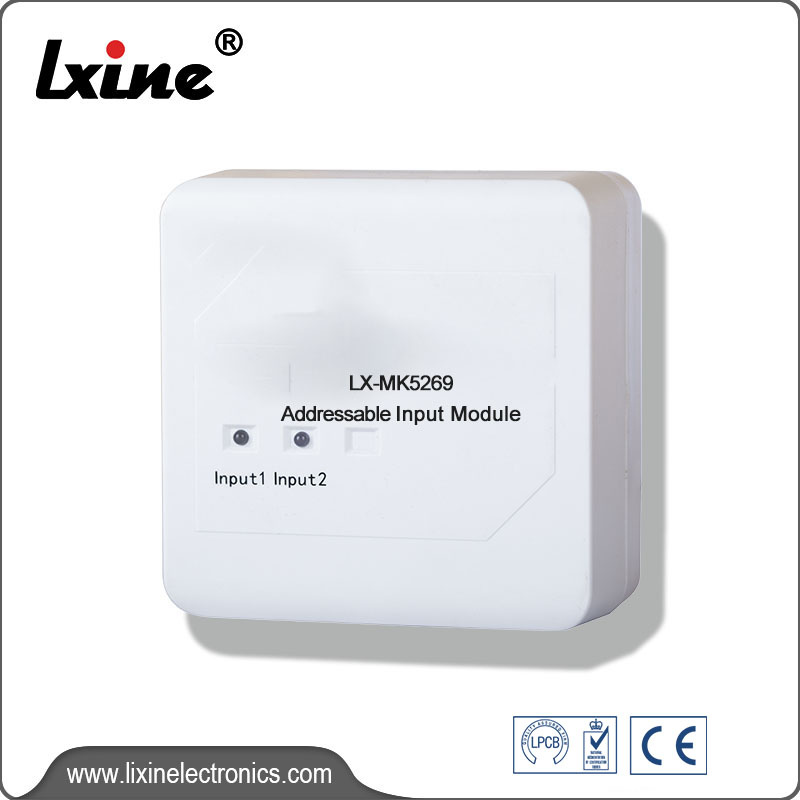

LX-MK5269 Addressable Input Module
FEATURE
▪the module has two input terminals, namely input 1 and input 2, which correspond to two ad.dresses respectively
▪input loop has the function of supervising the external loop and fault information will be reported when circuit breaks.
▪the microprocessor is adopted to realize signal processing, and the digital signal is used to communicate with the control panel, which works stably and reliably and has a good ability to suppress electromagnetic interference.
DETAILS
▪the module has two input terminals, namely input 1 and input 2, which correspond to two addresses respectively
▪input loop has the function of supervising the external loop and fault information will be reported when circuit breaks.
▪the microprocessor is adopted to realize signal processing, and the digital signal is used to communicate with the control panel, which works stably and reliably and has a good ability to suppress electromagnetic interference.
EN54-18 CERTIFIED
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Rated operating voltage |
DC24V(18.5V~26V) |
|
Operating current |
Monitoring current: ≤ 0.25mA;Single alarm current: ≤ 1.3mA;Dual alarm current: ≤ 2.4mA |
|
Operating Environment |
Temperature:-10℃~+55℃;Relative Humidity:≤95% non-condensing |
|
Wiring |
Connected with non-polarized bus two wire of the fire alarm control panel |
|
Material and color |
ABS;Porcelain white |
|
Input method |
Open circuit occurs when normally open terminal supervising external loop (short circuit is an action signal) |
|
Weight |
110g |
|
Mounting hole distance |
60mm |
|
Dimension(L×W×H) |
86mm×86mm×38mm(with base) |
