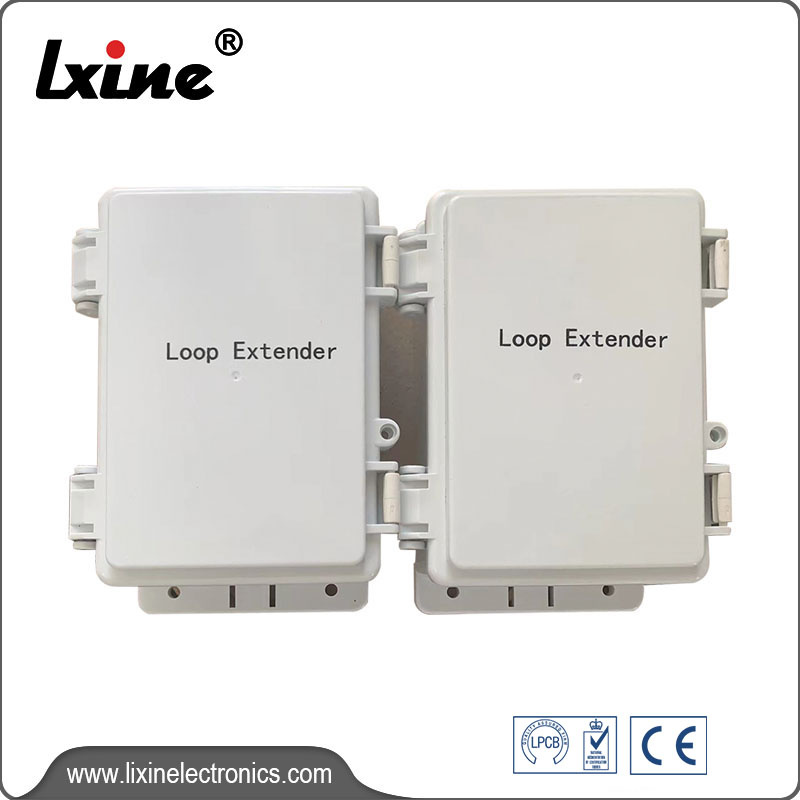

LX-ZJH60206021 Loop Extender
FEATURE
▪ Bus nonpolar connection;
▪ Increase the bus voltage and extend the bus communication distance;
▪ With output short circuit detection function;
▪ Up to 255 devices can be attached;
▪ Wall-mounted structure, convenient and reliable installation.
DETAILS
LX-ZJH6020 loop extender (hereinafter referred to as repeater) uses AC220V for power supply and is equipped with spare battery. The electrical isolation between the input and output of the bus signal can enhance the anti-interference ability of the whole system and has the function of extending the communication distance of the detector bus.
Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
main power supply |
AC220V/ rated working voltage AC220V Standby power supply: lithium battery 7.4V/3400MAh |
|
Output capacity |
800mA |
|
Load capacity and compatibility |
1 ~ 255 bus devices can be connected,compatible with all detector bus devices. |
|
Bus extension distance |
1000m |
|
Loop impedance |
≤40Ω |
|
Environment |
Temperature: 0℃ ~+55℃ Relative humidity ≤95%, no condensation |
|
Overall dimension |
196mm×110mm×75mm |
|
Shell material and color |
ABS, china white |
|
Weight |
about 600g |
