Brief Introduction:

Lixine Emergency Lighting Central Monitoring System is designed to test, maintain and manage independent powering emgergency lights and stand- alone exit sign light . Capabel of automatic testing, data analysis and result judgment, this system improves the maintainability of emergency lights, thus increasing their reliability.

Features：

1. User-Friendly

- Housed in a robust metal case with a 7-inch colorful touch screen for an intuitive and interactive user experience.

2. Automated Testing and Inspection

Controlled by sound and light, the integrated controller automatically conducts real-time and efficient testing and inspection of operating states and faults of emergency lights. Events will be recorded and history can be retrieved.

3. Event Logging and History Viewing

Logs are displayed in real-time, and historical events can be easily viewed on the screen or imported into a computer for comprehensive analysis.

4. Timed Automatic Testing

Scheduled automated testing ensures that emergency functions are regularly evaluated, providing continuous peace of mind.

5. Timed Battery Maintenance

Timed battery maintenance functionality optimizes battery life by implementing charging and discharging cycles at specified intervals.

6. Simple Layout Low Cost

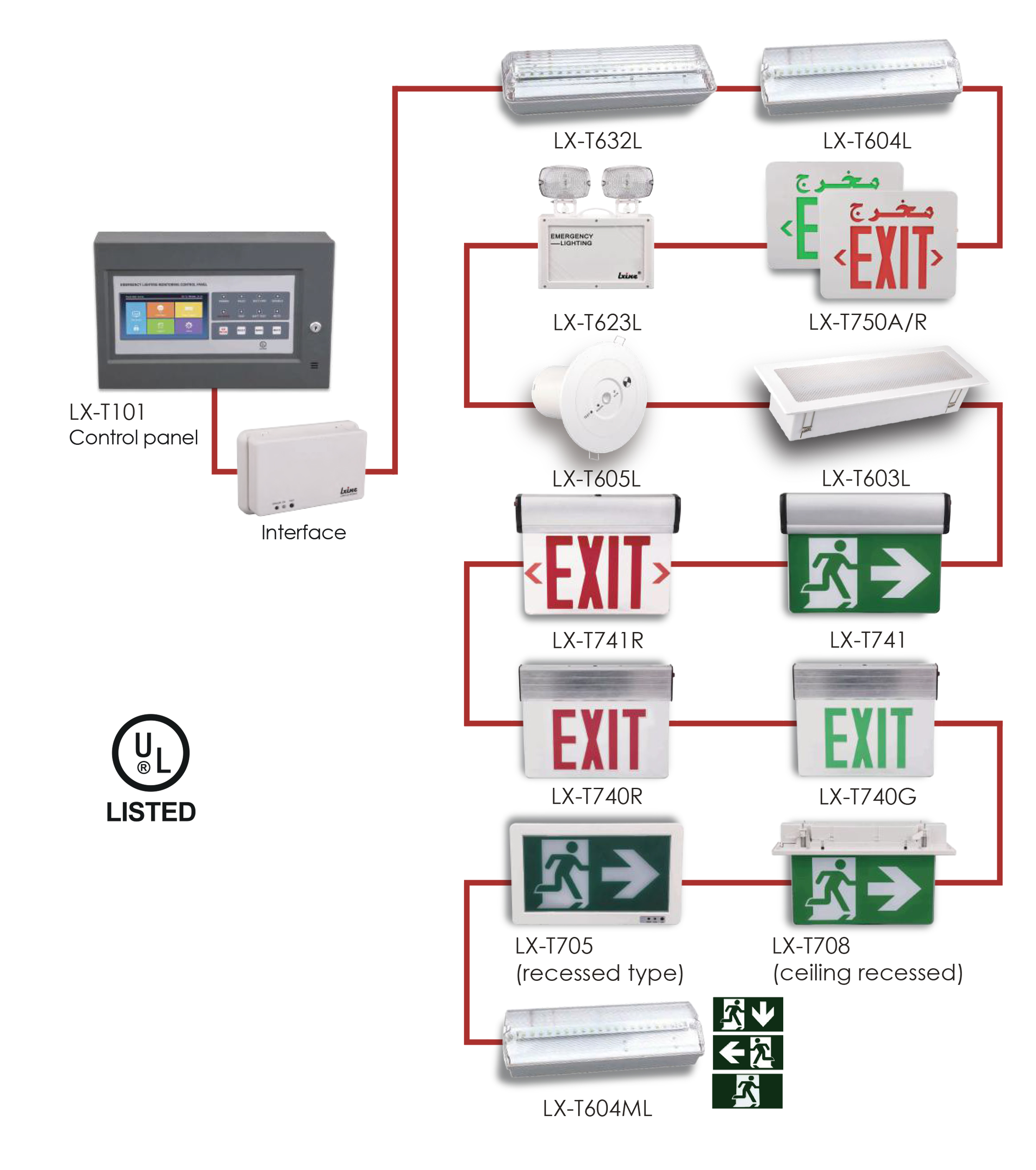

Emergency Lighting Monitoring Control Panel and interfaces are connected by CAN bus. The interface and its subordinate devices are connected by RS485 bus, keeping the layout simple and cost-effective.

7. Scalability and Connectivity with High Capacity

Can connect many independent lighting fixtures .Maximum 64 interfaces within a system, with each connecting up to 254 devices, Up to 16256 pcs individual lights can be connected.

8. Fast Response

The emergency state will be triggered when external fire signals are received by the controller, ensuring a swift and effective response.

 Benefits:

- Reliability:Enhances the reliability of emergency lights through automated testing and timely maintenance.

- User-Friendly:The 7-inch touch screen and intuitive controls make the system easy to operate.

- Cost-Effective: Streamlined connectivity reduces installation costs, making it an economical solution.

- Meet multiple needs: Installation and connection methods can be selected according to different scales.

Small-scale systems treat a single building as a unit; Large systems with wide coverage, such as large supermarkets and shopping malls; Remote systems can connect multiple buildings. You can select the system type as required.



Our Emergency Lighting Central Monitoring System ensures your emergency lighting is always ready to perform when needed, offering a comprehensive and user-friendly solution for critical scenarios.
