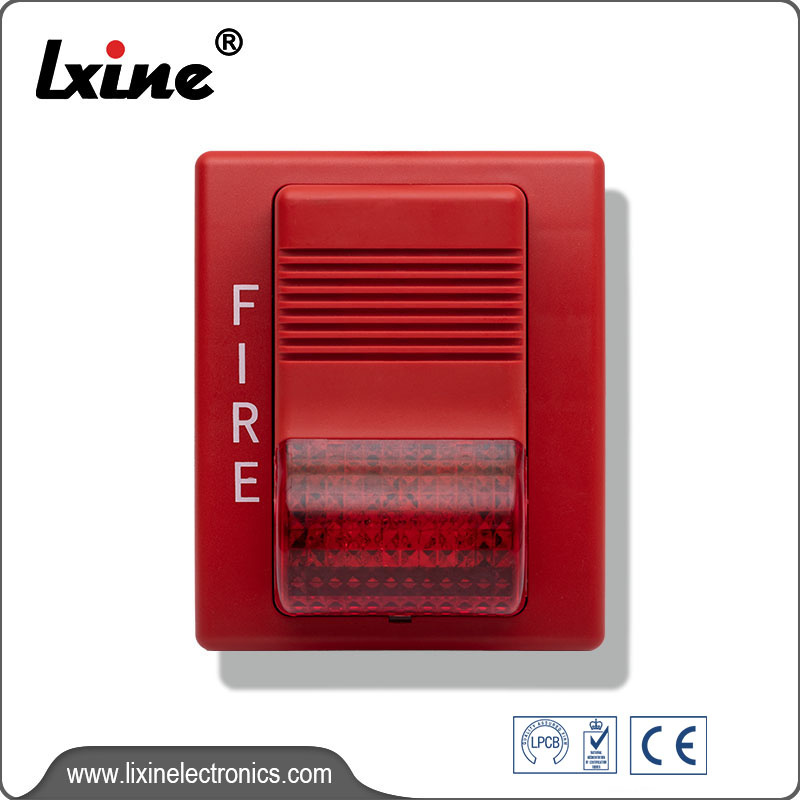

LX-SG 5270 Addressable Sounder Strobe (loop powered)

Short Description:


Product Detail

Product Tags

FEATURE

LX-SG 5270

▪Adopt two-bus system: two-bus without polarity signal.

▪Built-in microprocessor, with intelligent judgment ability.

▪ The address is set through electronic coding, and there is no dial switch, which increases the airtight property in structure.

▪With self-diagnosis function to ensure its reliable operation.

▪ The status signal value can be provided, which intuitively reflects the current working status of the sounder strobe.

▪Multi-level filtering with software and hardware can effectively suppress interference signals.

▪ When the sounder strobe is activated, it can emit strong light and produce a harsh alarm sound.

▪The appearance design is beautiful, the installation and wiring are convenient and reliable.

EN54-3 CERTIFIED

2.1rz

Specifications

TECHNICAL SPECIFICATIONS

Signal bus voltage

Bus 24V (17V~28V)

Operating current

Monitoring current: ≤ 0.2mA;Bus start alarm current: ≤ 4mA

Operating Environment

Temperature:-10℃~+55℃;Relative Humidity:≤95% non-condensing

Main sound frequency

1.67KHZ~5.9KHZ

Pitch shift periodic

3.5s~4.5s

Ingress protection rating

IP21C

Material and color

ABS, milky white

Weight

110g

Mounting hole distance

60mm

Dimension(L×W×H)

140mm*115mm*55mm
