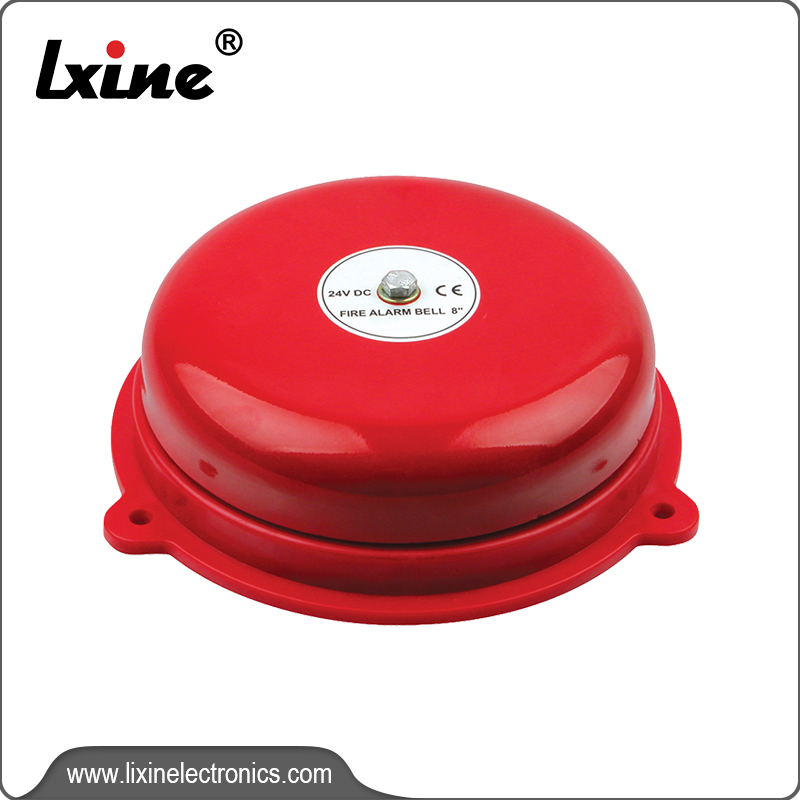

Conventional 8 inch size fire alarm ring LX-904-8”

Conventional 8 inch size fire alarm ring LX-904-8” Featured Image
  • Conventional 8 inch size fire alarm ring LX-904-8”
  • Conventional 8 inch size fire alarm ring LX-904-8”

Short Description:

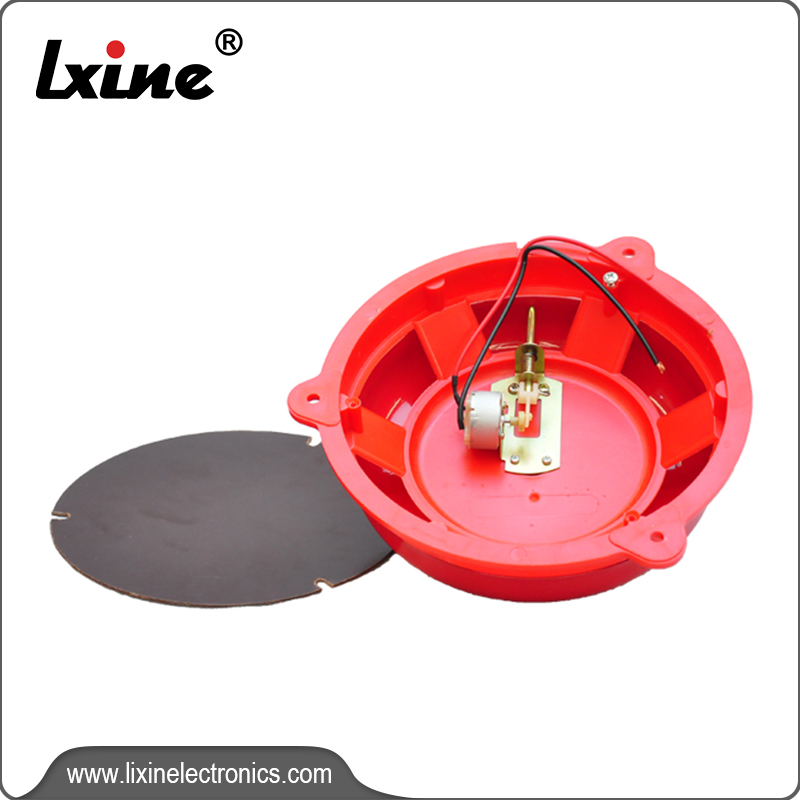

This is a motorised fire alarm bell which is connected with main controller.When the main controller receives signal of a fire, the fire alarm bell will sound continuous alarm to remind people escape from the fire.It is in 8 inch middle size with minimum decibel up to 90db/1m.Because of its powerful alarm function, the fire alarm ring is suitable for installation at home, school,hotel,office,restaurant,etc.

The metal shell with coating is waterproof and wear resistance.It can be used for long time.

*Size:dia.203mm(8 inch)

*Rated Voltage:24V DC+/-5%

* Operating current should not be more than 23mA

*Sound level: ＞90dB

* Working temperature: -10℃ to+50℃

*Working humidity: ≤95%RH


Product Detail

Product Tags

Regular Info

Model: LX-904-8'' MOQ： 500PCS
lead time： Regular 25working days
since deposit is received 		Payment： T/T
Brand Name： LXINE Price Term： FOB /CNF /CIF
Sample Lead Time： 5 working days after sample cost arrival Guarantee： Regular 2 years guarantee
under normal operation



Packing Data

Item No. QTY/CTN CARTON SIZE QTY/20GP
LX-904(8inch) 20pcs 47x41x52cm 5580pcs



Technical Parameters

1. Operating voltage: 24VDC±5% (no pole)

2. Operating current: ≤23mA

3. Sound level: ＞90dB

4. Product size: φ203mm (8 inch)

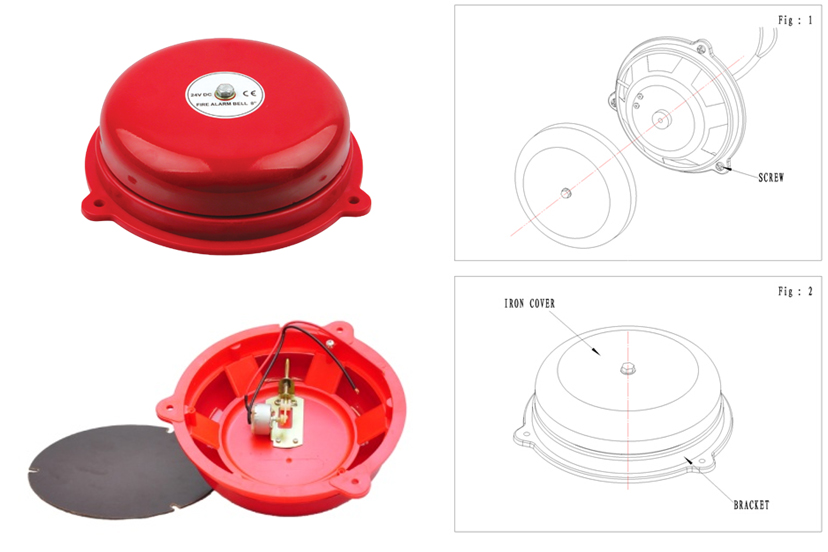

Parts Description

asd
